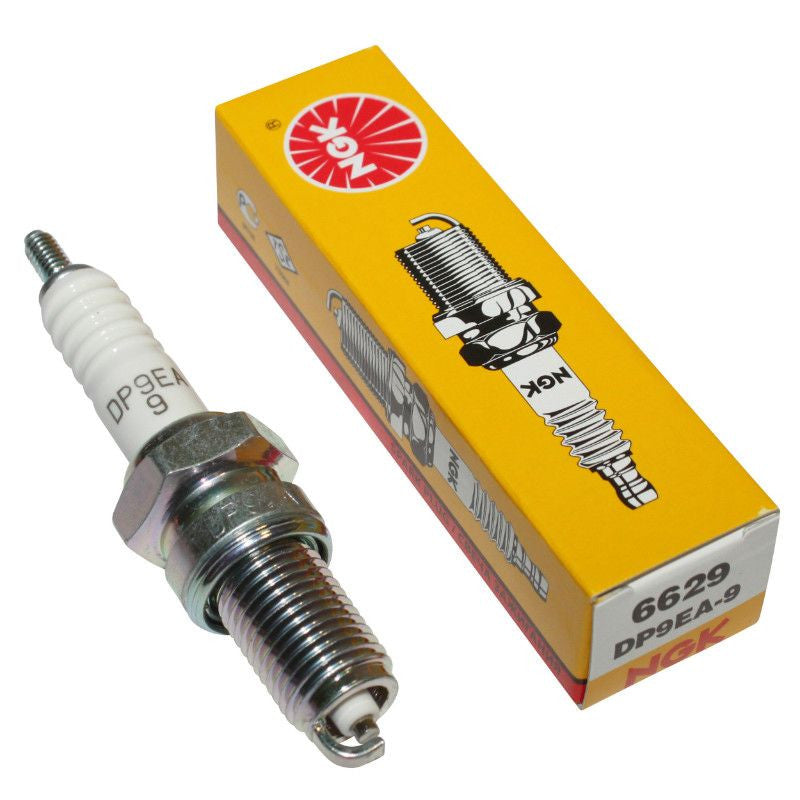

NGK SPARK PLUG DP9EA-9 6629

NGK Spark Plug - DP9EA9

Product Features:

• NGK’s wide heat range results from using copper wire instead of the iron cores found in many conventional plugs.
• Copper dissipates heat quicker, cooling the electrode and insulator tip.
• Raised pre-ignition rating with high-conduction copper and long nose insulator.
• Meets the requirements of high-performance engines.
• Sold individually.

Specifications:

• Heat Range: 9
• Thread Size: 12 mm
• Type: Non-Resistor
• Units: Each
• Weight: 0.12 lbs
• Alternate/OEM Part Numbers: 6629, DP9EA9

Compatible Vehicles:

Kawasaki Models:

• EX305B GPz: 1983
• ZX550A GPz: 1985

KTM Models:

• 600 LC4: 1992

Suzuki Models:

• SP600: 1985

Part Number: 37-DP9EA-9 (oro2u.com)

NGK Traditional Spark Plug Details

Key Features:

• Constructed for longer life and optimum performance.
• Corrugated ribs prevent flashover.
• NGK uses pure alumina silicate ceramic insulators, providing greater strength and better heat transfer.
• Copper core aids in heat removal and improves durability.
• Triple sealed to prevent interior leakage.

Plug Specifications:

• Thread Size: 12 mm
• Reach: 19 mm (3/4")
• Hex Size: 11/16" (18 mm)
• Seat Type: Gasket
• Type: Non-Resistor
• Terminal Type: Stud Threads
• Projected Tip: Yes
• Gap: .035" (0.9 mm)
• Heat Range: 9
• Note: Does not include terminal nut. If necessary, order part #067606-0051.
