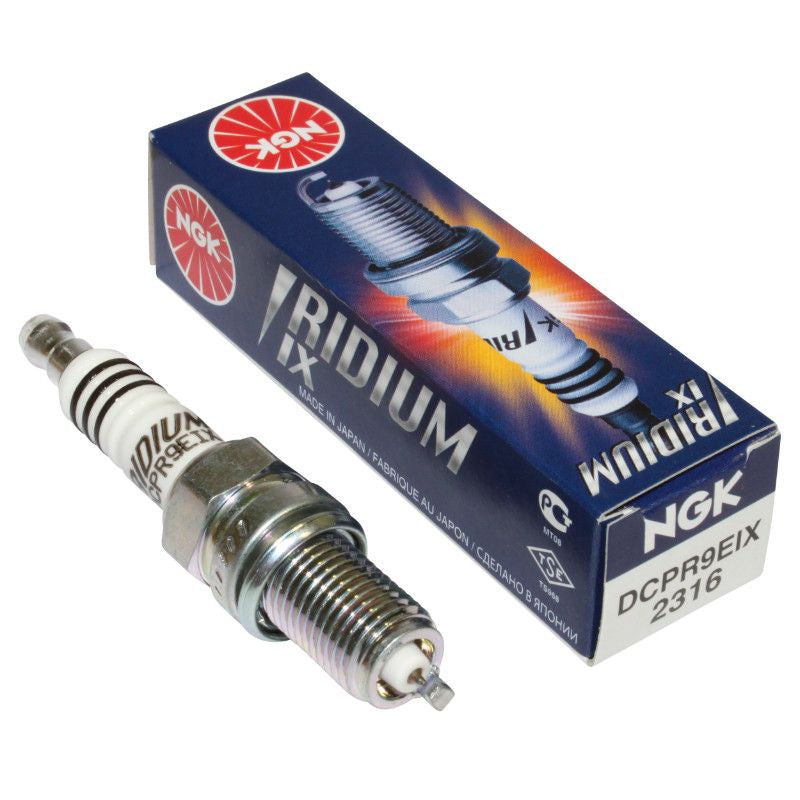

NGK SPARK PLUG DCPR9EIX 2316, NG2316

NGK Iridium IX Spark Plug - DCPR9EIX

Product Features:

• Revolutionizing spark plug technology and performance by the industry leader.

Highly Advanced Iridium Electrode:

• 25% smaller than platinum electrodes.
• 1/4 the size of conventional nickel electrodes.

Ultra-Small Diameter Center Electrode:

• Reduces voltage requirements.
• Extends ignition system life.

• Metal shell plating with enhanced anti-corrosion properties.
• Sold individually.

Specifications:

• Heat Range: 9
• Thread Size: 12 mm
• Type: Resistor
• Units: Each
• Weight: 0.05 lbs

Alternate/OEM Part Numbers:

• 21030065
• 2316

Compatible Vehicles:

Can-Am Models:

• DS 450: 2008, 2009, 2010, 2011, 2012.
• DS 450 X: 2008.
• DS 450 X-MX: 2009, 2010, 2011, 2012.
• DS 450 X-XC: 2009, 2010, 2011, 2012.

Ducati Models:

• Monster S4R: 2004, 2005, 2006, 2007.

Part Number: 37-DCPR9EIX (oro2u.com).

NGK 2316 DCPR9EIX Single Iridium Spark Plug

Key Features:

• Designed specifically for performance enthusiasts.
• Fine Wire Center Electrode: Ensures high durability and a consistently stable spark.

Iridium Alloy:

• Extremely high melting point.
• Perfect for high-tech, high-performance engines.
• Trivalent Metal Plating: Provides superior anti-corrosion and anti-seizing properties.

Additional Features:

• Corrugated ribs prevent flashover.
• Pure alumina silicate ceramic insulator for superior strength and better heat transfer.
• Copper core aids in heat removal.
• Triple seals prevent leakage.

Plug Specifications:

• Thread Size: 12 mm
• Hex Size: 5/8" (16 mm)
• Reach: 19 mm (3/4")
• Seat Type: Gasket
• Gap: .032" (0.8 mm)
• Heat Range: 9
• Terminal Type: Solid
