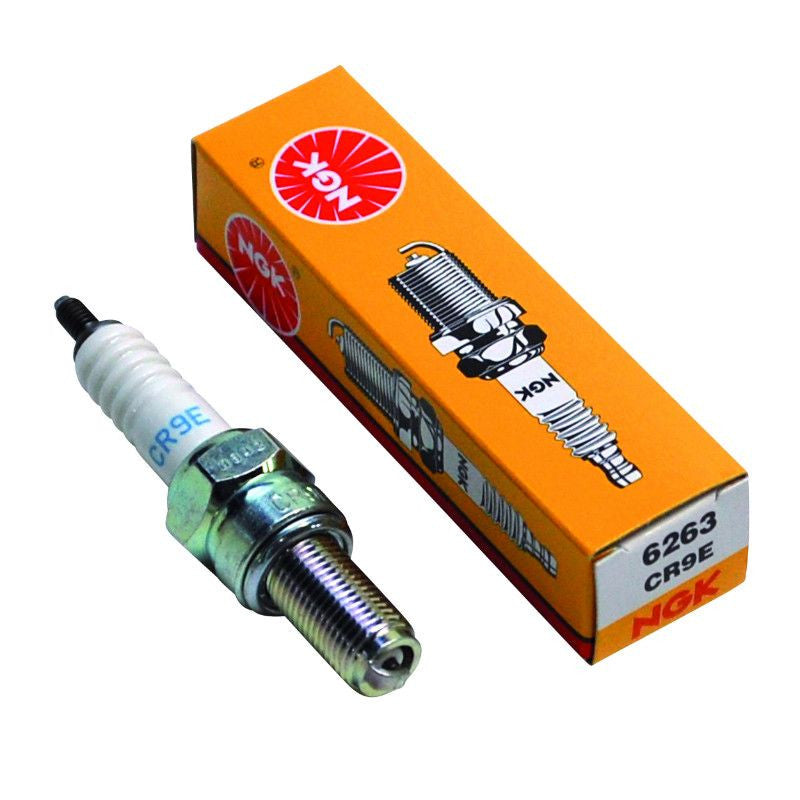

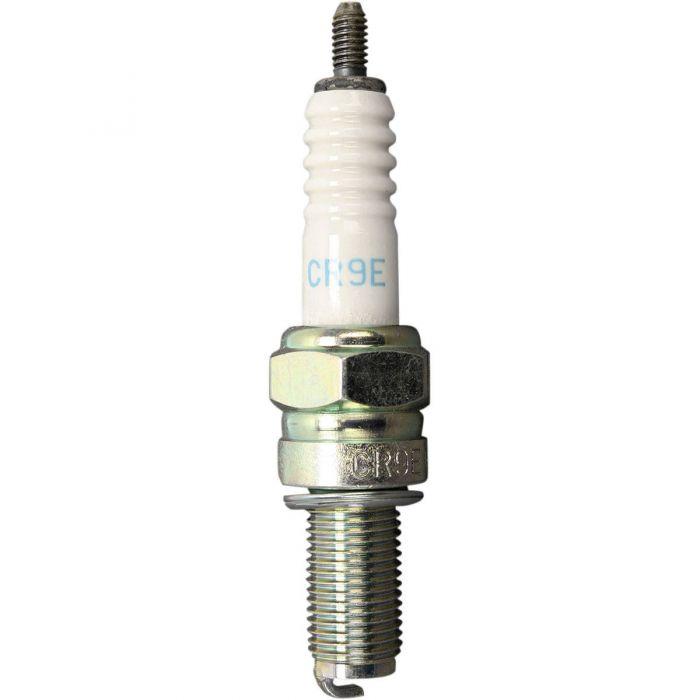

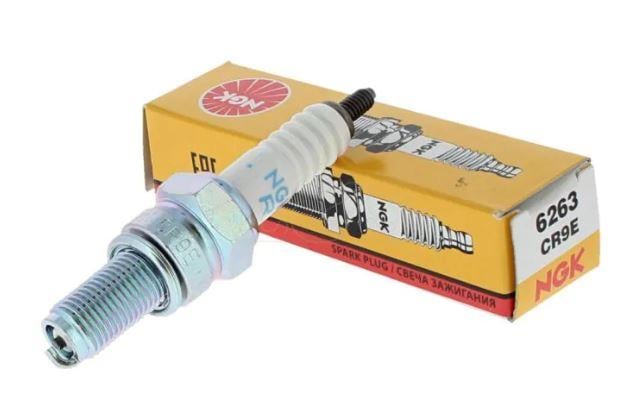

NGK Spark Plug CR9E 6263, NG6263

NGK Spark Plug - CR9E

Key Features:

• Copper Core: The CR9E spark plug uses copper wire to dissipate heat more effectively, cooling the electrode and insulator tip quickly. This helps prevent overheating and extends plug life.
• Raised Pre-Ignition Rating: With high-conduction copper and a long nose insulator, the plug improves heat distribution, reducing the risk of pre-ignition in high-performance engines.
• High-Performance Engine Compatibility: Designed to meet the rigorous demands of high-performance engines, ensuring maximum efficiency and performance.

Specifications:

• Heat Range: 9
• Thread Size: 10mm
• Type: Resistor
• Units: Sold individually
• Weight: 0.12 lbs
• Alternate/OEM Part Numbers: 6263, CR9E

Construction:

• Ceramic Insulator: NGK uses the highest-quality alumina silicate in the ceramic insulator, ensuring superior strength and better heat transfer.
• Triple Seals: Prevents leakage and ensures better heat removal.
• Copper Core: Aids in efficient heat removal, making the plug more durable under high-temperature conditions.
• Corrugated Ribs: Help prevent flashover, ensuring a stable spark.

Applications:

The NGK CR9E Spark Plug is ideal for a wide range of motorcycles, ATVs, and other high-performance engines. Some key applications include:

• Aprilia: Mojito 125 (2003-2005)
• Arctic Cat: Bearcat 7000 XT (2015-2018), Pantera 7000 (2015-2018)
• Kawasaki: ZX600E Ninja ZX-6 (1993-2008), ZX600F Ninja ZX-6R (1995-2007)
• Suzuki: GSX1300R Hayabusa (1999-2012), GSX-R1000 (2001-2006)

Benefits:

• Improved Ignition: The high-conduction copper core and long nose insulator provide better heat dissipation, reducing the risk of pre-ignition in high-performance engines.
• Enhanced Durability: The copper core design, combined with advanced ceramic and triple-sealed construction, ensures the spark plug can handle the heat and stress of high-performance applications for longer periods.
• Optimized Performance: The CR9E is perfect for engines that require reliable performance and durability under high stress and heat conditions.

Plug Construction:

• Hex Size: 5/8" (16mm)
• Seat Type: Gasket
• Gap: 0.028" (0.7mm)
• Terminal Type: Threaded Stud
• Resistor: Yes

The NGK CR9E Spark Plug offers a perfect combination of reliability, durability, and performance for high-performance engines. It is an excellent choice for a wide range of motorcycles and ATVs, particularly those requiring efficient heat management and stable spark performance.
