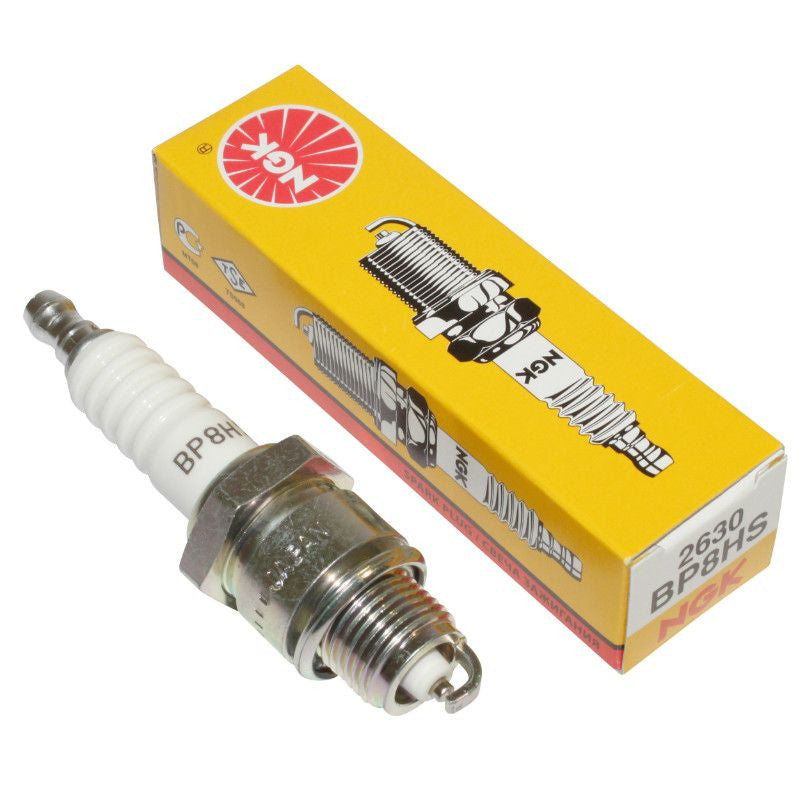

NGK SPARK PLUG BP8HS 2630

NGK Copper Core Spark Plug - BP8HS (2630)

Specifications:

• Reach: 12.7 mm (1/2")
• Terminal Type: M4 Thread
• Diameter: 14 mm
• Seal Type: Gasket Seat
• Electrode Material: Standard Nickel
• Projection Type: Projected
• Pack Size: 1 Single Unit
• Resistor: No
• Tip Configuration: Single Electrode
• Hex Spanner Size: 20.8 mm (13/16")

Part Number: BP8HS (oro2u.com)

Details:

• NGK 2630 BP8HS Nickel Spark Plug: Designed for Yamaha DT80MXS (1986–1987).
• Constructed for longer life and optimum performance.

Features:

• Trivalent Metal Plating: Provides superior anti-corrosion and anti-seizing properties.
• Corrugated Ribs: Prevent flashover.
• Pure Alumina Silicate Ceramic Insulator: Provides superior strength and better heat transfer.
• Copper Core: Aids in heat removal.
• Triple Seals: Prevent leakage.

Plug Specifications:

• Thread Size: 14 mm
• Hex Size: 13/16" (20.6 mm)
• Reach: 12.7 mm (1/2")
• Seat Type: Gasket
• Gap: .028" (0.7 mm)
• Heat Range: 8
• Terminal Type: Removable Nut
• Resistor: No
• Overall Height: JIS
