Maverick X3 Secondary Clutch 420280626

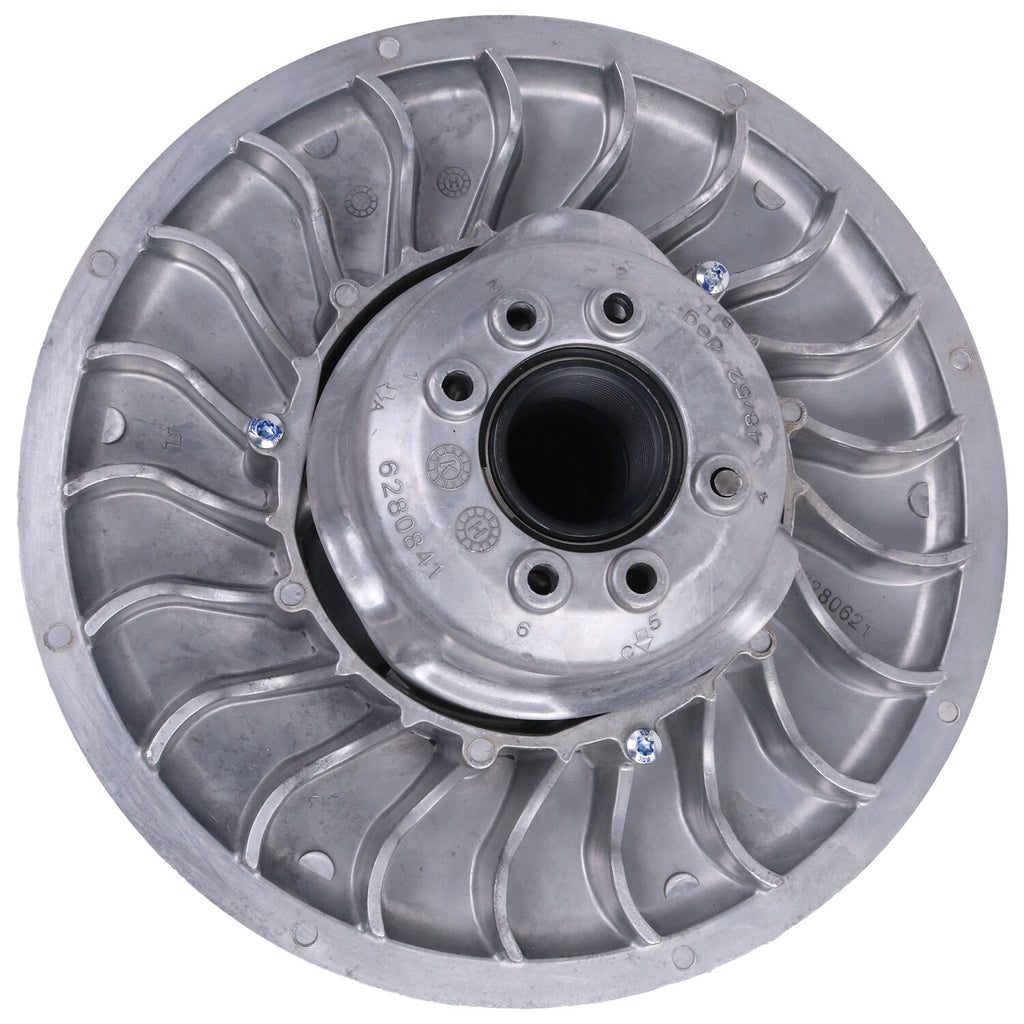

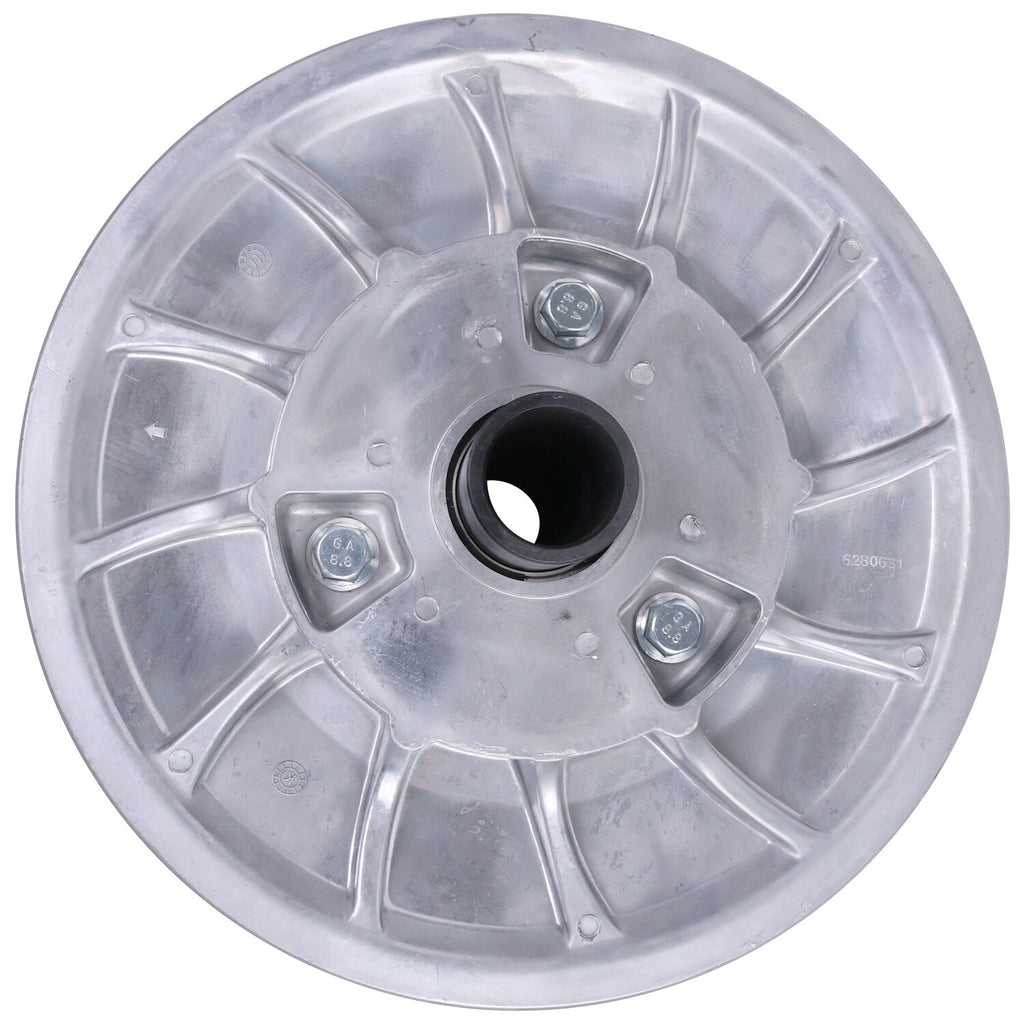

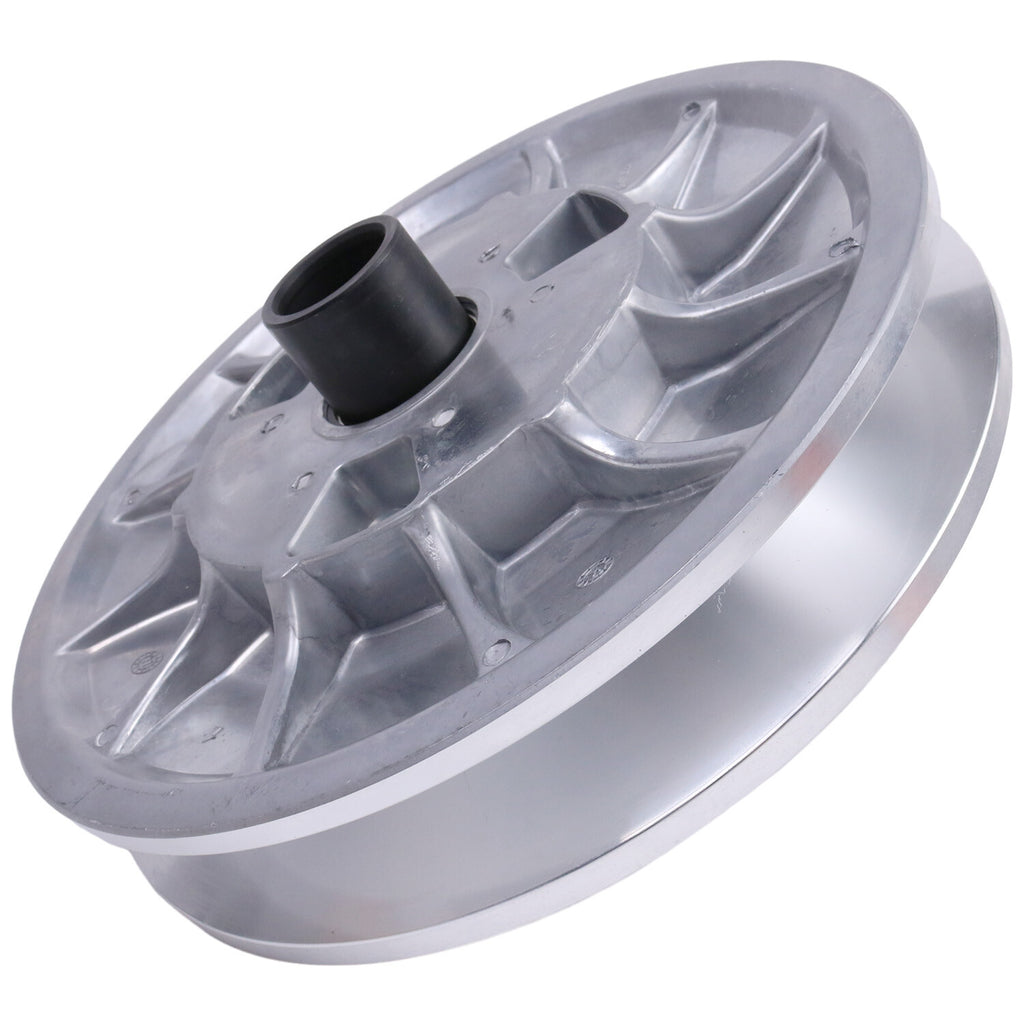

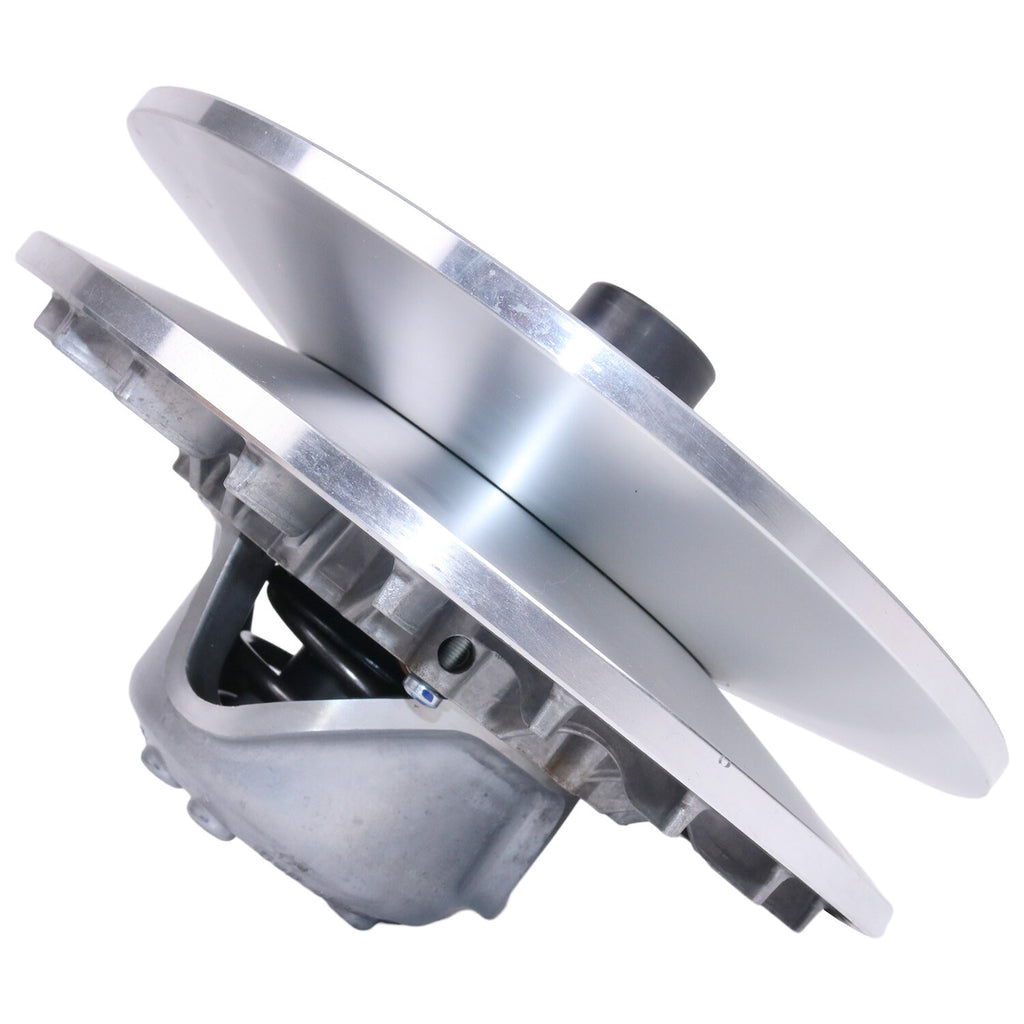

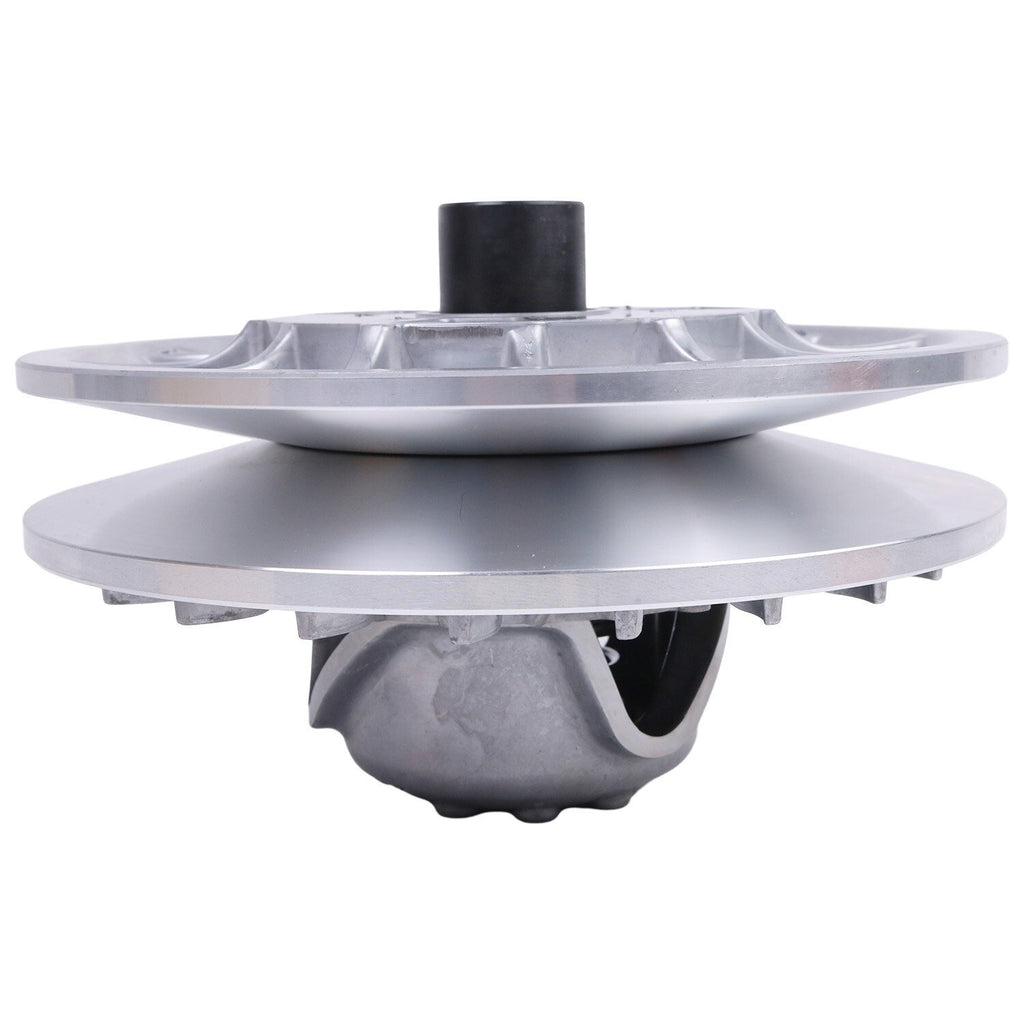

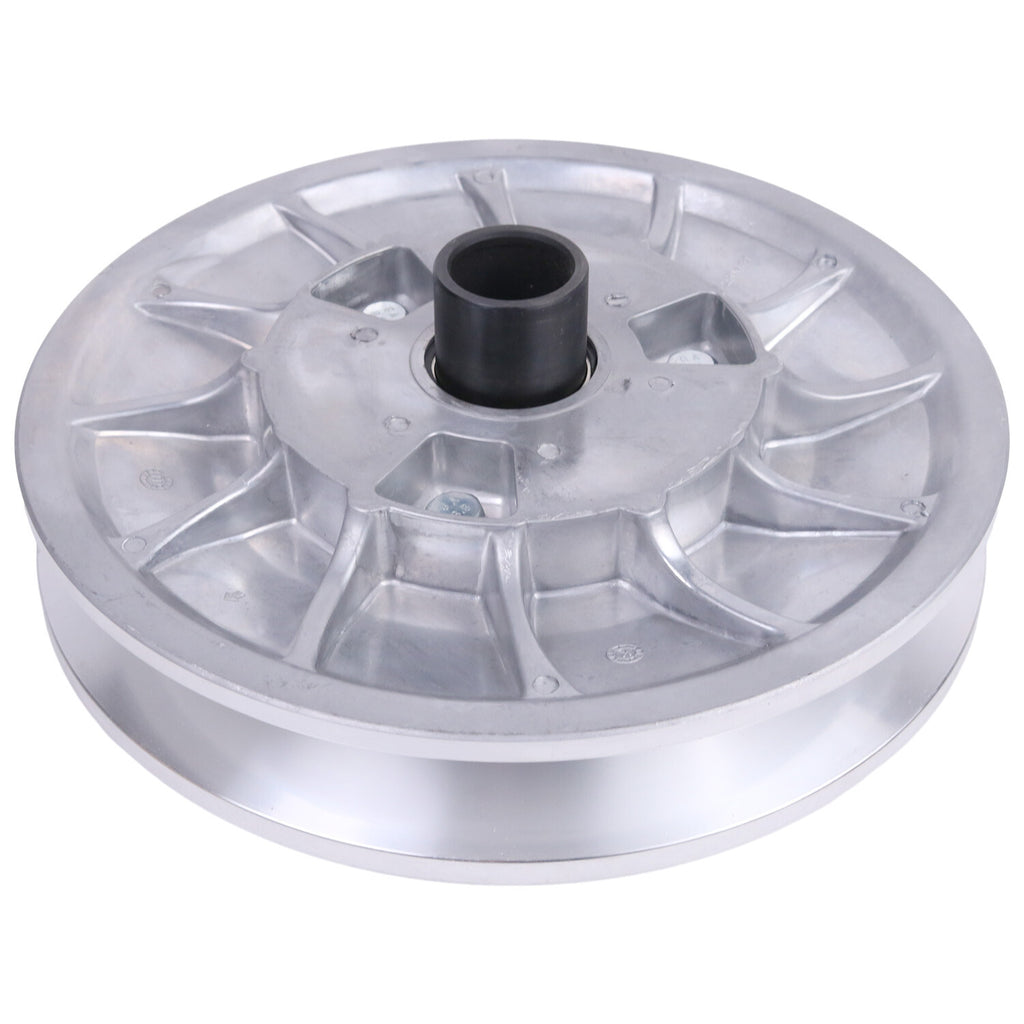

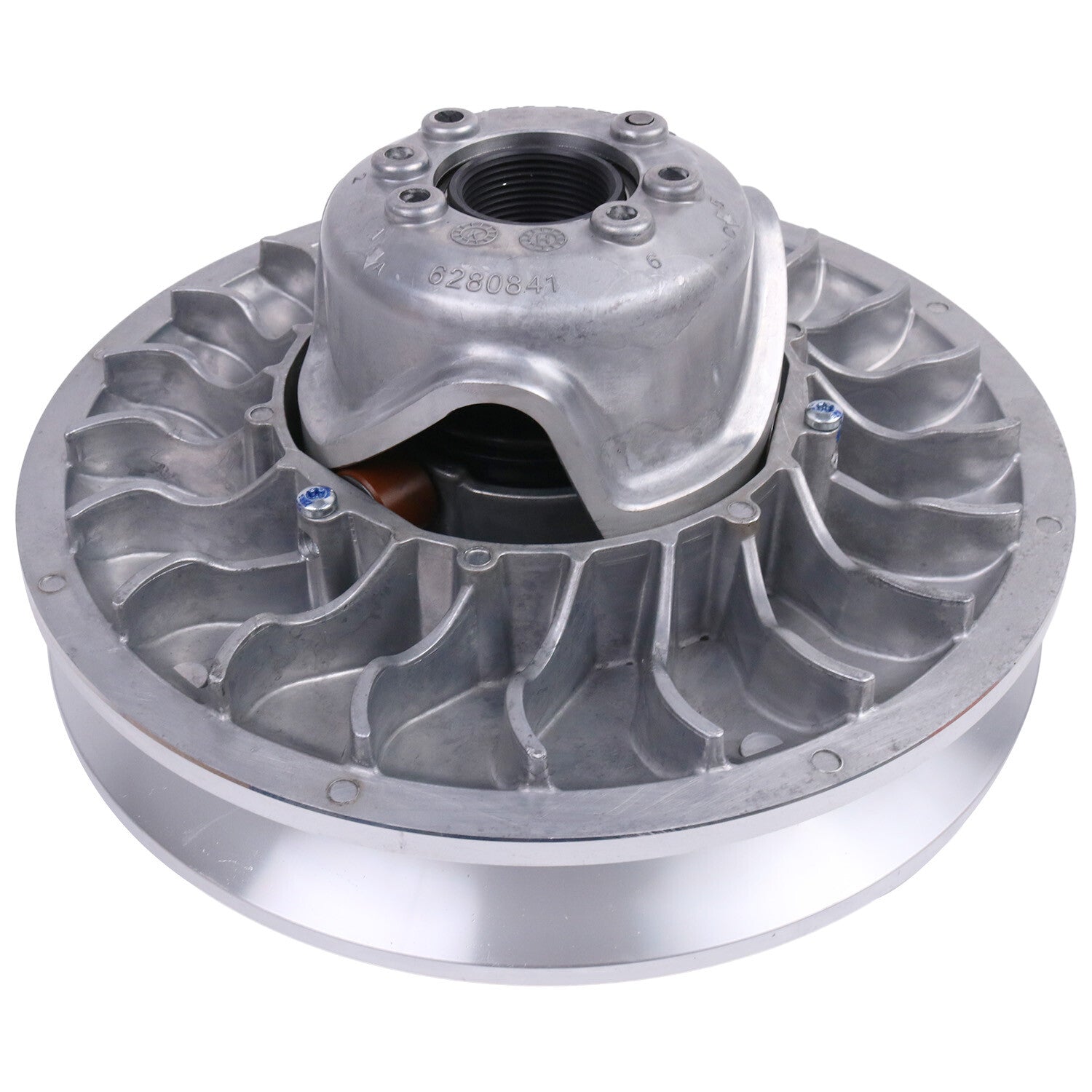

This is the complete driven (secondary) clutch assembly for Can-Am Maverick X3 CVT systems. It is supplied as a ready-to-install assembly and uses the genuine fixed outer half pulley (fixed flange) OEM 420280626 within the unit.

Features

• Complete secondary clutch (driven pulley) supplied pre-assembled
• Includes fixed outer half pulley, sliding pulley, cam (helix), spring, rollers and pins
• Direct OEM geometry for correct belt ratio control and back-shift
• One assembly required per vehicle

Specifications

• OEM complete assembly number: 420686738 (Driven Pulley)
• Included fixed outer half pulley (fixed flange): 420280626
• Included sliding pulley (movable sheave): 420280636
• Cam (helix) used by application: 420280706 (37/50) or 420280846 (48/52)
• Secondary spring used by application: 420638124 (Turbo/Turbo R) or 420638126 (Turbo RR)
• Rollers: 417127016 (three required)
• Roller pin: 420629192
• CVT position: Driven (secondary) clutch
• Quantity per vehicle: 1

Cross-Reference OEM Part Numbers

• 420686738 – Driven Pulley (complete secondary clutch assembly)
• 420280626 – Outer Half Pulley Ass’y (fixed flange), secondary clutch
• 420280636 – Sliding Pulley Ass’y (movable sheave), secondary clutch
• 420280706 – Cam 37/50 Ass’y
• 420280846 – Cam 48/52 Ass’y
• 420638124 – Compression Spring (Turbo/Turbo R applications)
• 420638126 – Compression Spring (Turbo RR applications)
• 417127016 – Pulley Roller
• 420629192 – Roller Pin
• 422280652 – Drive Belt (commonly paired across Maverick X3 turbo models; belt not included)

Vehicle Fitments

• Maverick X3 Turbo (all packages including DS, RS, X mr, X rc and MAX): 2017–2019
• Maverick X3 Turbo R (all packages including DS, RS, X mr, X rc and MAX): 2018–2021
• Maverick X3 Turbo RR (all packages including DS/RS, X ds, X rs [including Smart-Shox], X rc 64/72, X mr 64/72 and corresponding MAX variants): 2020–2024
