MASTER CYLINDER CLUTCH LEVER 7/8 22mm KTM 250 300 350 400 450 500 525 530 EXC EXCF SX SXF

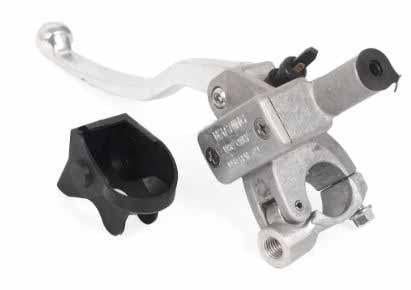

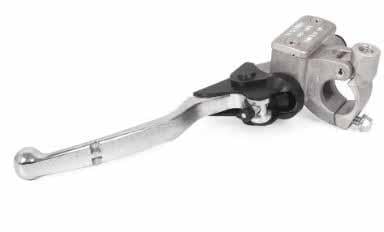

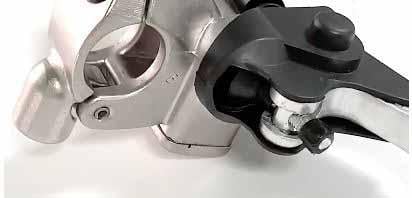

This 7/8" (22mm) universal left-hand hydraulic master cylinder clutch lever is designed for motorcycles, ATVs, and dirt or pit bikes using a mineral-oil-based hydraulic system. It offers compatibility with a broad range of models and includes standard dimensions to match OEM specifications.

Features

• Constructed from aluminium alloy using forged steel die pressing
• Direct OEM replacement with standard fit and function
• Compatible with 7/8" (22mm) handlebars
• Includes 10mm banjo bolt and 10mm / 1.25 pitch mirror mounting hole (clockwise)
• Designed for mineral oil hydraulic systems
• Meets or exceeds OEM quality
• Suitable for motorcycles, dirt bikes, pit bikes, and ATVs

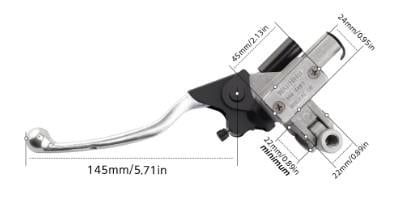

Specifications

• Handlebar Size: 7/8" (22mm)
• Banjo Bolt: 10mm
• Piston Diameter: 9.3mm
• Cylinder Diameter: 9.8mm
• Material: Aluminium Alloy
• Installation Location: Left
• Net Weight: 225g
• Mirror Mounting Hole: 10mm / 1.25 pitch (clockwise)
• Specified Hydraulic Oil: Mineral Oil

Cross-Reference OEM Part Numbers

• 50302030200 (Magura)
• 50302030300 (Magura)
• 25002030044 (Magura)
• 25002130044 (Magura)
• 54802030044 (Brembo)
• 54802030144 (Brembo)
• 79202030044 (Brembo)

Vehicle Fitments
Husqvarna

• FC 250/350/450 (2014–2024)
• FE 250/350/450/501 (2013–2021)
• FE 350S/501S (2015–2021)
• FR 450 (2017–2023)
• FS 450 (2015–2024)
• FX 350/450 (2017–2024)
• TC 125/250 (2014–2024)
• TE 125 (2014–2016)
• TE 150 (2017–2021)
• TE 250/300 (2011–2021)
• TX 125 (2017–2019)
• TX 300 (2017–2024)

GasGas

• MC 125 (2021–2023)
• MC 250 (2022–2023)
• MC 250F (2021–2022)
• MC 350F (2022–2023)
• MC 450F (2021–2023)
• EX 250 (2022–2023)
• EX 250F (2021–2024)
• EX 300 (2021–2023)
• EX 350F (2021–2024)
• EX 450F (2021–2023)

KTM

• 250 XC-W (2006–2016)
• 250 SX (2006–2016)
• 250 SX-F (2006–2016)
• 250 XCF-W (2006–2016)
• 300 EXC (2006–2016)
• 300 EXC SIX DAYS (2006–2016)
• 300 XC (2006–2016)
• 300 XC-W (2006–2016)
• 300 XC-W SIX DAYS (2014–2016)
• 350 EXC-F (2012–2016)
• 350 EXC SIX DAYS (2009–2016)
• 350 SX-F (2011–2015)
• 350 XCF-W (2006–2016)
• 350 XC-F (2011–2015)
• 400 XC-W (2009–2010)
• 400 EXC (2009–2011)
• 450 ECX (2007–2011)
• 450 XC-W (2009–2011)
• 450 XC-F (2013–2015)
• 450 EXC SIX DAYS (2009–2016)
• 500 EXC SIX DAYS (2014–2016)
• 525 EXC (2007–2011)
• 530 EXC (2007–2011)
• 530 EXC SIX DAYS (2009–2011)
• 530 XC-W (2009–2010)
