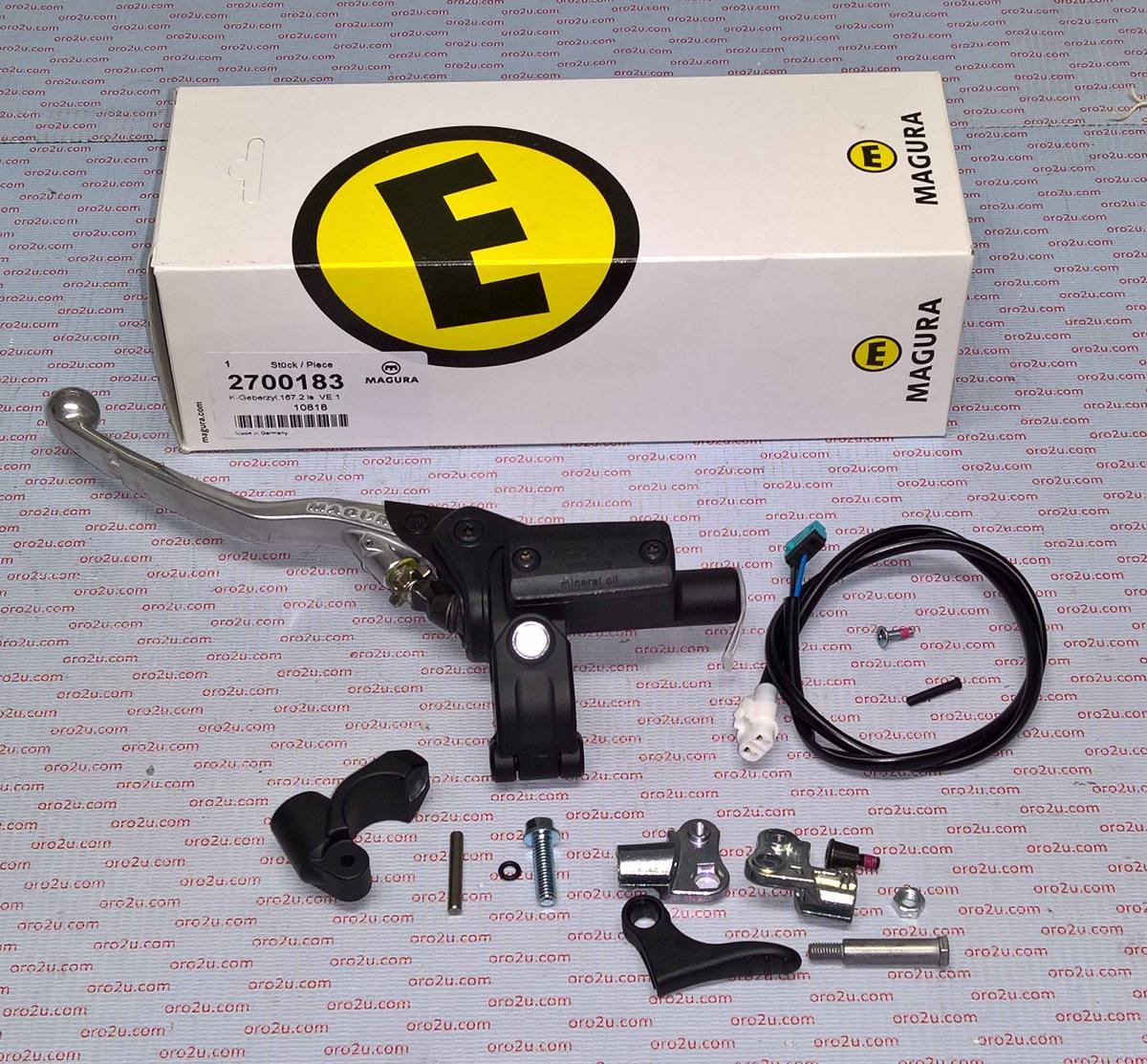

MAGURA HYDRAULIC CLUTCH 9.50, 2700183 ASSEMBLY SERIE 167, 2700177 / 0723189 / 0723187

KTM Exc 125 2009,
KTM SX 125 2008 - 2011,

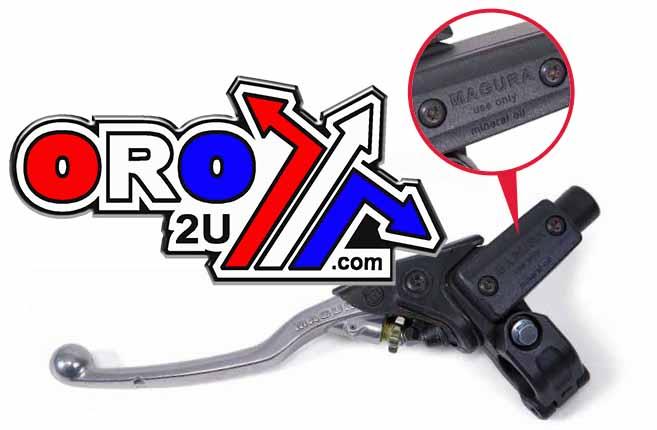

MAGURA 167 CLUTCH MASTER CYLINDER UNIVERSAL 9.5mm
[Use only mineral oil]

Off Road Master Cylinder| Piston dia. 9.5mm | Supplied with additional decompression lever | Mineral oil only | One piece aluminium cylinder with reservoir | Max stroke 13.8mm

| Lever ratio 1:4 | Tubing fitting M10x1 | Black body with silver lever blade 146mm | includes optional mirror mounting bracket and switch
MAGURA 2700183 / 2700177 / 0723189 / 0723187

Advantages: - No fading. - Super fine clutch control.

- Up to 20% less actuating force required.
- Almost maintenance-free.
- Clutch plate wear automatically compensated.
- Easy to fit.

Part No. 13-793.M8 (oro2u.com)
