LIFAN 125CC PIT BIKE ENGINE MANUAL, COMPLETE RUNNING ENGINE PACKAGE, CARB & ELECTRICS INCLUDED

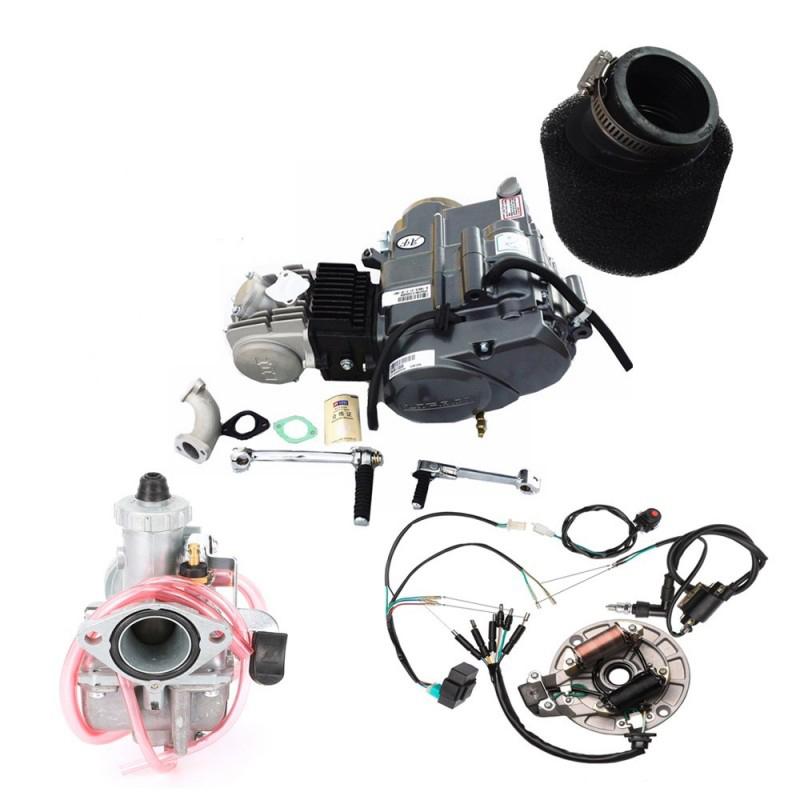

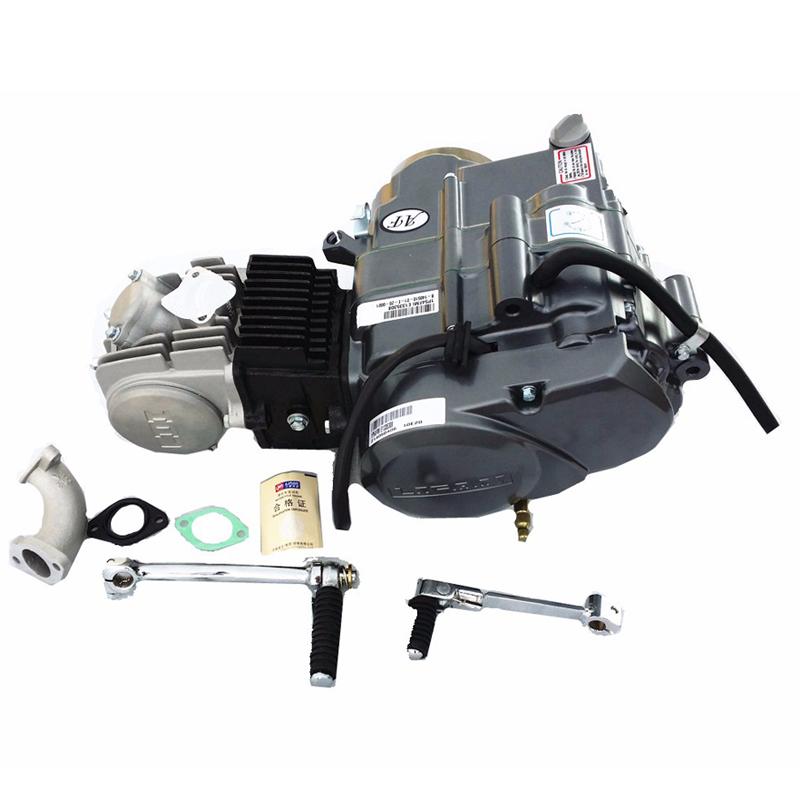

LIFAN 125CC PIT BIKE/MONKEY BIKE ENGINE

Includes:

• Kick start
• Gear Lever

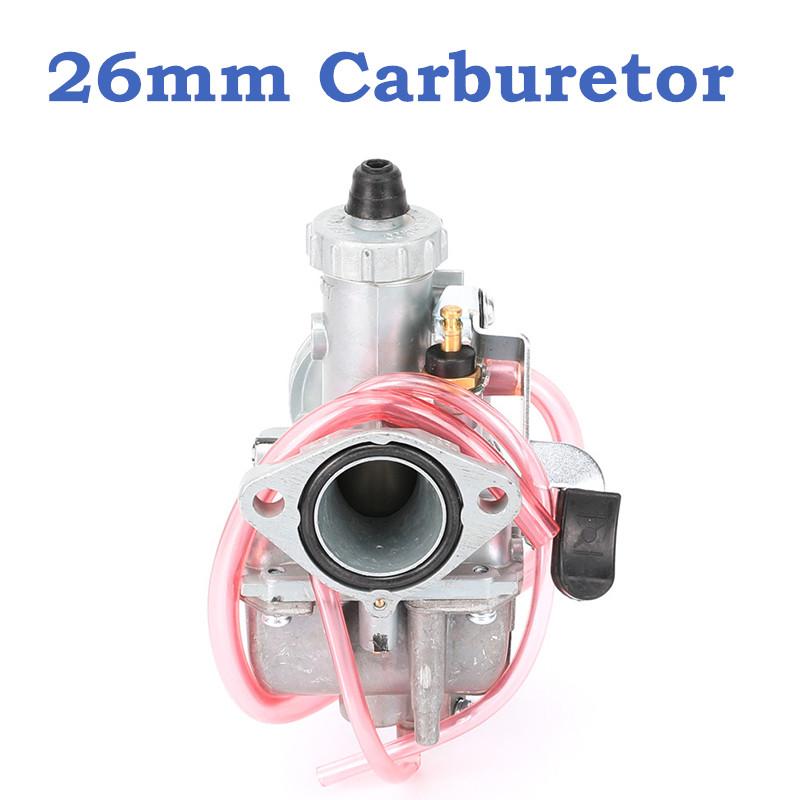

• Carb & Manifold

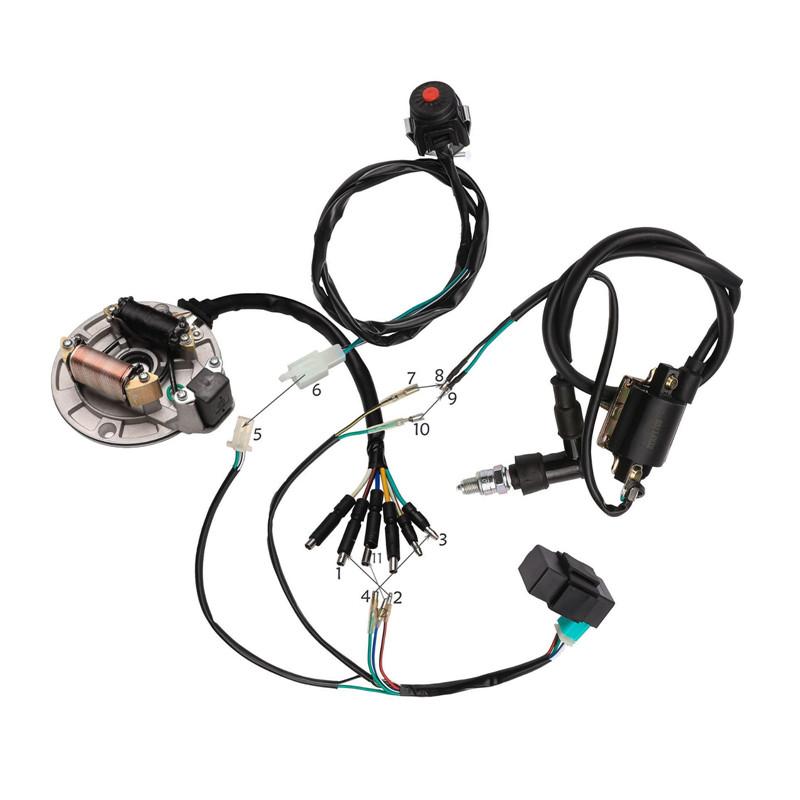

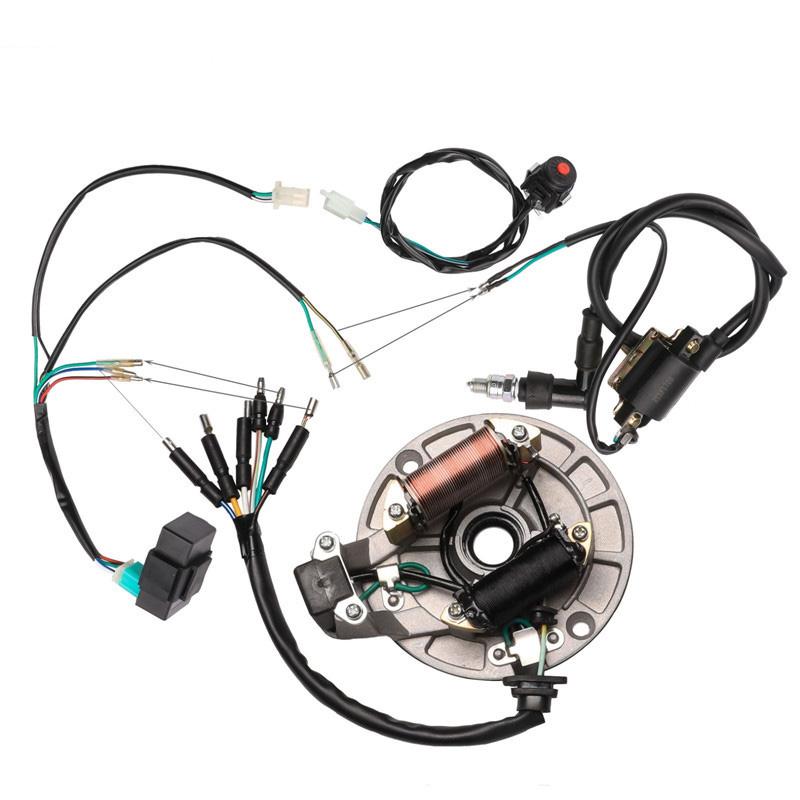

• All Electrics & Switches

Please note: This is a brand new engine and will require the following break in procedure,

1. 10 Minuets running at idle
2. 15 Minuets of riding not exceeding 1/2 throttle
3. 15 Minuets of riding not exceeding 3/4 throttle

Once the running in procedure has been completed it is recommended that the oil is changed and a full check of the engine is completed.

MODEL: LIFAN

DISPLACEMENT: 119.7CC

NET WEIGHT:

MAX POWER: 9HP @7500 RPM

MAX TORQUE: 8NM @5000 RPM

COMPRESSION RATIO: 9.0:10

BORE & STROKE: 52.4mm X 55.5mm

Engine Oil: 900ml, 15W/40
