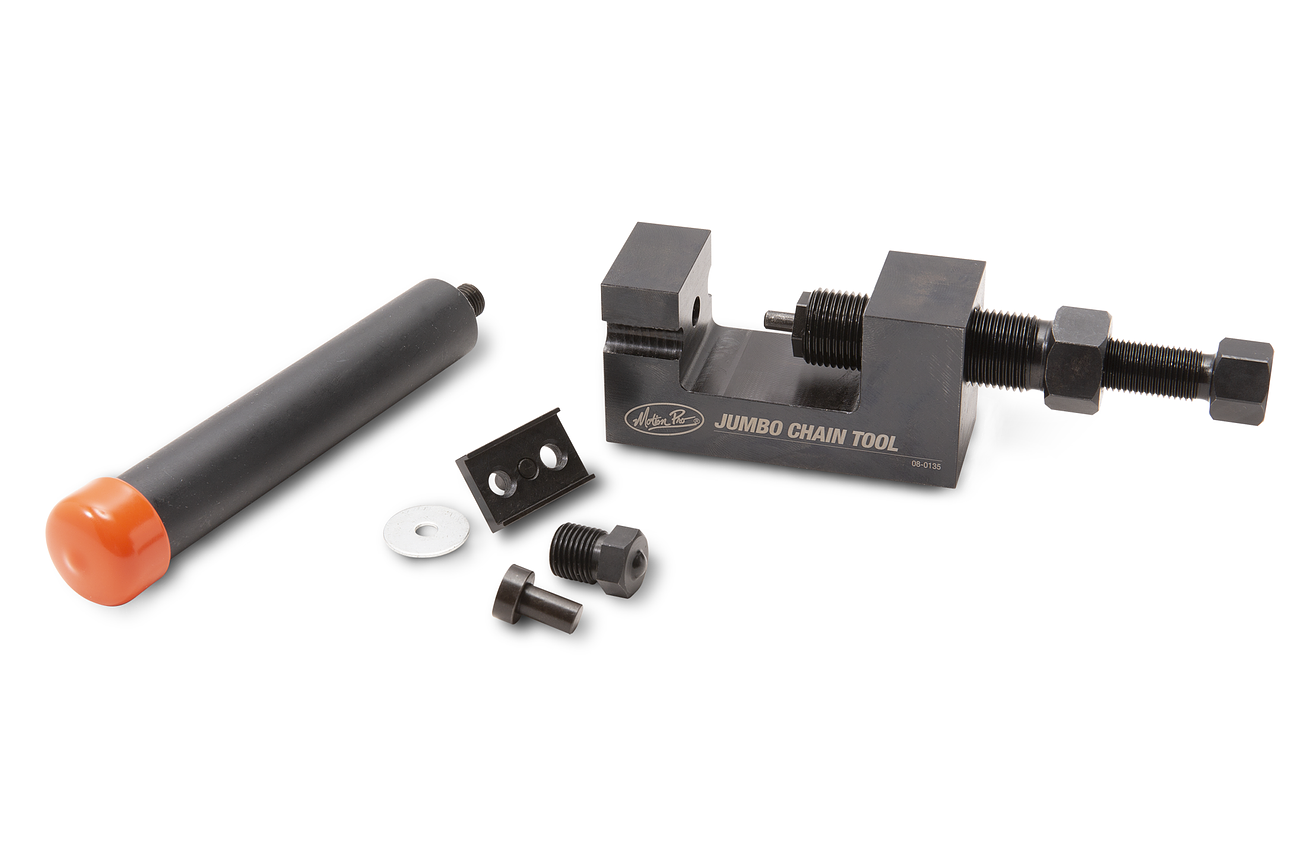

JUMBO CHAIN TOOL MOTION PRO 08-0135

The Motion Pro Jumbo Chain Tool is a robust and versatile instrument designed for breaking and riveting roller chains on motorcycles and industrial machinery. It accommodates standard and O-ring chains ranging from 520 to 630 sizes and is capable of riveting chains up to 530 size. The tool includes a master link side plate press kit for chains up to 530, facilitating efficient chain maintenance. Its heat-treated screws and attachments ensure durability, while the extractor pin, guided by a removable fitting, extends the tool's lifespan. The tool can be handheld, clamped in a vise, or bolted to a workbench, offering flexibility during use. When secured to a solid surface, it is compatible with air or electric wrenches for breaking chains. This tool is recommended for heavy-duty applications and is suitable for both professional and personal use.

Features:

• Designed to break roller chains from 520 to 630 sizes
• Capable of riveting chains up to 530 size
• Includes master link side plate press kit for chains up to 530
• Heat-treated screws and attachments for enhanced durability
• Extractor pin guided by a removable fitting for extended pin life
• Can be handheld, clamped in a vise, or bolted to a workbench
• Compatible with air or electric wrenches when bolted to a solid surface
• Suitable for heavy-duty use

Specifications:

• Chain compatibility: Standard and O-ring chains from 520 to 630 sizes
• Riveting capability: Chains up to 530 size
• Material: Heat-treated steel components

Replacement parts:

• Extractor pin (Part# 08-0D35),
• Spring (Part# C08-001D)
