GR5 Swing Arm Kit KX KXF, 33032-1189 & 92015-1316, Titanium Factroy Image Racing

Factory Image Racing> Giving your machine the Factory look!

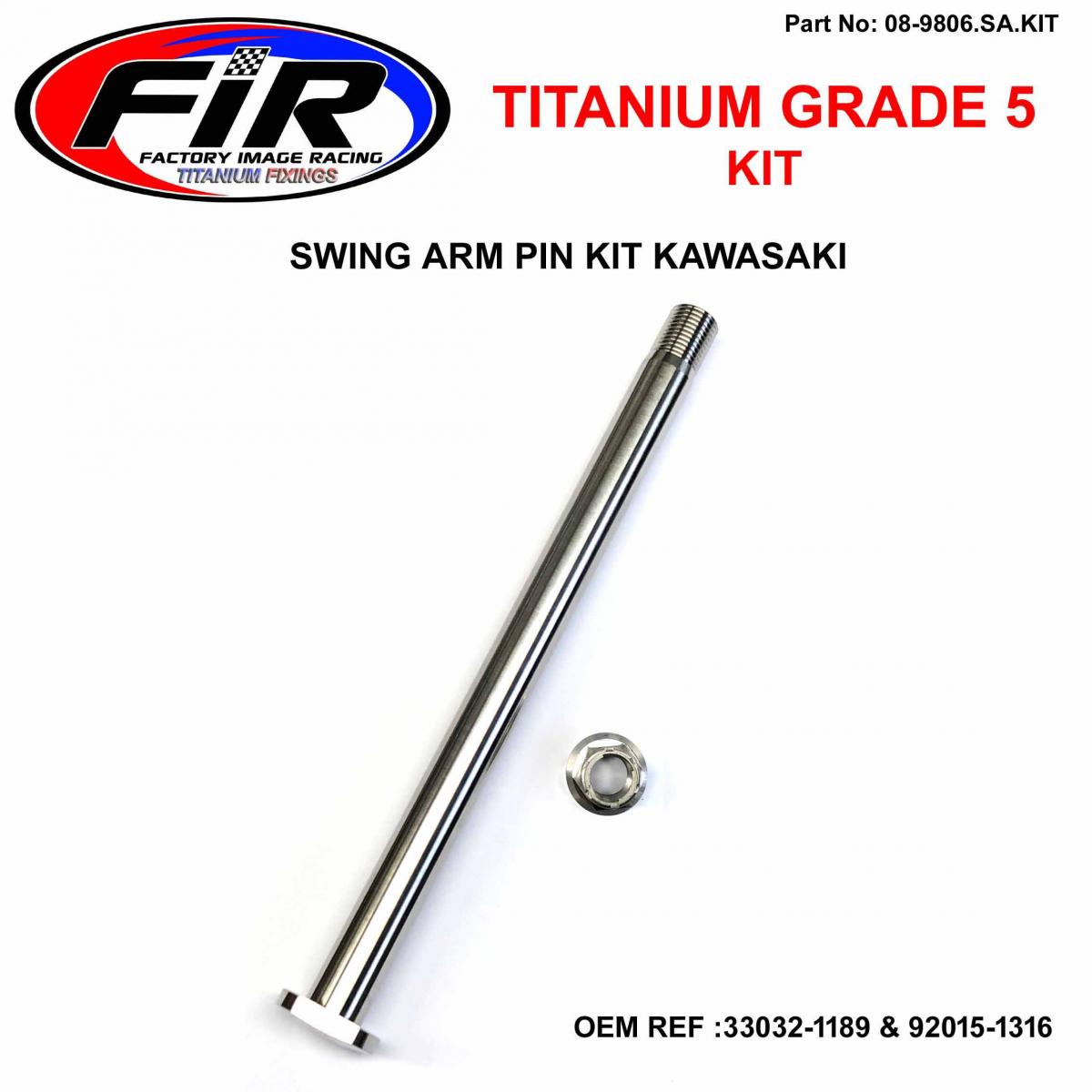

KAWASAKI      SWING ARM PIN KIT

50% lighter then standard & strong then steel.

• Material: Aerospace Grade 5 (6Al/4V)
• Thread D: M16
• Pitch P: 1.50mm
• OD spindle : 16.95mm

• Overall length L: 232.00mm
• Thread length : 18.00mm

• Head:   HALF MOON

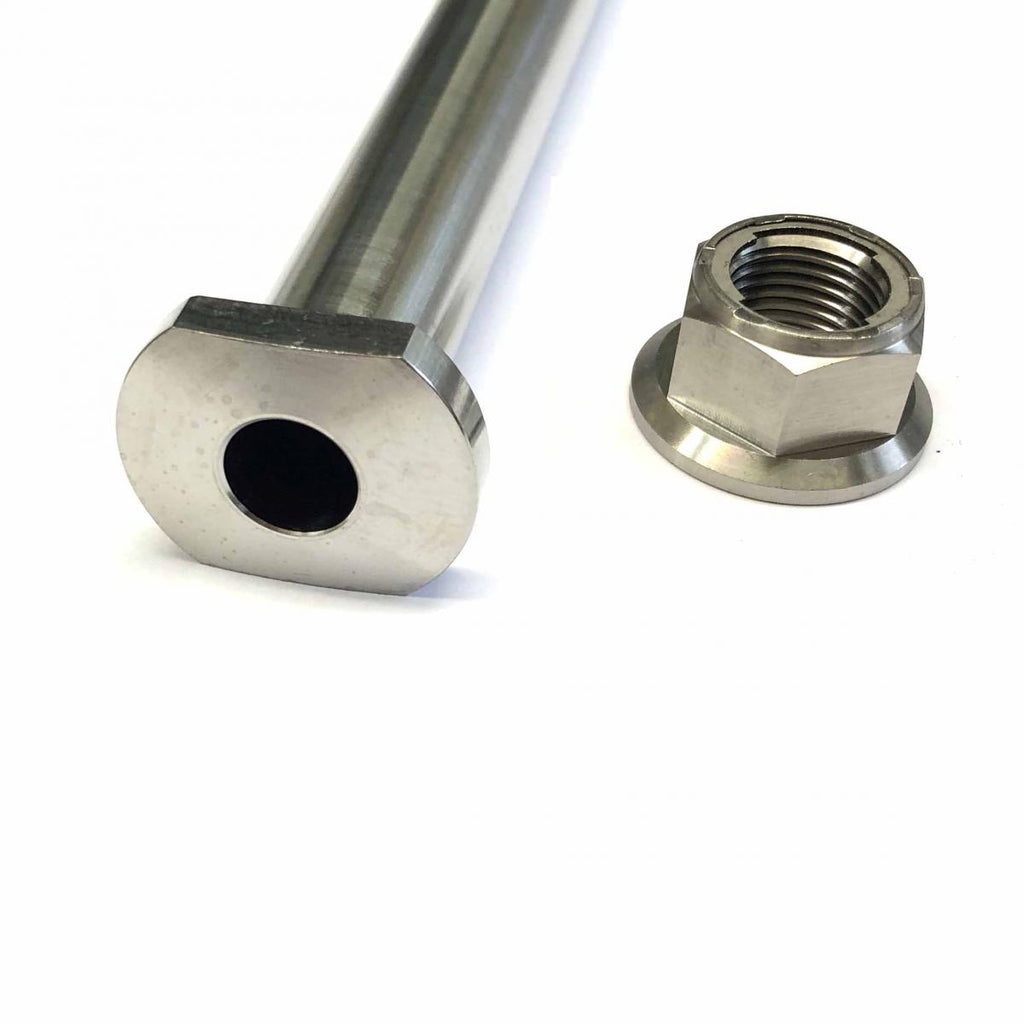

• KIT : SPINDLE & NUT

• WEIGHT: 150g spindle only!


The steel OEM spindle weights 228g and the titanium spindle weights 150g. big weight saver!!

No more rusty hardware, Titanium is Corrosion proof. CNC machined from super-strong grade 5. titanium alloy used for its high strength super light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles   & much more.

Cross references numbers only: 33032-1189 & 92015-1316

33032-1189

Kawasaki Motorcycle 2000 KX250 - KX250-L2 Swingarm
Kawasaki Motorcycle 1998 KX125 - KX125-K5 Swingarm
Kawasaki Motorcycle 1999 KX250 - KX250-L1 Swingarm
Kawasaki Motorcycle 2005 KX250F - KX250-N2 Swingarm
Kawasaki Motorcycle 2002 KX125 - KX125-L4 Swingarm
Kawasaki Motorcycle 2003 KX250 - KX250-M1 Swingarm
Kawasaki Motorcycle 2004 KX250F - KX250-N1 Swingarm
Kawasaki Motorcycle 2004 KX125 - KX125-M2 Swingarm
Kawasaki Motorcycle 2005 KX125 - KX125-M3 Swingarm
Kawasaki Motorcycle 2005 KX250 - KX250-R1 Swingarm
Kawasaki Motorcycle 2001 KX250 - KX250-L3 Swingarm
Kawasaki Motorcycle 2001 KX125 - KX125-L3 Swingarm
Kawasaki Motorcycle 2004 KX250 - KX250-M2 Swingarm
Kawasaki Motorcycle 2006 KX250 - KX250R6F Swingarm
Kawasaki Motorcycle 2007 KX250 - KX250R7F Swingarm
Kawasaki Motorcycle 1998 KX250 - KX250-K5 Swingarm
Kawasaki Motorcycle 1999 KX125 - KX125-L1 Swingarm
Kawasaki Motorcycle 2002 KX250 - KX250-L4 Swingarm
Kawasaki Motorcycle 2003 KX125 - KX125-M1 Swingarm
Kawasaki Motorcycle 2000 KX125 - KX125-L2 Swingarm

Kawasaki Motorcycle 2006 KX125 - KX125-M3 Swingarm

Kawasaki Motorcycle 2007 KX125 - KX125-M3 Swingarm

Kawasaki Motorcycle 2008 KX125 - KX125-M3 Swingarm
