GR5 Bolt Disc M6 X 14mm Boss 8.9, Titanium / Pack 6 / 92151-1799

Factory Image Racing: Giving Your Machine the Factory Look!

TITANIUM GRADE 5 BOLT DISC SET OF 6 - FRONT for Kawasaki & Suzuki

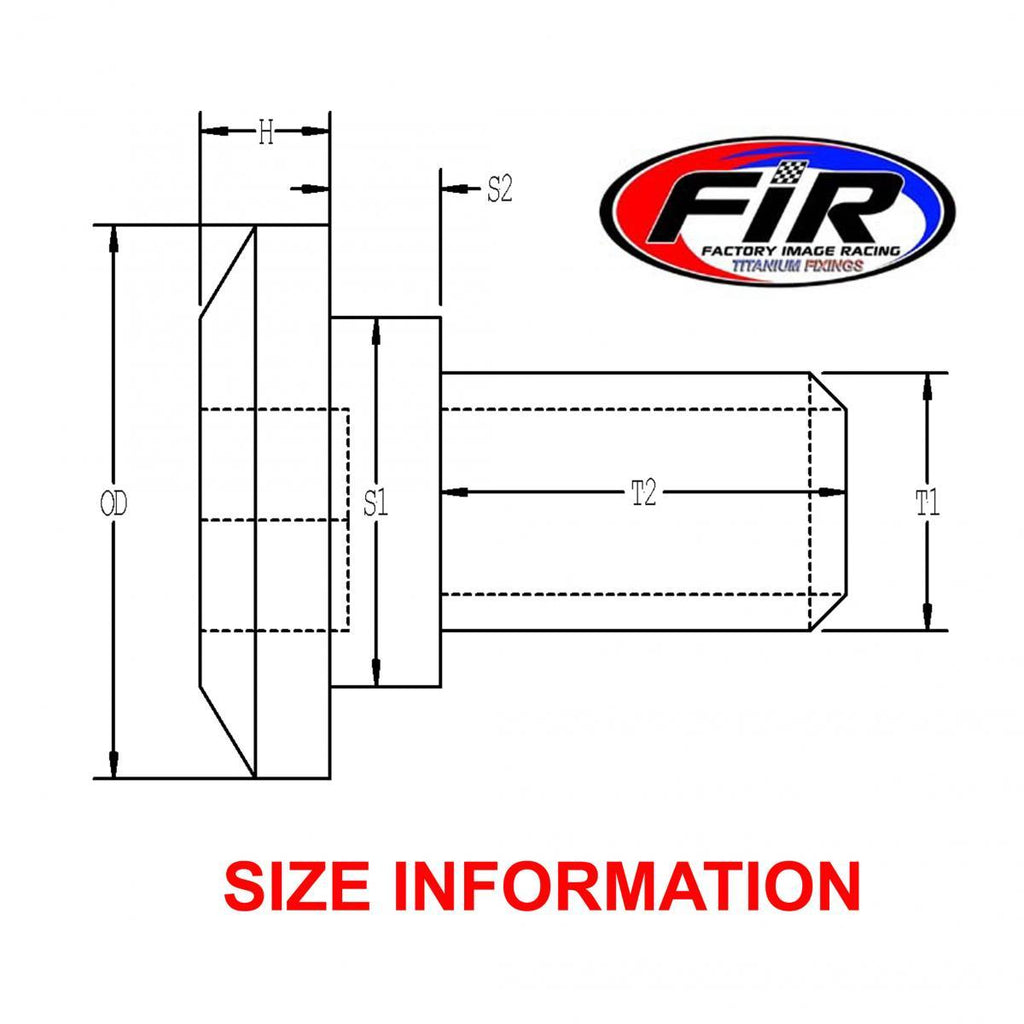

STEP BOLT INFO:

• Material: Grade 5 (6Al/4V) Titanium
• Pitch T1: M6x1.00mm
• Length T2: 11.00mm
• S1 OD step: 8.90mm
• S2 step: 3.30mm
• H Head: 2.40mm
• Head OD: 13.80mm
• Head Allen: #5
• Pack QTY: 6
• OEM Ref: 92151-1799

Fitment:

KAWASAKI (FRONT) - 92151-1799

• ALL KX65 2002-15
• KX85 2006-2020
• KX100 2004-2020
• KX125-250 2008-15
• KLX140 2004-2020
• KXF250 2004-17
• KXF450 2004-17
• KLX450 2008-2012

KAWASAKI (REAR) - 92151-1799

• ALL KX65 2002-15
• KX85 2006-2020
• KX100 2008-2020

SUZUKI (FRONT) - K9215-11799

• ALL RM65 2003
• RM100 2004-06
• RMZ250 2004-06

Additional Information:

• These titanium bolts are Grade 5, the highest grade available, ensuring superior strength and durability.
• All FIR fixings are made from Grade 5 titanium.

Quantity Per Set:

KAWASAKI (FRONT):

• KX65: 4 PCS
• KX85: 6 PCS
• KX100: 6 PCS
• KX125-250: 4 PCS
• KX125: 4 PCS
• KLX140: 6 PCS
• KXF250: 4 PCS
• KLX450: 4 PCS
• KXF450: 4 PCS

KAWASAKI (REAR):

• KX65: 4 PCS
• KX85: 4 PCS
• KX100: 4 PCS
• KLX140: 4 PCS

SUZUKI (FRONT):

• RM65: 4 PCS
• RM100: 6 PCS
• RMZ250: 4 PCS
