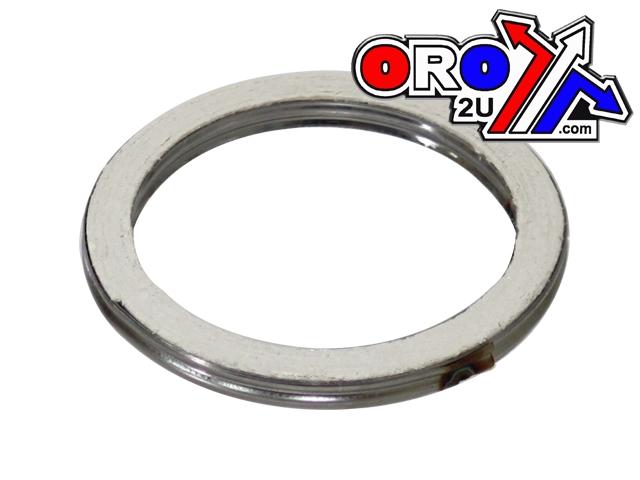

EXHAUST GASKET 36x45x3.5 FIBER, AT-02242, 11009-1992 KRF800, KRF800 TERYX/TERYX 4
£1.62 GBP
Taxes included.
Exhaust gasket suitable for Kawasaki and Yamaha models. Designed for installation between the manifold and header pipe, this gasket features a high-quality construction of SS304 stainless steel and non-asbestos fibre, ensuring durability and reliable performance.
Features:
- Made from SS304 stainless steel and non-asbestos fibre.
- Designed for a secure seal between manifold and header pipe.
- High-quality replacement part.
Specifications:
- Inner Diameter: 36mm (+/- 0.2mm)
- Outer Diameter: 45.5mm (+/- 0.2mm)
- Height: 3.5mm (+/- 0.5mm)
Cross-Reference OEM Part Numbers:
- AT-02242
- 11009-1992 (Kawasaki)
- 11009-1922 (Kawasaki)
- 11009-1738 (Kawasaki)
- 11009-1199 (Kawasaki)
- S410485012001
- 1L9-14613-00-00 (Yamaha)
- 3LD-14613-00-00 (Yamaha)
- 3VD-14613-00-00 (Yamaha)
- 3VD-146130-10-00 (Yamaha)
Vehicle Compatibility:
Kawasaki KRF800 Teryx Models (2014-2015)
- KRF800BEF Teryx MUFFLER(S)
- KRF800CEF Teryx LE MUFFLER(S)
- KRF800DEF Teryx Camo MUFFLER(S)
- KRT800BEF Teryx4 MUFFLER(S)
- KRT800CEF Teryx4 LE MUFFLER(S)
- KRT800DEF Teryx4 Camo MUFFLER(S)
Part Number: 56-4459.FA.EACH
