DISC BRAKE FRONT KX KXF, DELTA BRAKING DBD061
£42.77 GBP
Taxes included.

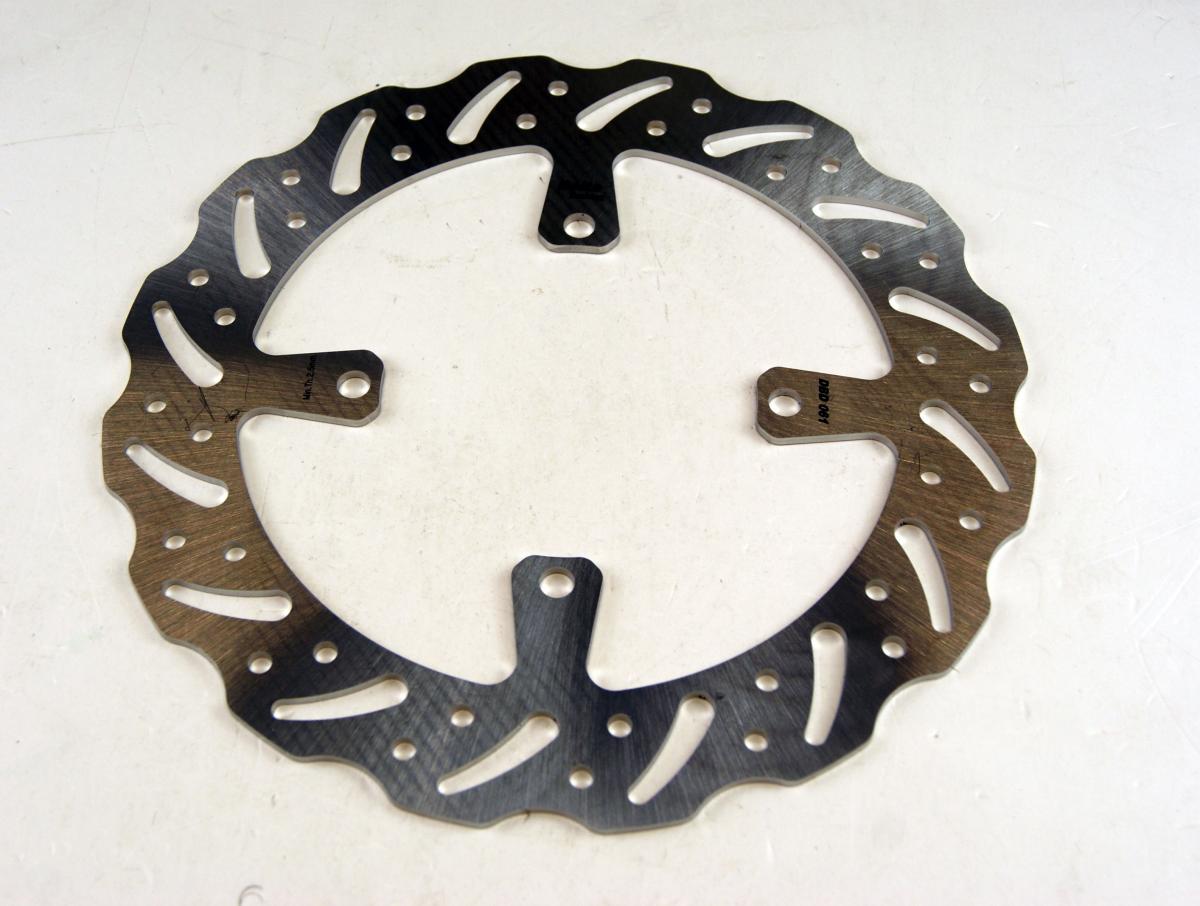

Delta Braking DBD061 front disc brake is manufactured for high-performance off-road motocross and enduro applications on contemporary Kawasaki KX250 and KX450 (both F and X variants). Precision engineered to OEM standards, this oversized front disc provides increased braking power, durability, and stable response in competitive and challenging terrain. Its robust construction and exact dimensions ensure direct fitment and easy installation for modern racing and trail bikes.
Features
- High-quality steel construction for consistent, optimal front brake response
- Oversized 270 mm diameter boosts stopping power for aggressive riding
- Matches OEM bolt pattern for straightforward installation and direct replacement
Specifications
- Outer diameter: 270.0 mm
- Inner diameter: 109.5 mm
- Thickness: 4.0 mm
- Number of holes: 4
- Hole diameter: 9.5 mm
- Pitch (bolt circle): 126.0 mm
Vehicle Fitment
- Kawasaki KX 250 (4-stroke) 2019–2025 (Front)
- Kawasaki KX 250 F 2015–2018 (Front)
- Kawasaki KX 250 F AJF/BLF/ZFF 270/240 mm 2015–2020 (Front)
- Kawasaki KX 250 F CSF/ESF 270/240 mm 2021–2025 (Front)
- Kawasaki KX 250 F XC 18 270/240 mm 2021–2025 (Front)
- Kawasaki KX 450 (4-stroke) 2019–2025 (Front)
- Kawasaki KX 450 F 2015–2018 (Front)
- Kawasaki KX 450 F FF/GF/HF 270/240 mm 2015–2018 (Front)
- Kawasaki KX 450 F J/K/L/M/N/P 270/250 mm 2019–2023 (Front)
- Kawasaki KX 450 F M/N 270/240 mm 2024–2025 (Front)
- Kawasaki KX 450 F X 270/240 mm 18 2021–2025 (Front)
- Kawasaki KX 450 KXF SR 270/250 mm 2022–2025 (Front)
Cross Reference Numbers
- DBD061 (Delta Braking)
- Matches OEM and popular aftermarket specifications for the models and years above
