Damper Dump Box Shock Polaris Bronco AT-04900 7043906 7043967 7044143 7044674

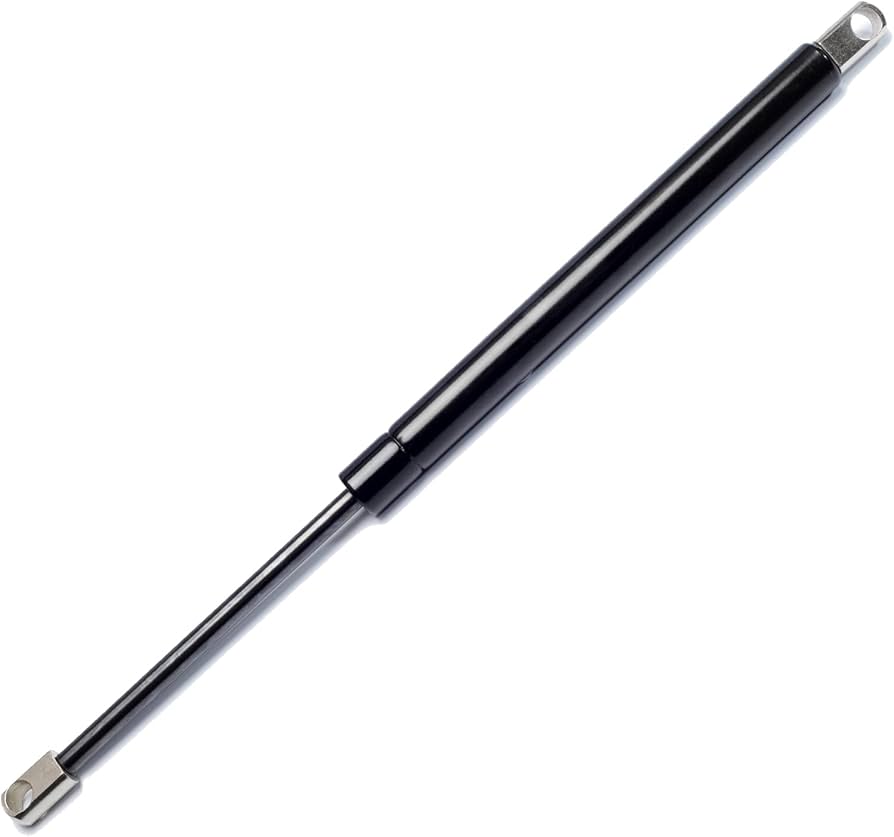

Bronco Dump Box Shock for Polaris (Model: AT-04900)

Polaris Ranger Compatibility Models:

• 2016: Ranger 570, XP, Full Size Crew
• 2017-2018: Ranger 900 EPS (Poland)
• 2016-2018: Ranger 900 XP
• 2016-2018: Ranger 900 Crew
• 2016-2018: Ranger 1000 Diesel / Crew
• 2018: Ranger 1000 Diesel Crew MD
• 2018: Ranger 1000 Crew PS
• 2018: Ranger 1000 PS
• 2017: Ranger 1000 XP
• 2018: Ranger 1000 XP PS Mud
• 2017-2018: Ranger 1000 XP Crew
• 2018: Ranger 1000 XP PS
• 2019: Ranger 1000 XP PS Crew

Product Specifications:

• Length (Center to Center): 444 mm (17.48")
• Top/Bottom Hole Diameter: 13.1 mm (0.52")
• Stroke Length: 153 mm (6.02")
• Shaft Diameter: 10 mm (0.39")
• Tube Diameter: 22.1 mm (0.87")
• Internal Pressure: 35 kgs

Eyelet Dimensions:

• Thickness: 12 mm (0.47")
• Width: 19 mm (0.75")

Materials:

• Shaft: S45C with Nitrogen Treatment
• Hook: Zinc Alloy
• Tube: STKM 12C with Black Coating

Cross Reference Part Numbers:

• AT-04900
• 7044674
• NP9801P
• P10181

This Bronco Dump Box Shock is designed to meet the rigorous demands of Polaris Ranger models, ensuring durability and performance for various applications.
