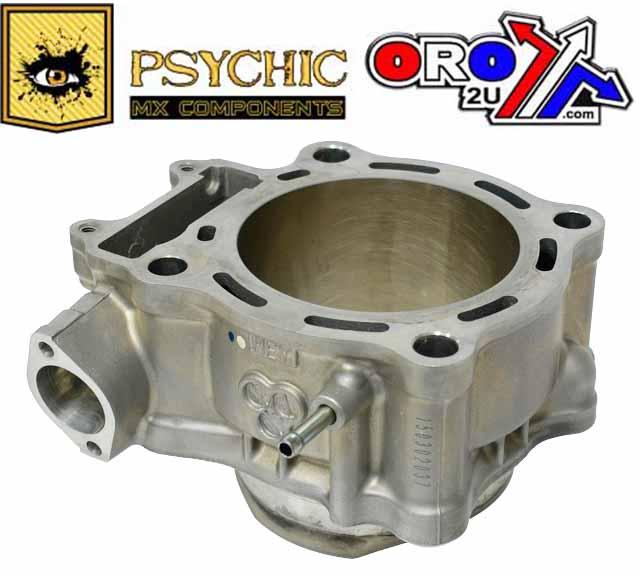

Cylinder Only 05-15 CRF450X MX-09172-1 Big Bore CX-10003-BB4

CYLINDER ONLY
BIG BORE 100mm
PSYCHIC MX-09172-1

HONDA
CRF450X 2005 - 2015

SLEEVE O.D. 103.8/105mm, H: 67.85/98mm

• BRAND NEW AND DESIGNED STRICTLY OFF THE OEM SPECIFICATIONS.
• CAST FROM AB4C ALUMINIUM WITH NIKASIL PLATED SLEEVES.
• PSYCHIC CYLINDERS TO HAVE SOME OF THE BEST WEAR CAPABILITIES IN THE MARKET.
• MOST CYLINDERS ARE SIMPLE DROP-IN INSTALL WITH NO CASE MODIFICATIONS NECESSARY.
• Sleeve: Nikasail.
• Hardness: HV500~600.
• Thickness: 0.08 +/- 0.02mm.
• Cylinder Material: JIS AC4B-T6 Aluminium, hardness: HR65up.

Part No. 56-K115.100.PS

Cross reference numbers ONLY:
12100-MEY-670, 12100-MEY-671
