CYLINDER KIT YFM700 07-13, WORKS CYLINDER 21104-K01 BIG BORE, 105mm 770cc 2007 - 2013 Yamaha YFM 700 FG Grizzly 4x4 ATV
£781.66 GBP
Taxes included.
+3mm Big Bore Complete Cylinder Kit designed for the Yamaha YFM 700 Grizzly 4x4 models. This direct bolt-on kit increases displacement to 727cc and includes a matched Vertex piston for enhanced durability, performance, and reduced engine noise. Nickel Silicon Carbide plating ensures long life, and no replating is required.
Features
- Direct bolt-on installation with no replating required
- Increases displacement to 727cc with a 9.2:1 compression ratio
- Nickel Silicon Carbide plated for extended durability
- Honed to exact size for easy piston installation
- Includes matched Vertex piston for optimized performance
- Comes complete with all necessary components for installation
- Compatible with Hot Rods #4179 to achieve 770cc displacement
- Manufactured in the U.S.A.
Specifications
- Part Number: 21104-K01
- Bore Size: 102mm (+3mm)
- Displacement: 727cc
- Compression Ratio: 9.2:1
- Uses Vertex Piston #23626

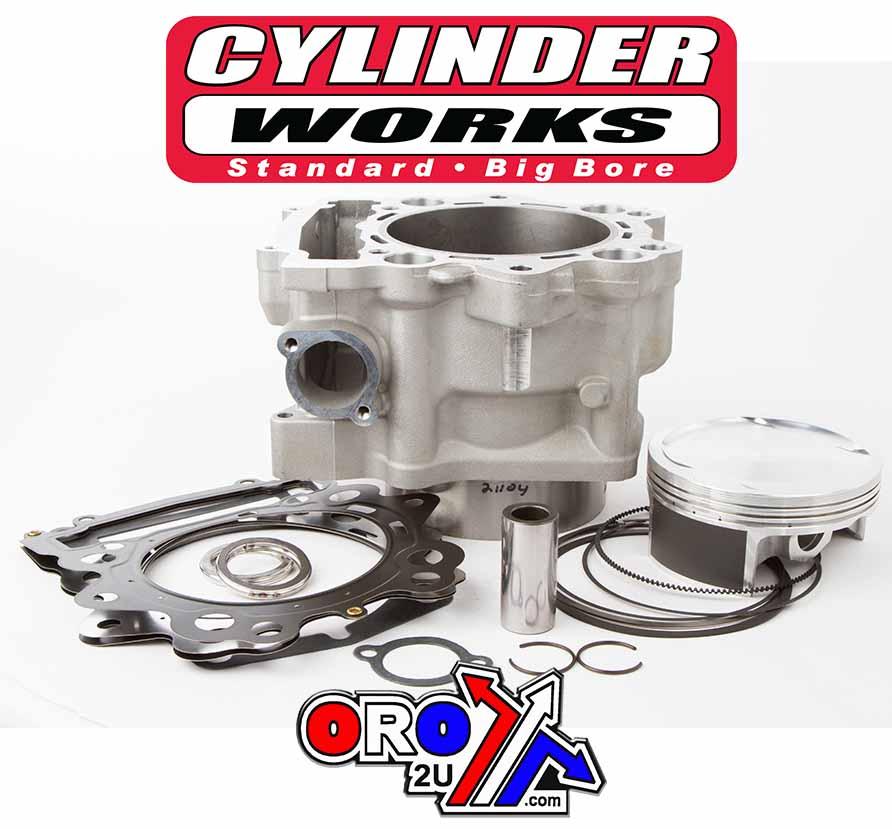

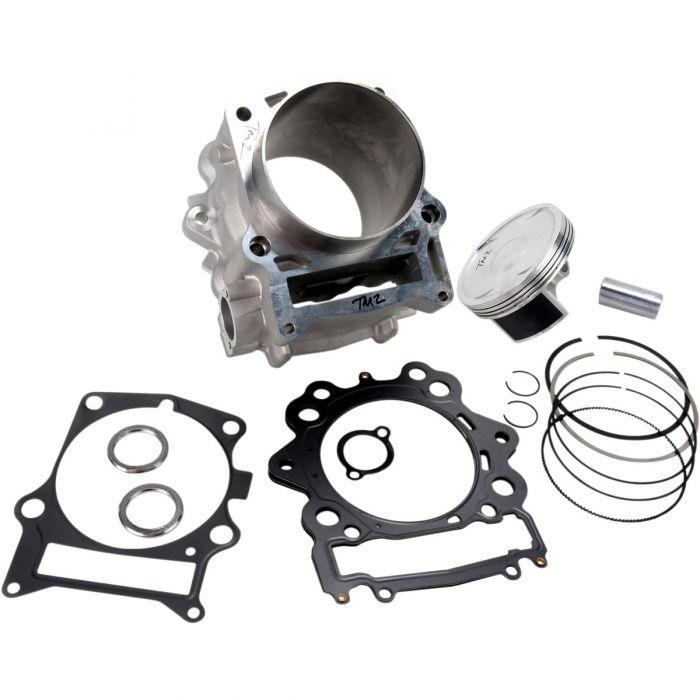

Included Items
- (1) Cylinder
- (1) Piston kit
- (1) Top-end gasket kit
- (1) Piston pin
- (2) Circlips
- (1) Ring set
Cross-Reference OEM Part Numbers
- YAMAHA: 3B4-11311-00-00
- YAMAHA: 3B4-11311-10-00
Vehicle Fitments
- 2007-2013 Yamaha YFM700FG Grizzly 700 FI 4x4 (Various Models)
- 2007-2015 Yamaha YFM700 Grizzly 700 4x4 (Various Models)
- 2007-2014 Yamaha YFM700 Grizzly 700 4x4 EPS (Various Models)
- 2007-2014 Yamaha YFM700 Grizzly 700 4x4 Hunter & Special Edition Model
