CYLINDER KIT 94.00mm KAWASAKI KFX KLX400 03-06 SUZUKI LTZ DRZ 400 05-15 LTZ400 LT-Z Kawasaki KFX400

CYLINDER KIT 94.00mm KAWASAKI KFX KLX400 03-06 SUZUKI LTZ DRZ 400 05-15 LTZ400 LT-Z Kawasaki KFX400

£221.01 GBP
Taxes included.

Kawasaki

  • 2003-06 KFX 400
  • 2003-04 KLX 400

Suzuki

  • 2000-09 DR-Z 400E
  • 2000-09 DR-Z 400K
  • 2000-09 DR-Z 400S
  • 2000-09 DR-Z 400SM
  • 2000-09 DRZ 400
  • 2003-09 LTZ 400

Arctic Cat

  • 2004-08 DVX 400



Cylinder Kit: 94mm BIG Bore



  • Ready-to-install, direct bolt-on cylinders require no re-plating and look virtually identical to the OEM cylinders
  • Cylinder kits include matched pistons to ensure longevity, performance, and reduced engine noise
  • Nickel Silicon Carbide plated for long life

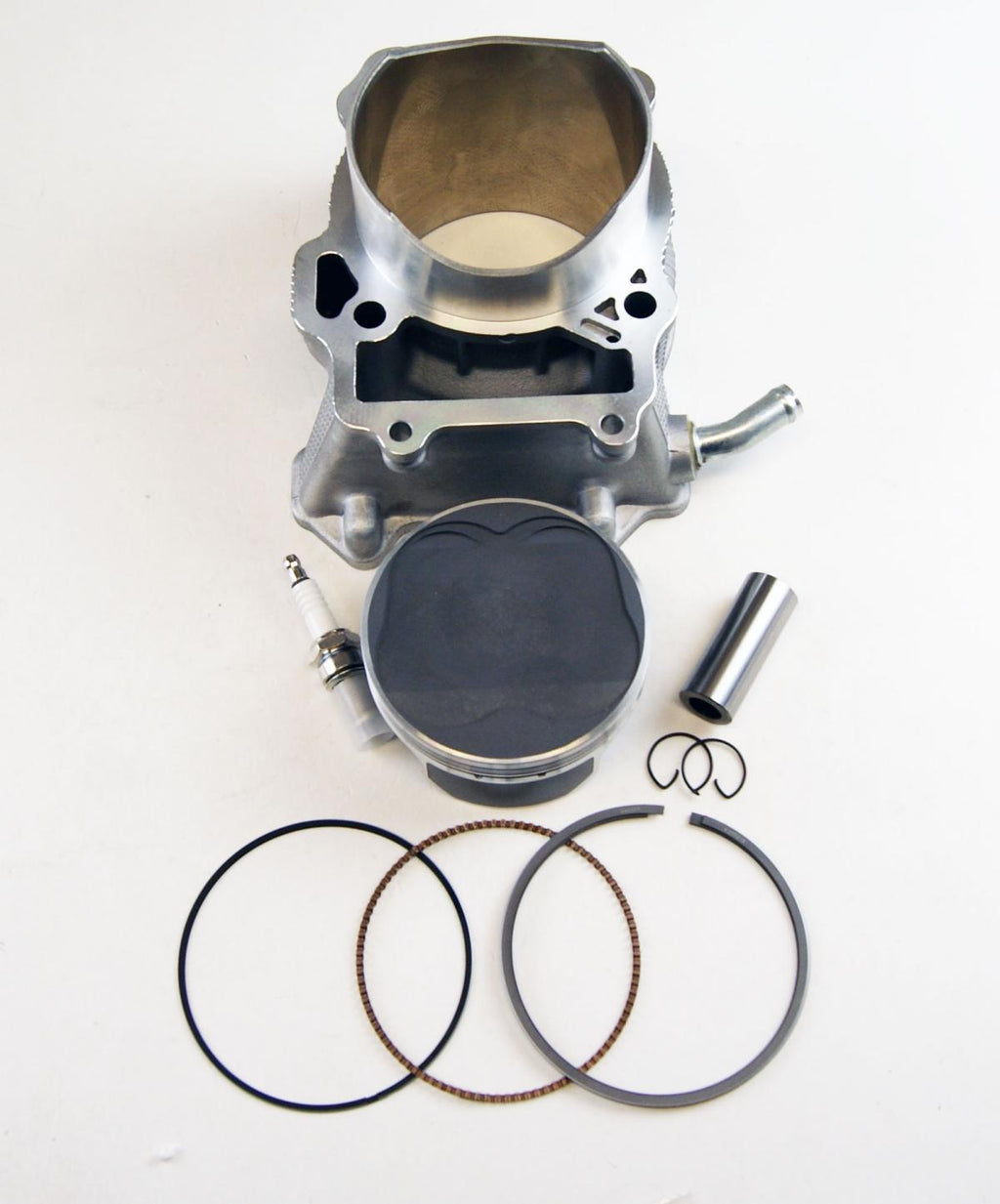

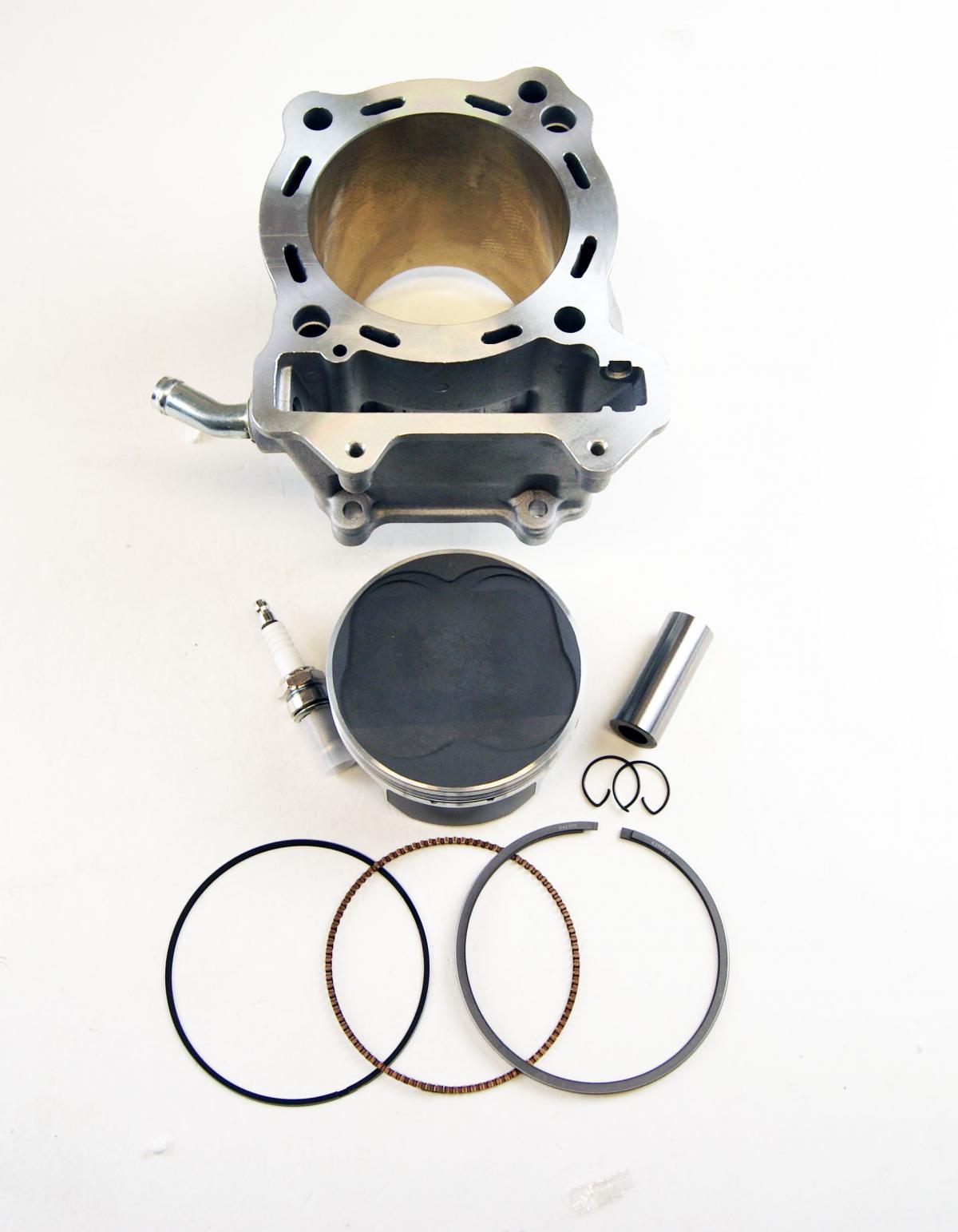

  • Kits come complete with gaskets, cylinder, piston, rings, pin, and clip
  • Part No. 56-K112.94.KIT (Distributed by oro2u.com)



Cross Reference Numbers:

  • AT-09462K
  • 422-40001
  • 0931-0139
  • CW 40001
  • KAWASAKI: 11005-S007
  • SUZUKI: 11210-29F11-0F0
  • SUZUKI: 11210-29F20-0F0
  • ARCTIC CAT: 3402-844

11210-29F20-0F0, 11210-29F11-0F0, 11241-29F00, 12111-29F00-0F0, 12140-29F00, 12151-24F10, 09381-20004, 11141-29F01, 09160-10082, 11191-13E00

Cylinder Kit Components:

  • AT-09462-1: STD CYL
  • NA-30002-16: NAMURA PISTON KIT

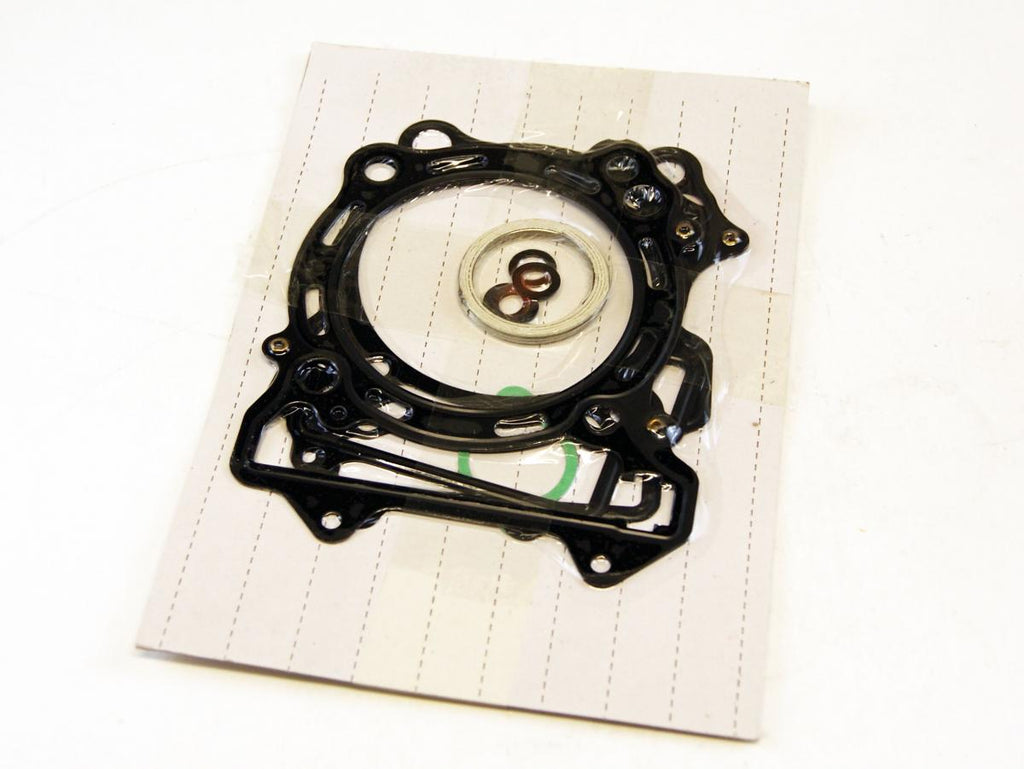

  • NA-30002-16T: NAMURA TOP GASKET SET
