CYLINDER KIT 90.00mm HONDA 98-04 TRX 450 S ES FE FM 12100-HN0-A00
£291.52 GBP
Taxes included.
This top end rebuild kit is designed for all Honda TRX450 S/ES/FE/FM Foreman 450 4x4 models from 1998 to 2004. It includes a standard bore cylinder, piston assembly, gaskets, and related components for restoring engine performance with OEM-level fit and reliability.
Features
- Unmatched reliability and performance from high-tech materials
- Meets or exceeds OEM quality
- Direct OEM replacement
- Easy to install; professional installation recommended if unsure
Specifications
- Displacement: 450cc
- Bore Size: STD 90mm
- Piston Height: 55.6mm
- Cylinder Material: High-grade cast aluminum
- Piston Material: Forged aluminum

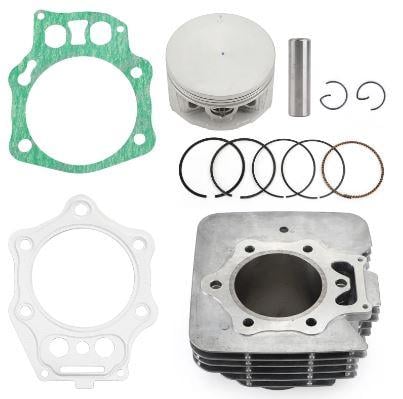

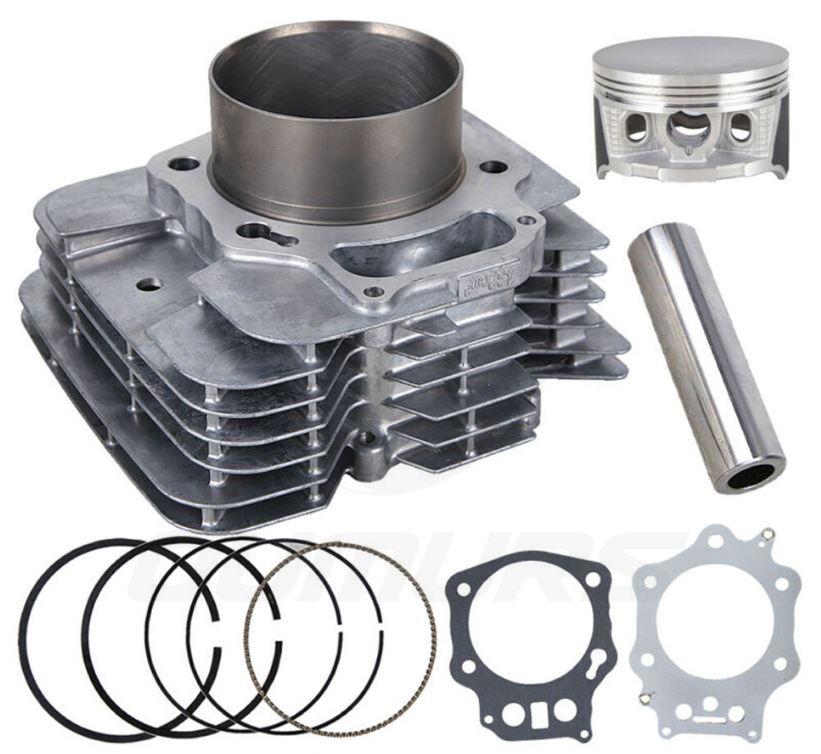

Kit Includes
- 1x Cylinder
- 1x Standard Size Piston
- 1x Piston Ring Kit
- 1x Wristpin
- 2x Circlips
- 1x Cylinder Head Gasket
- 1x Cylinder Block Gasket
- 1x Exhaust Gasket
- 1x O-Ring
- 1x Intake Gasket
Cross-Reference OEM Part Numbers
- Cylinder: 12100-HN0-A00
- Cylinder Base Gasket: 12191-HM7-013
- Cylinder Head Gasket: 12251-HN0-A01
- Cylinder Head Cover Gasket: 12315-HM7-005
- Piston: 13101-HN0-A00
- Ring Set: 13010-HN0-A02
- Pin, Piston: 13111-HN0-A00
- Clip, Piston: 13112-MAT-000
- Valve Seals: 12209-KL4-005
- O-Ring (37x2.4): 91305-HN0-A00
- Exhaust Gasket: 18291-MN4-920
Vehicle Fitments
- Honda TRX450 S Foreman 450 4x4 1998–2004
- Honda TRX450 ES Foreman 450 4x4 1998–2004
- Honda TRX450 FE Foreman 450 4x4 1998–2004
- Honda TRX450 FM Foreman 450 4x4 1998–2004
