CYLINDER KIT 68mm 07-09 CRF150, WORKS 11004-K01 BIG BORE, 56-K116.68.KIT
  • CYLINDER KIT 68mm 07-09 CRF150, WORKS 11004-K01 BIG BORE, 56-K116.68.KIT
  • CYLINDER KIT 68mm 07-09 CRF150, WORKS 11004-K01 BIG BORE, 56-K116.68.KIT
Cylinder Kit 68mm 07-09 CRF150, Works 11004-K01 Big Bore, 56-K116.68.Kit

Cylinder Kit 68mm 07-09 CRF150, Works 11004-K01 Big Bore, 56-K116.68.Kit

£512.95 GBP
Taxes included. Shipping calculated at checkout.

The Cylinder Works +2mm Big Bore Complete Cylinder Kit increases the displacement of Honda CRF150R and CRF150RB models to 159cc. This direct bolt-on kit requires no replating or additional machining, delivering OEM-like fitment and performance.

Features:

  • Increases displacement to 159cc with a +2mm big bore cylinder.
  • Nickel Silicon Carbide plated for enhanced durability and long life.
  • Precisely honed for easy piston installation.
  • Complete kit includes all components for a top-end rebuild.
  • Compatible with Hot Rods #4175 crankshaft to achieve 166cc displacement.

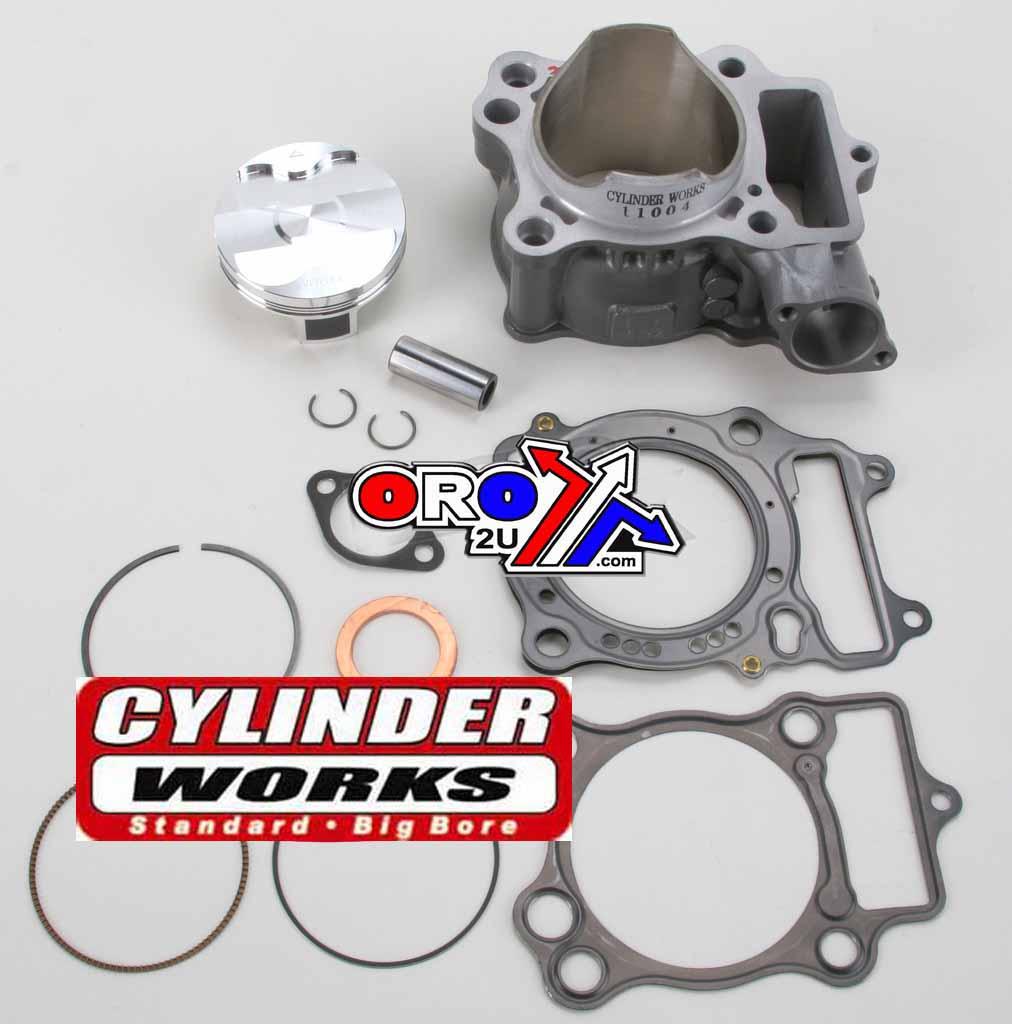

Included Components:

  • Cylinder
  • Piston
  • Rings
  • Pin
  • Clips
  • Gasket set

Technical Specifications:

  • Displacement: 159cc
  • Bore size: 68.00mm
  • Compression ratio: 11.7:1
  • Size over standard: +2.00mm

Cross-Reference OEM Part Numbers:

  • HONDA: 12100-KSE-670
  • HONDA: 12100-KSE-671

Vehicle Fitments:

  • Honda CRF150R: 2007–2009
  • Honda CRF150RB: 2007–2009
