CYLINDER FULL KIT 100MM KAWASAKI KFX 450 08-14, ATHENA P400250100010 490CC BIG BORE INCLUDES CDI, (Piston and CDI included)

ATHENA Big Bore Cylinder Kit Ø 100 mm, 490 cc - P400250100010

Athena has been consistently investing in aftermarket cylinder replacement parts for over a decade, striving to enhance both production and performance. All cylinders are meticulously engineered in Italy by Athena’s R&D Department, leveraging extensive internal expertise and state-of-the-art tools for design and testing. Each piece is coated with motor-nicksil, a nickel-silicon coating developed by Athena to ensure smoothness and optimal wear resistance.

Athena’s cylinder kits and components are globally renowned for their performance, durability, and reliability.

Athena’s Big Bore Cylinder Kits deliver a noticeable increase in performance throughout the power curve while maintaining reliability at par with the original components.

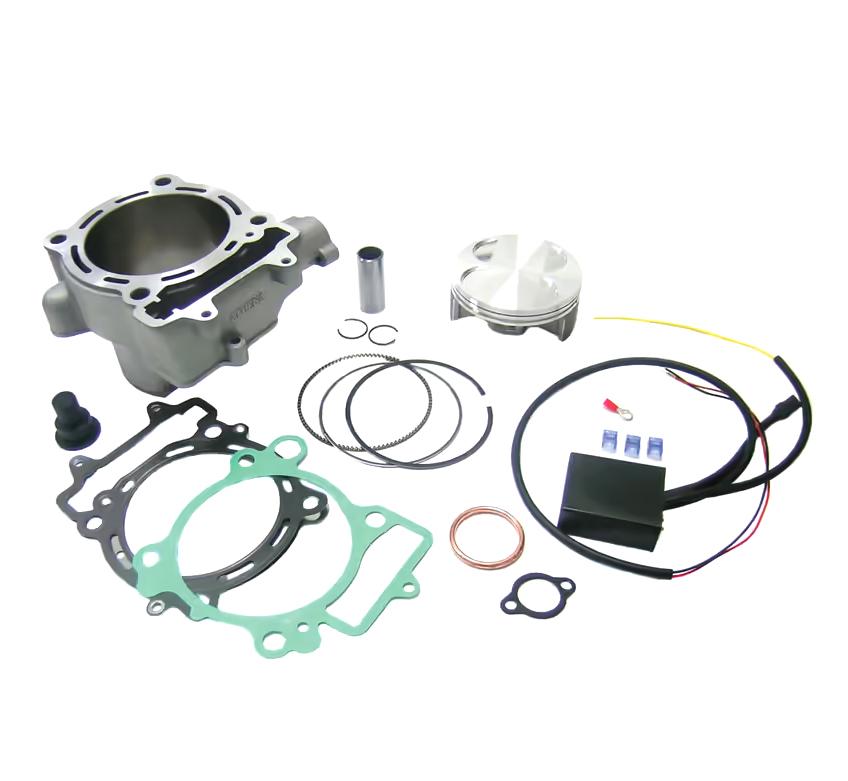

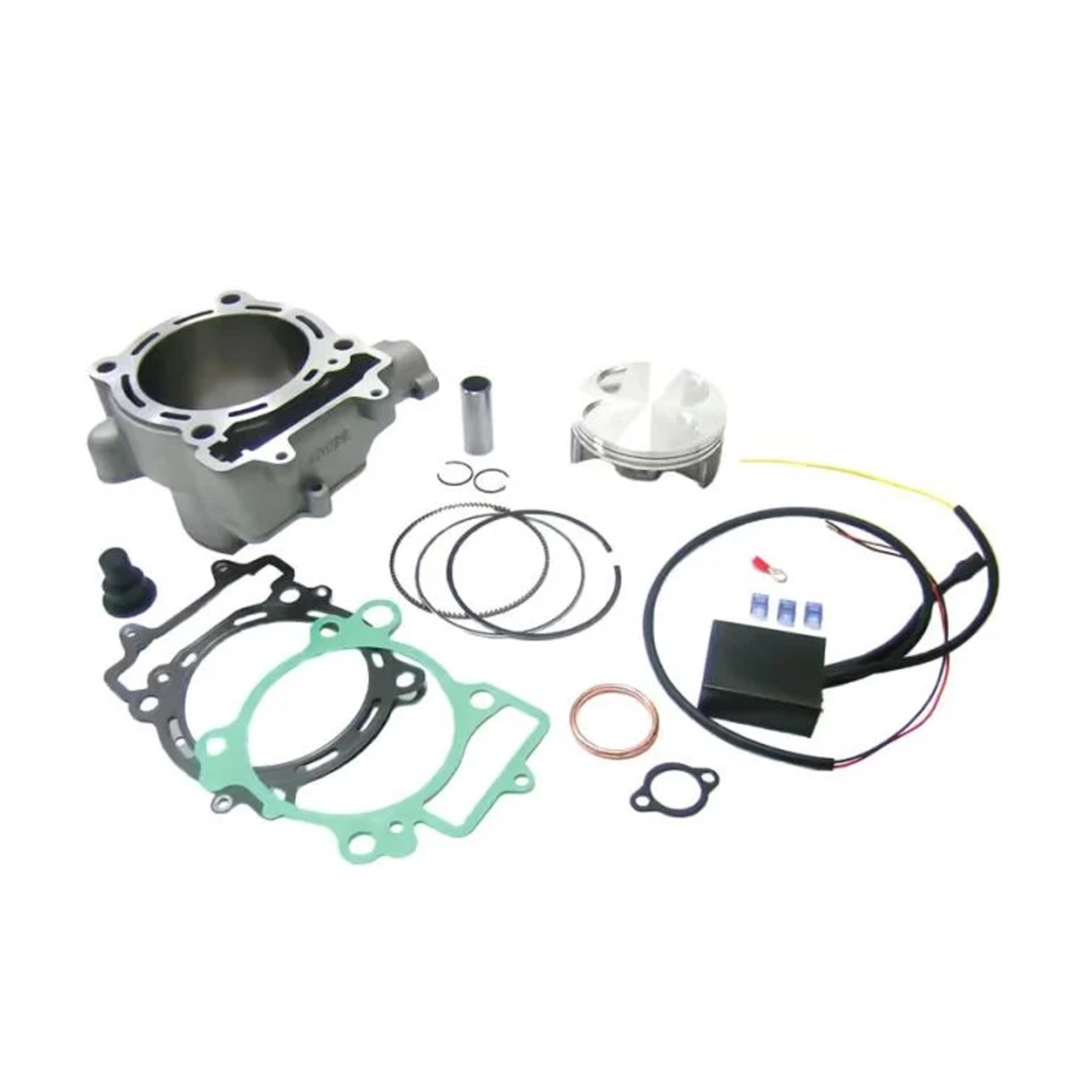

The kit comprises a high-quality aluminium cylinder with an enlarged bore, CDI, a complete piston with piston pin and rings, and all necessary gaskets.

Every component of the kit is engineered to withstand extreme temperatures, pressures, and stresses, rigorously validated by Athena technicians through rigorous bench and road tests.

This cylinder kit can be seamlessly installed without any modifications to the engine crankcase.

CAUTION! All Athena products must be utilized in compliance with the specific national regulations of the member state where they are marketed or sold. Athena disclaims all responsibility for any improper use.

Technical Features:

• Bore Diameter (mm): 100.00
• Compression Ratio: 13.0:1
• Displacement (cc): 490
• Net Weight (Kg): 1.12

Partner Cross Reference Code:

• Cylinder Kit bore 100mm ATHENA P400250100010 kit parts.
• S4F100000160 Piston Kit 100
• P400250160003 Gaskets Kit
• P400250170002 Electronic Unit Gpa
• S41316179 Rings

Compatibility:

• KAWASAKI KFX R 450 cc 2008/2014

Part No. 56-K126.100.KIT
