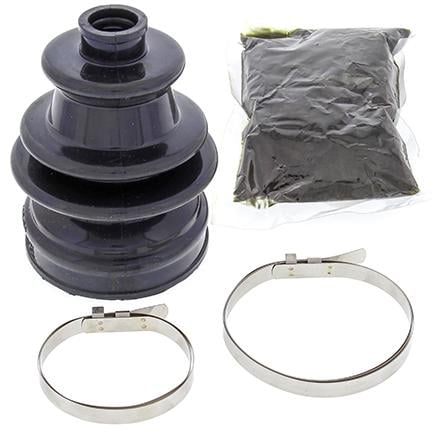

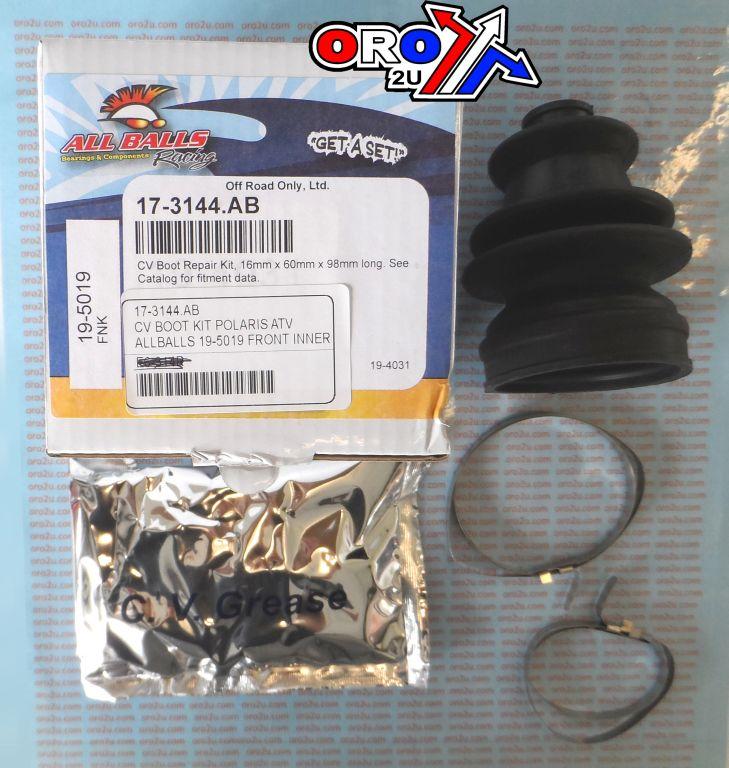

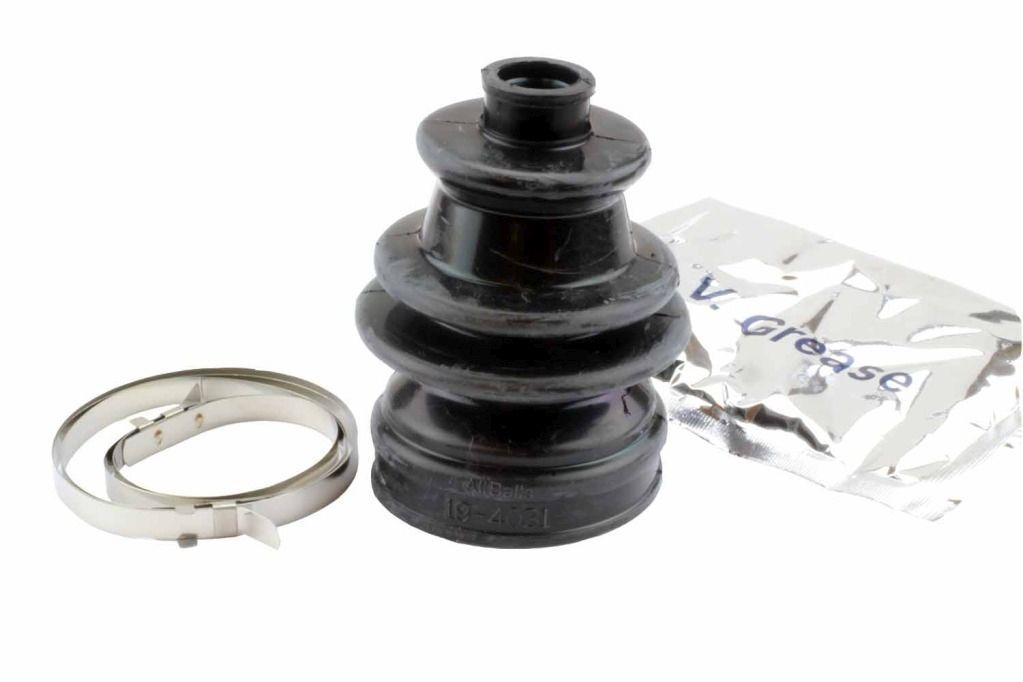

CV BOOT KIT POLARIS ATV FR.IN, ALLBALLS 19-5019 SIZE 16x60x98

All Balls CV Boot Kit - 19-5019

Product Features:

• Includes: Molybdenum Grease (Lithium-based) for extended CV joint life
• Design: Built to handle high joint angles and modern ATV/UTV demands
• Material: 50% increased abrasion resistance and 40% higher tensile strength compared to standard materials
• Installation: Comes with two stainless steel clamps; no special tools required

Dimensions:

• Shaft ID: 16mm
• CV Body ID: 60mm
• Length: 98mm

Fitment Details:

Front Outer Only:

Polaris:

• Sportsman 550 (2011-2012)
• Sportsman 550 X2 (2011-2012)
• Sportsman Forest 550 (2011-2012)
• Sportsman Touring EPS 550 (2011-2012)
• Sportsman Forest 850 (2011)
• Sportsman 850 Touring EPS (2011-2012, all models)
• Sportsman X2 LE 850 (2011)
• Sportsman XP 850, Sportsman XP 850 EPS (2011)

Front Inner Only:

Polaris:

• Sportsman 550 EPS (2010)
• Sportsman 550 X2 (2010)
• Sportsman 550XP (2009)
• Sportsman 850 Touring EPS (2010)
• Sportsman XP 850 (2009-2010)

Front Outer and Rear Outer Only:

Polaris:

• Sportsman XP 850, Sportsman XP 850 EPS (2012)

Additional Fitments:

CV Boot Repair Kit - Front, Outer:

Polaris Models:

• Forest 800 6x6 (2015)
• Scrambler 1000 MD (2015)
• Scrambler 1000 MD Built Before 2/15/16 (2016)
• Scrambler 1000 XP (2015-2016)
• Scrambler 1000 XP EU (2015)
• Scrambler 1000 XP HO EPS (2014-2015)
• Scrambler 1000 XP HO EPS INTL (2014)
• Scrambler 850 (2015)
• Scrambler 850 EU (2015)
• Scrambler 850 HO/EPS (2013-2014)
• Scrambler 850 MD (2015)
• Scrambler 850 XP HO EPS (2014)
• Scrambler 850 XP HO EPS INTL (2014)
• Sportsman 1000 MD (2015)
• Sportsman 1000 MD Built Before 2/15/16 (2016)
• Sportsman 1000 XP (2015)
• Sportsman 1000 XP Tractor Built Before 2/15/16 (2016)
• Sportsman 325 ETX EFI (2015)
• Sportsman 400 HO 4x4 (2013-2014)
• Sportsman 450 EFI MD (2016)
• Sportsman 450 EPS Quad (2016)
• Sportsman 450 EPS ZUG (2016)
• Sportsman 450 HO (2016-2017)
• Sportsman 450 Tractor (2016)
• Sportsman 500 4x4 HO (2013)
• Sportsman 550 (2011-2013)
• Sportsman 550 EPS (2011-2014)
• Sportsman 550 X2 (2011-2014)
• Sportsman 550 X2 EPS LE (2014)
• Sportsman 550 X2 INTL (2014)
• Sportsman 550 XP (2013-2014)
• Sportsman 550 XP EPS HD INTL (2014)
• Sportsman 570 6x6 (2017)
• Sportsman 570 6x6 Tractor (2017)
• Sportsman 570 EFI (2014-2017)
• Sportsman 570 EFI EPS (2014-2015)
• Sportsman 570 EFI EPS Forest Quad (2015)
• Sportsman 570 EFI EPS Forest Tractor (2015)
• Sportsman 570 EFI EPS MD (2015)
• Sportsman 570 EFI HD (2016-2017)
• Sportsman 570 EFI MD (2015-2017)
• Sportsman 570 EFI UTE (2017)
• Sportsman 570 EFI UTE HD (2015-2016)
• Sportsman 570 EFI UTE HD EPS (2014)
• Sportsman 570 EFI UTE MD (2016)
• Sportsman 570 EFI UTE Tractor (2016)
• Sportsman 570 EFI X2 EPS (2015-2017)
• Sportsman 570 EFI X2 EPS EU (2015)
• Sportsman 570 EPS Quad (2016)
• Sportsman 570 EPS Tractor (2016)
• Sportsman 570 EPS UTE Quad (2016)
• Sportsman 570 EPS ZUG (2016-2017)
• Sportsman 570 HD (2015)
• Sportsman 570 HD EFI (2014)
• Sportsman 570 SP (2015-2017)
• Sportsman 570 SP EPS Quad (2015-2016)
• Sportsman 570 SP EPS Tractor (2015-2016)
• Sportsman 570 SP MD (2015-2016)
• Sportsman 570 Tractor (2016-2017)
• Sportsman 570 X2 EPS MD (2017)
• Sportsman 570 X2 EPS Tractor (2017)
• Sportsman 800 EFI (2014)
• Sportsman 800 EFI 6x6 Forest (2013-2014)
• Sportsman 800 EFI Forest (2014)
• Sportsman Forest 500 Tractor (2013-2014)
• Sportsman Forest 570 (2014)
• Sportsman Forest 570 EFI EPS (2014-2015)
• Sportsman Forest 800 EFI (2013)
• Sportsman Forest 850 (2011-2015)
• Sportsman Forest 850 EU (2015)
• Sportsman Touring 1000 (2015)
• Sportsman Touring 500 (2013)
• Sportsman Touring 550 EPS (2010-2014)
• Sportsman Touring 570 EFI (2014-2017)
• Sportsman Touring 570 EFI EPS (2015-2016)
• Sportsman Touring 570 EFI EPS Built After 8/29 (2017)
• Sportsman Touring 570 EFI EPS Built Before 8/29 (2017)
• Sportsman Touring 570 EFI EPS MD (2016-2017)
• Sportsman Touring 570 EFI EPS Tractor (2016)
• Sportsman Touring 570 EFI EU (2015)
• Sportsman Touring 570 EFI INTL (2014)
• Sportsman Touring 570 EFI MD (2015)
• Sportsman Touring 570 EPS Quad (2016)
• Sportsman Touring 570 EPS Tractor (2017)
• Sportsman Touring 570 SP (2015-2017)
• Sportsman Touring EPS 850 (2010-2013)
• Sportsman XP 850 (2009-2010)
• Sportsman XP 850 EPS (2009-2010)

CV Boot Repair Kit - Rear, Outer:

Polaris:

• Sportsman XP 850 EPS (2012)

CV Boot Repair Kit - Front, Inner:

Polaris:

• ACE 570 (2015)
• Forest 800 6x6 (2015)
• Sportsman 325 ETX EFI (2015)
• Sportsman 400 HO 4x4 (2013-2014)
• Sportsman 450 EFI MD (2016)
• Sportsman 450 EPS Quad (2016)
• Sportsman 450 EPS ZUG (2016)
• Sportsman 450 HO (2016-2017)
• Sportsman 450 Tractor (2016)
• Sportsman 500 4x4 HO (2013)
• Sportsman 550 EPS (2010)
• Sportsman 550 X2 (2010)
• Sportsman 550 XP (2010)
• Sportsman 550 XP Built After 12/1/08 (2009)
• Sportsman 550 XP Built Before 12/1/08 (2009)
• Sportsman 570 6x6 (2017)
• Sportsman 570 6x6 Tractor (2017)
• Sportsman 570 EFI (2014-2017)
• Sportsman 570 EFI EPS (2014-2015)
• Sportsman 570 EFI EPS Forest Quad (2015)
• Sportsman 570 EFI EPS Forest Tractor (2015)
• Sportsman 570 EFI EPS MD (2015)
• Sportsman 570 EFI HD (2016-2017)
• Sportsman 570 EFI MD (2015-2017)
• Sportsman 570 EFI UTE (2017)
• Sportsman 570 EFI UTE HD (2015-2016)
• Sportsman 570 EFI UTE HD EPS (2014)
• Sportsman 570 EFI UTE MD (2016)
• Sportsman 570 EFI UTE Tractor (2016)
• Sportsman 570 EFI X2 EPS (2015-2017)
• Sportsman 570 EFI X2 EPS EU (2015)
• Sportsman 570 EPS Quad (2016)
• Sportsman 570 EPS Tractor (2016)
• Sportsman 570 EPS UTE Quad (2016)
• Sportsman 570 EPS ZUG (2016-2017)
• Sportsman 570 HD (2015)
• Sportsman 570 HD EFI (2014)
• Sportsman 570 SP (2015-2017)
• Sportsman 570 SP EPS Quad (2015-2016)
• Sportsman 570 SP EPS Tractor (2015-2016)
• Sportsman 570 SP MD (2015-2016)
• Sportsman 570 Tractor (2016-2017)
• Sportsman 570 X2 EPS MD (2017)
• Sportsman 570 X2 EPS Tractor (2017)
• Sportsman 800 EFI (2014)
• Sportsman 800 EFI 6x6 Forest (2013-2014)
• Sportsman 800 EFI Forest (2014)
• Sportsman Forest 500 Tractor (2013-2014)
• Sportsman Forest 570 (2014)
• Sportsman Forest 570 EFI EPS (2014-2015)
• Sportsman Forest 800 EFI (2013)
• Sportsman Forest 850 (2011-2015)
• Sportsman Forest 850 EU (2015)
• Sportsman Touring 500 (2013)
• Sportsman Touring 570 EFI (2014-2017)
• Sportsman Touring 570 EFI EPS (2015-2016)
• Sportsman Touring 570 EFI EPS Built After 8/29 (2017)
• Sportsman Touring 570 EFI EPS Built Before 8/29 (2017)
• Sportsman Touring 570 EFI EPS MD (2016-2017)
• Sportsman Touring 570 EFI EPS Tractor (2016)
• Sportsman Touring 570 EFI EU (2015)
• Sportsman Touring 570 EFI INTL (2014)
• Sportsman Touring 570 EFI MD (2015)
• Sportsman Touring 570 EPS Quad (2016)
• Sportsman Touring 570 EPS Tractor (2017)
• Sportsman Touring 570 SP (2015-2017)
• Sportsman Touring EPS 850 (2010-2013)
• Sportsman XP 850 (2009-2010)
• Sportsman XP 850 EPS (2009-2010)

Cross Reference Numbers for All Balls Part No 19-5019:

• Ensure compatibility with your specific model and year using the above fitment details. For further assistance, check with the manufacturer or supplier to verify compatibility.
