CV BOOT KIT HONDA TRX420 500, ALLBALLS 19-5007 SIZE 16x56x70
  • CV BOOT KIT HONDA TRX420 500, ALLBALLS 19-5007 SIZE 16x56x70
  • CV BOOT KIT HONDA TRX420 500, ALLBALLS 19-5007 SIZE 16x56x70
  • CV BOOT KIT HONDA TRX420 500, ALLBALLS 19-5007 SIZE 16x56x70
  • CV BOOT KIT HONDA TRX420 500, ALLBALLS 19-5007 SIZE 16x56x70
  • CV BOOT KIT HONDA TRX420 500, ALLBALLS 19-5007 SIZE 16x56x70
  • CV BOOT KIT HONDA TRX420 500, ALLBALLS 19-5007 SIZE 16x56x70
CV BOOT KIT HONDA TRX420 500, ALLBALLS 19-5007 SIZE 16x56x70

CV BOOT KIT HONDA TRX420 500, ALLBALLS 19-5007 SIZE 16x56x70

£16.38 GBP
Taxes included. Shipping calculated at checkout.

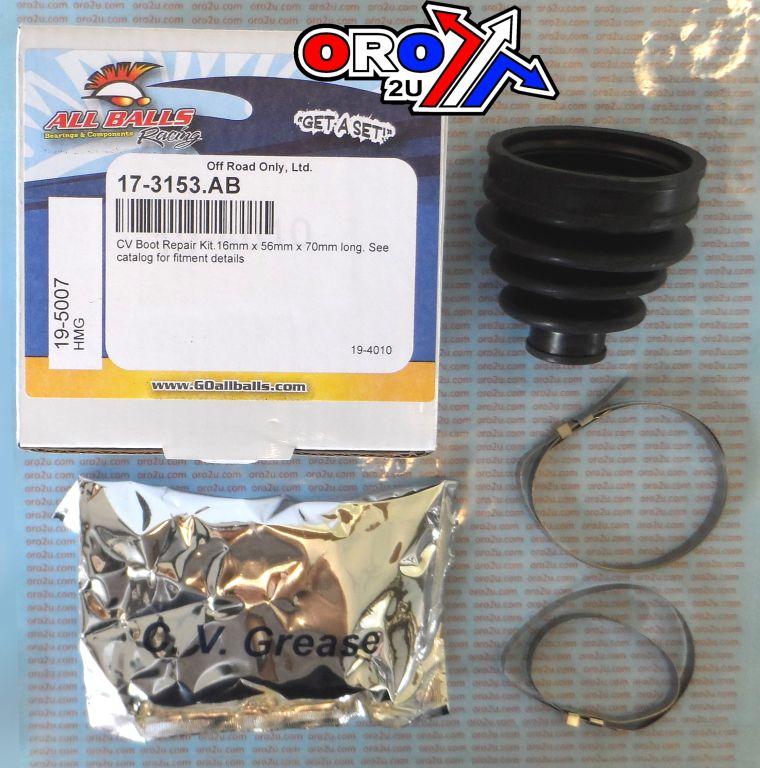

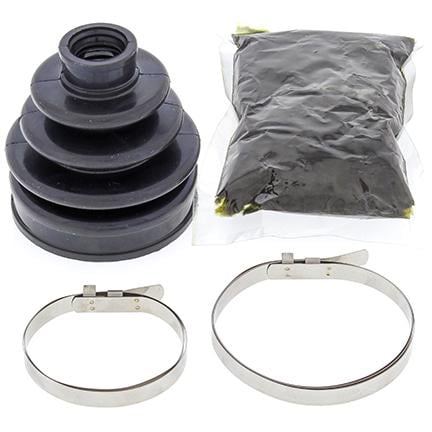

AllBalls CV Boot Repair Kit - 19-5007

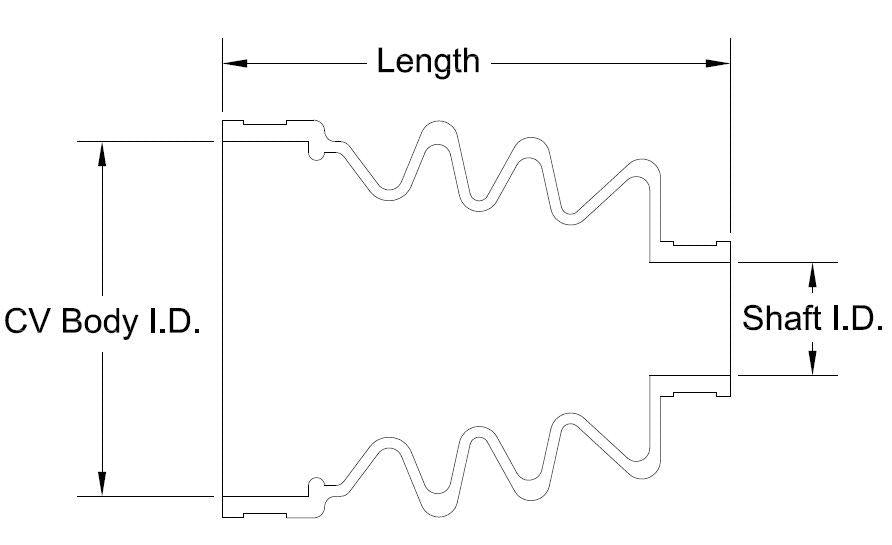

Size:

  • Shaft ID: 16mm
  • CV Body ID: 56mm
  • Length: 70mm

Features:

  • Grease: Includes Molybdenum Grease, which is lithium-based for increased CV joint life.
  • Material: The boot material has 50% greater abrasion resistance and 40% higher tensile strength compared to conventional materials.
  • Clamps: Comes with two stainless steel clamps for easy installation without special tools.

Applications:

Front, Inner:

Honda:

  • TRX350FE (2000-2006)
  • TRX350FM Fourtrax Rancher (2000-2006)
  • TRX420 FA IRS (2009-2014)
  • TRX420 FE (2007-2013)
  • TRX420 FM (2007-2013)
  • TRX420 FPA IRS (2009-2014)
  • TRX420 FPE (2011-2013)
  • TRX420 FPM (2011-2013)
  • TRX500FA (2005-2014)
  • TRX500FE (2005-2013)
  • TRX500FGA (2005-2008)
  • TRX500FM (2005-2013)
  • TRX500FPA (2009-2014)
  • TRX500FPE (2007-2013)
  • TRX500FPM (2008-2013)
  • TRX650 Rincon (2005)
  • TRX680 Rincon (2006-2018)

Kawasaki:

  • KVF650 I Brute Force (2006-2008)
  • KVF700 Prairie (2004-2006)
  • KVF750 Brute Force (2005-2007)

Suzuki:

  • LT-A400F Eiger 4WD (2004-2007)
  • LT-A500F Vinson (2003-2007)
  • LT-F400F Eiger 4WD (2005-2007)
  • LT-F500F Vinson (2003-2007)
  • LTV-700F Twin Peaks (2004-2006)

Yamaha:

  • 450 Rhino (2006-2009)
  • 660 Rhino (2004-2007)
  • Kodiak 450 4WD (2018)
  • Kodiak 450 EPS 4WD (2018)
  • Kodiak 450 EPS 4WD Armor Grey (2018)
  • YFM350 Grizzly IRS (2007-2011)
  • YFM350FGW Grizzly 4WD (2012-2014)
  • YFM400 Big Bear IRS (2007-2012)
  • YFM450 Grizzly EPS (2011-2014)
  • YFM450 Grizzly IRS (2008-2014)
  • YFM550 Grizzly (2014)
  • YFM550 Grizzly EPS (2014)

Front, Outer:

Kawasaki:

  • KVF360A Prairie 4x4 (2006-2008)
  • KVF360C Prairie 4x4 (2006-2008)
  • KVF650 Brute Force (2005-2008)

Suzuki:

  • LT-A400F Eiger 4WD (2004)
  • LT-A500F Vinson (2003-2005)
  • LT-F500F Vinson (2003-2005)

Yamaha:

  • YFM660 Grizzly (2003-2008)

Summary:

The AllBalls CV Boot Repair Kit 19-5007 is designed to fit a wide range of ATVs and UTVs. The kit's high-strength, abrasion-resistant material and lithium-based grease ensure long-lasting protection for your CV joints. It includes everything needed for a complete repair with easy installation using standard tools.
