CONNECTING ROD YFM450 GRIZZLY, HOTRODS 8703 KODIAK RHINO
£128.59 GBP
Taxes included.
Hot Rods Connecting Rod Kit - 8703
This heavy-duty connecting rod kit is an OE replacement designed for strength, durability, and reliability in high-performance applications. Manufactured from certified 8620 AISI steel and case-hardened to 58-62 RC, it ensures superior performance under demanding conditions. The kit includes all necessary components for a complete rebuild and is compatible with both Hot Rods and OE crankshafts.
Features:
- Made from certified 8620 AISI steel for superior strength.
- Case-hardened to 58-62 RC for durability.
- Big-end design incorporates side scalloping and vent slots to minimize high-rpm bearing race distortion.
- Crankpins are made from hot-rolled ASTM 4115 and case-hardened.
- Caged needle roller bearing design ensures longevity at high RPMs.
- Silver-coated bronze phosphor thrust washers provide additional durability.
- Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
- Compatible with both Hot Rods and OE crankshafts.
- Made in the USA.
Specifications:
- Big End Bore Ø: 43.00 mm
- Big End Width: Not specified
- Pin Diameter: 35.00 mm
- Pin Length: 61.80 mm
- Center to Center: 121.50 mm
- Small End Bore Ø: 20.00 mm
- Small End Width: Not specified
- Washer Thickness: 1.00 mm

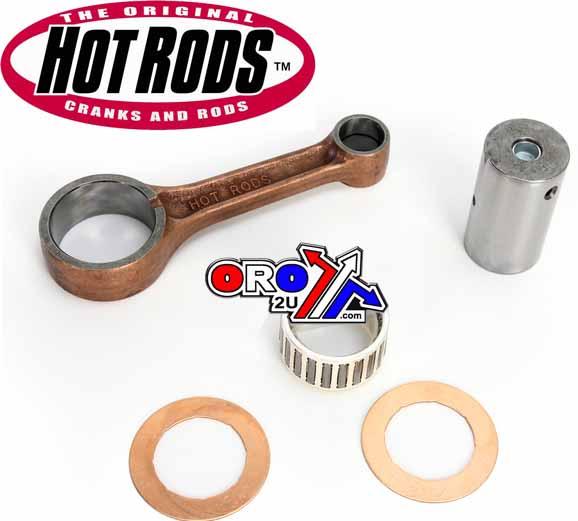

Included Items:
- (1) Connecting rod
- (1) Crankpin
- (1) Roller bearing
- (2) Thrust washers
Cross-Reference OEM Part Numbers:
- YAMAHA: 5GH-11651-01-00
Vehicle Fitments:
Yamaha ATV:
- YFM450 Grizzly: 2007–2014
- YFM450 Kodiak: 2003–2006
- YFM450 Wolverine: 2006–2010
Yamaha UTV:
- YXR450 Rhino: 2006–2009
Part Number:
56-9014.HR
