CONNECTING ROD YB125 137-11651-00, MAZZUCCHELLI BCO0530 Made in Italy
£125.90 GBP
Taxes included.
YAMAHA YB125 A7 YA5 YA6,

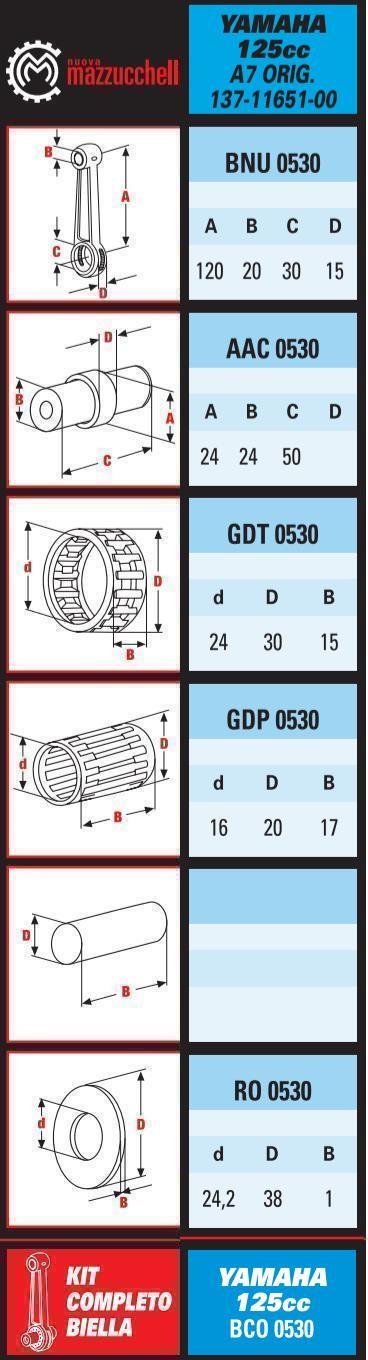

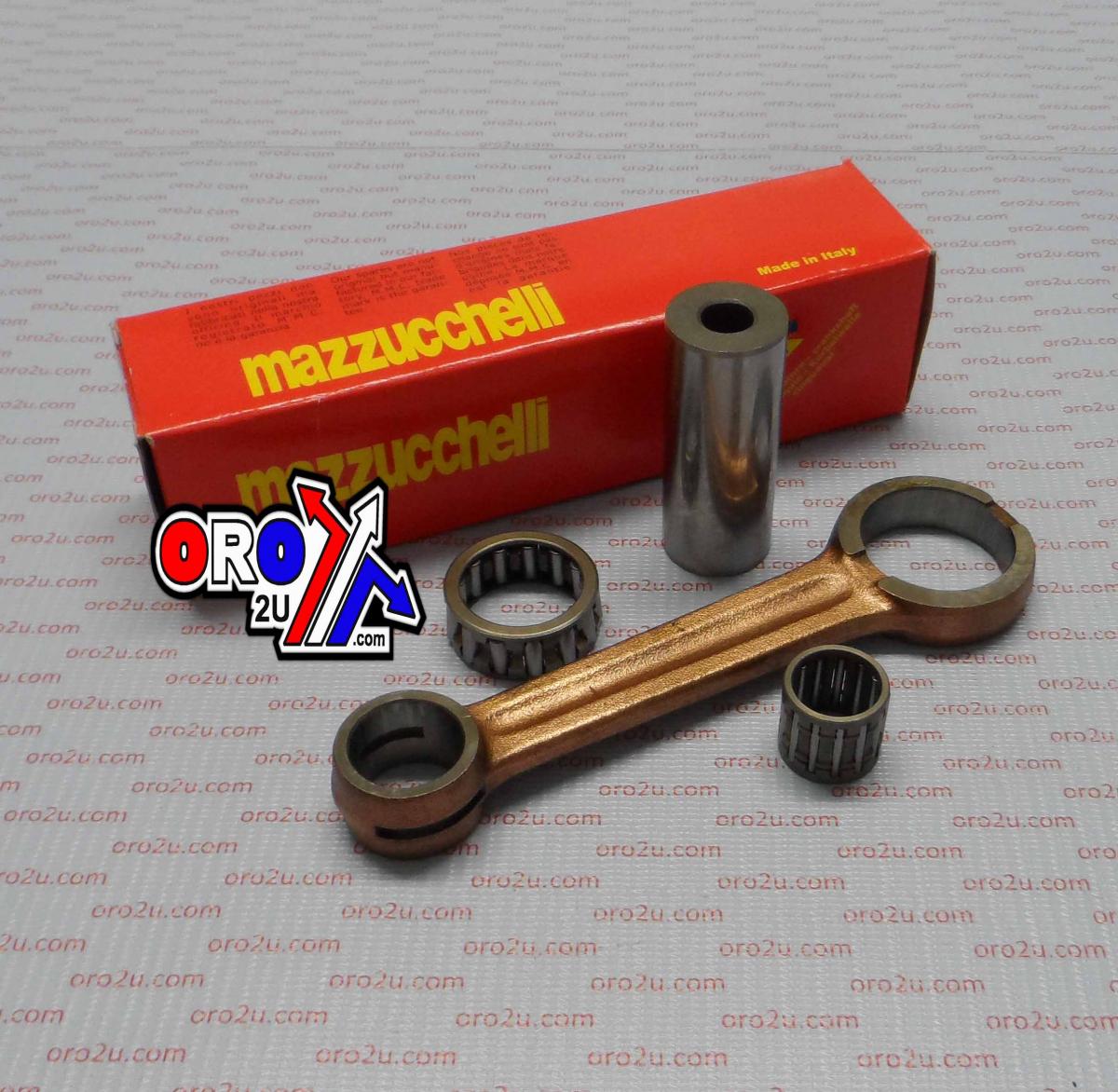

CONNECTING ROD KIT MAZZUCCHELLI BCO0530
.
| SIZE |
MM |
|
Centre 2 Centre |
120 |
|
Small End Bearing |
16x20x17 |
|
Small End Bore Ø |
20 |
|
Small End Width |
15 |
|
Big End Bearing |
24x30x15 |
|
Big End Bore Ø |
30 |
|
Big End Width |
15 |
|
Big End Pin Ø |
24 |
|
Big End Pin Length |
50 |
|
Washer Thickness |
24x38x1 |
.
- Meets or exceeds OEM quality.
- Direct oem replacement.
- Best value for money
- All are made to OEM specifications and match the original equipment in appearance.
- ORO products are a high quality replacement part and carries our guarantee of your satisfaction.
- Please check the image before ordering to avoid mistakes.

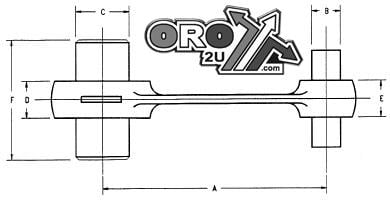

SEE IMAGE FOR KEY. SIZE A 120mm, B 16mm, C 24mm, D 15mm, E ***, F 50mm.
Part No. 56-941.MA (oro2u.com)
Cross reference numbers ONLY.
137-11651-00
S/SEED FROM 56-2946 TO 56-941.MA
