CONNECTING ROD TRX500FE, HOTRODS 8699 Honda ATV
£236.33 GBP
Taxes included.
High-quality replacement connecting rod kit designed for Honda TRX500 Foreman models, providing superior strength and reliability. Manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 RC for maximum durability. The advanced design incorporates strategically placed side scalloping and vent slots in the big end to minimize bearing race distortion at high RPMs. The rod is shot-peened to eliminate surface stress risers and double-honed to create an ultra-round bearing surface for enhanced reliability. Small ends are double-drilled to improve lubrication and cooling of the wrist pin bearing, critical under high-performance conditions. The kit is sold complete with all necessary components for assembly, including a rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
Features:
- Constructed from ASTM 4115 material and case-hardened to 58-62 RC.
- Side scalloping and vent slots minimize distortion at high RPM.
- Shot-peened finish eliminates surface stress risers.
- Double-honed for an ultra-round bearing surface and high reliability.
- Double-drilled small ends improve lubrication and cooling for wrist pin bearings.
- Includes all components for a complete rod assembly.

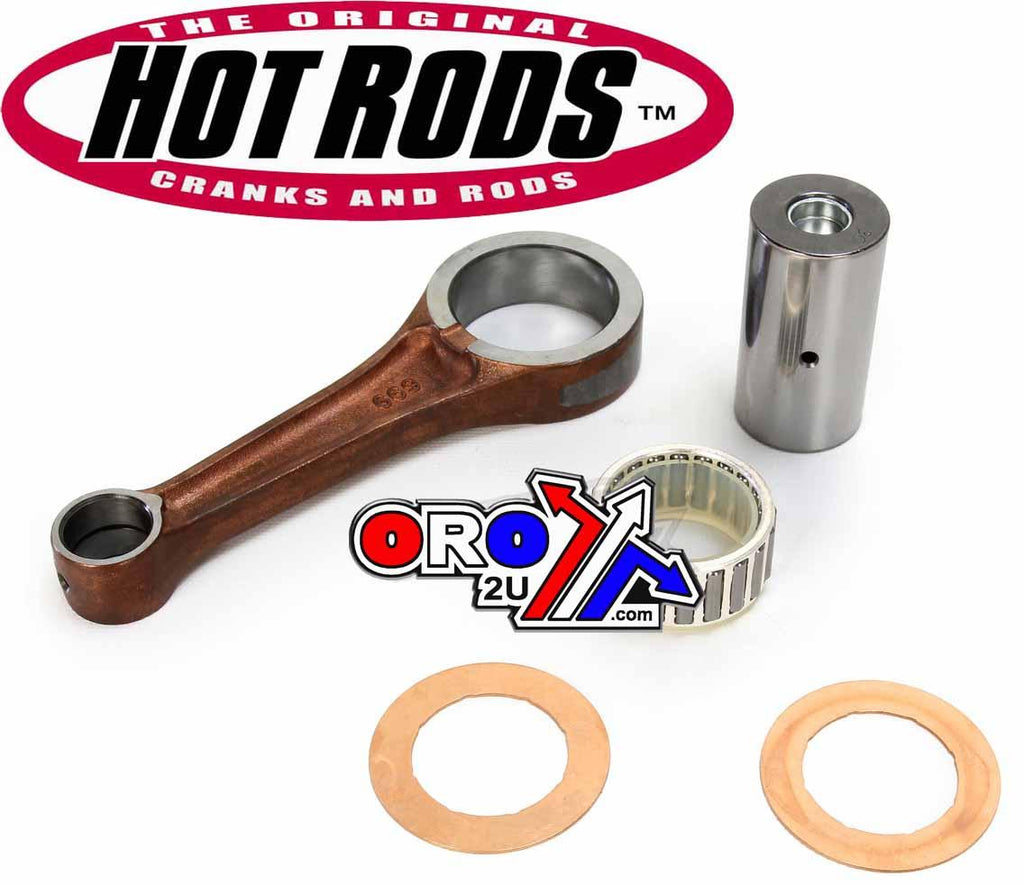

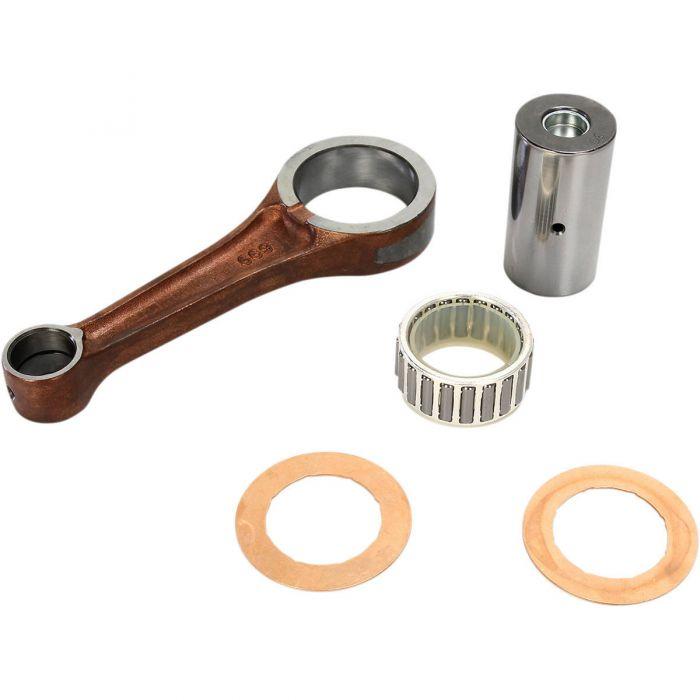

Included Items:
- (1) Connecting rod
- (1) Crank pin
- (1) Roller bearing
- (2) Thrust washers
Vehicle Compatibility:
- 2005-2011 Honda TRX500FE Fourtrax Foreman ES 4x4
- 2005-2008 Honda TRX500FM Fourtrax Foreman 4x4
- 2005-2006 Honda TRX500TM Fourtrax Foreman
Part Number: 56-8971.HR
