CONNECTING ROD TRX420 TRX500, HOTROD 8713 HONDA ATV
£153.67 GBP
Taxes included.
Premium Hot Rods connecting rod kit designed for Honda TRX420 Rancher and TRX500 Foreman models. Built with advanced engineering, this kit ensures reliable performance, durability, and precision, making it an ideal replacement for high-performance and demanding applications.
Features:
- Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for durability.
- Incorporates the latest caged needle roller bearing designs for high RPM reliability.
- Big end design includes side scalloping and vent slots to minimize bearing race distortion under high RPM conditions.
- Shot-peened to eliminate surface stress risers and blend rod forging radiuses.
- Double-honed bearing surfaces ensure ultra-roundness for high RPM performance.
- Small ends are double-drilled to enhance lubrication and cooling of the wrist pin bearing.
- Complete assembly includes rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
Specifications:
- Center-to-Center Length: 118 mm
- Big End Inner Diameter: 44 mm
- Big End Width: 20 mm
- Small End Inner Diameter: 19 mm
- Small End Width: 20 mm
- Crank Pin Length: 57 mm
- Washer Thickness: 1 mm

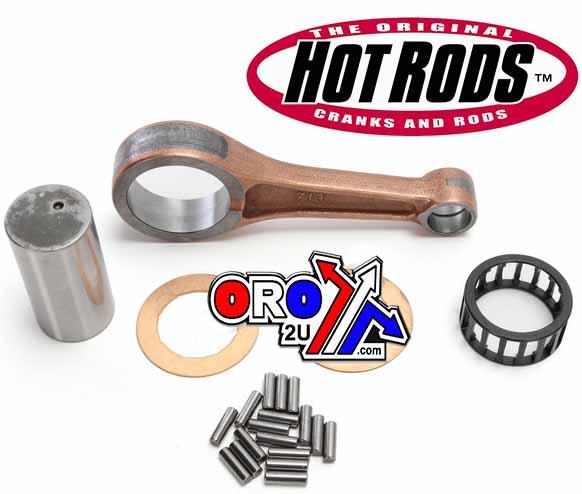

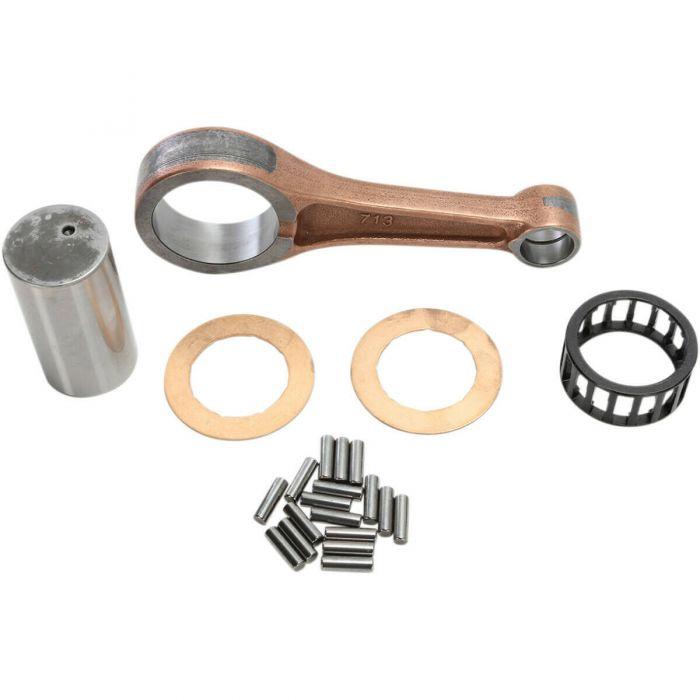

Included Components:
- (1) Connecting Rod
- (1) Crank Pin
- (1) Big-End Bearing
- (2) Thrust Washers
- (16) Bearing Rollers
Vehicle Compatibility:
Honda TRX420 Rancher:
- 2012 TRX420FE Rancher ES 4x4
- 2013 TRX420FE Rancher ES 4x4
- 2012 TRX420FM Rancher 4x4
- 2013 TRX420FM Rancher 4x4
- 2012 TRX420FPE Rancher ES 4x4 w/Power Steering
- 2013 TRX420FPE Rancher ES 4x4 w/Power Steering
- 2012 TRX420FPM Rancher 4x4 w/Power Steering
- 2013 TRX420FPM Rancher 4x4 w/Power Steering
- 2012 TRX420TE Rancher ES
- 2013 TRX420TE Rancher ES
- 2012 TRX420TM Rancher
- 2013 TRX420TM Rancher
Honda TRX500 Foreman:
- 2012 TRX500FE Foreman ES 4x4
- 2013 TRX500FE Foreman ES 4x4
- 2012 TRX500FM Foreman S 4x4
- 2013 TRX500FM Foreman S 4x4
- 2012 TRX500FPE Foreman ES 4x4 w/Power Steering
- 2013 TRX500FPE Foreman ES 4x4 w/Power Steering
- 2012 TRX500FPM Foreman 4x4 w/Power Steering
- 2013 TRX500FPM Foreman 4x4 w/Power Steering
