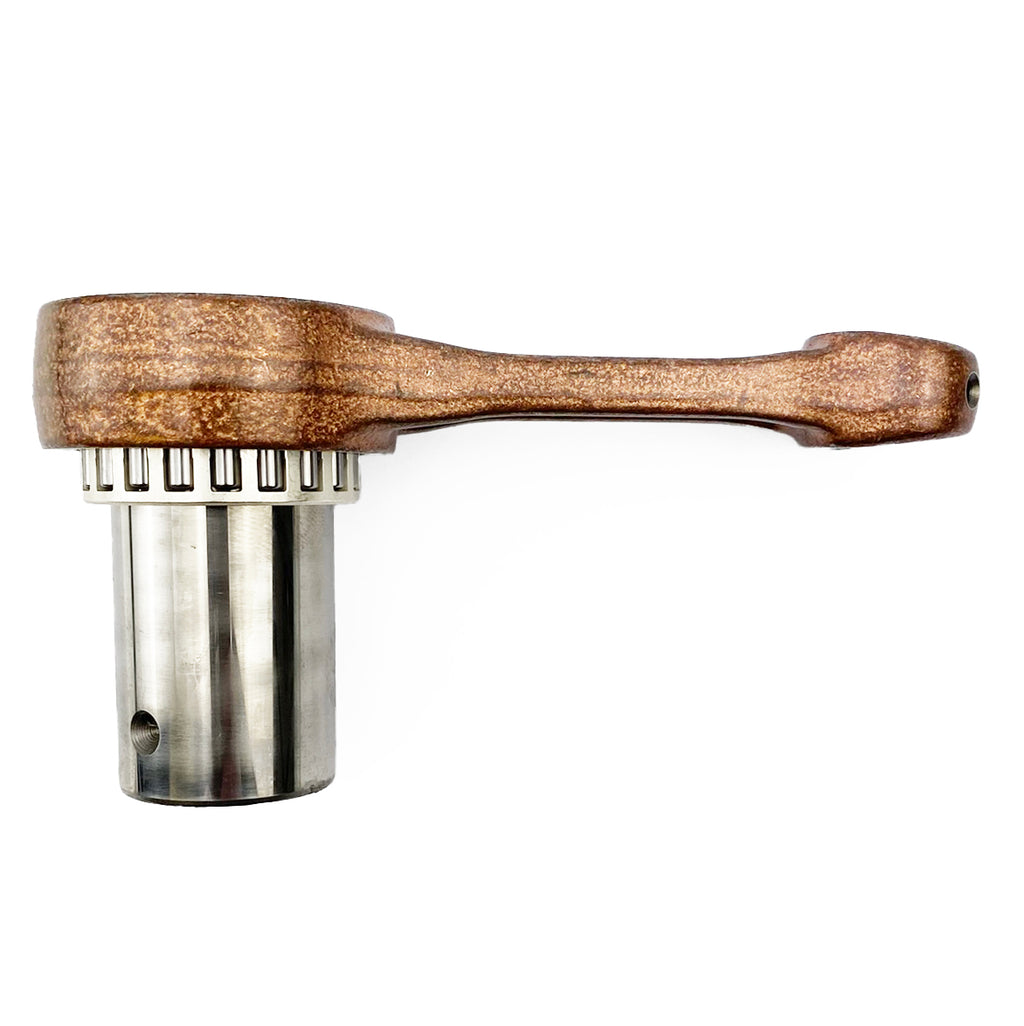

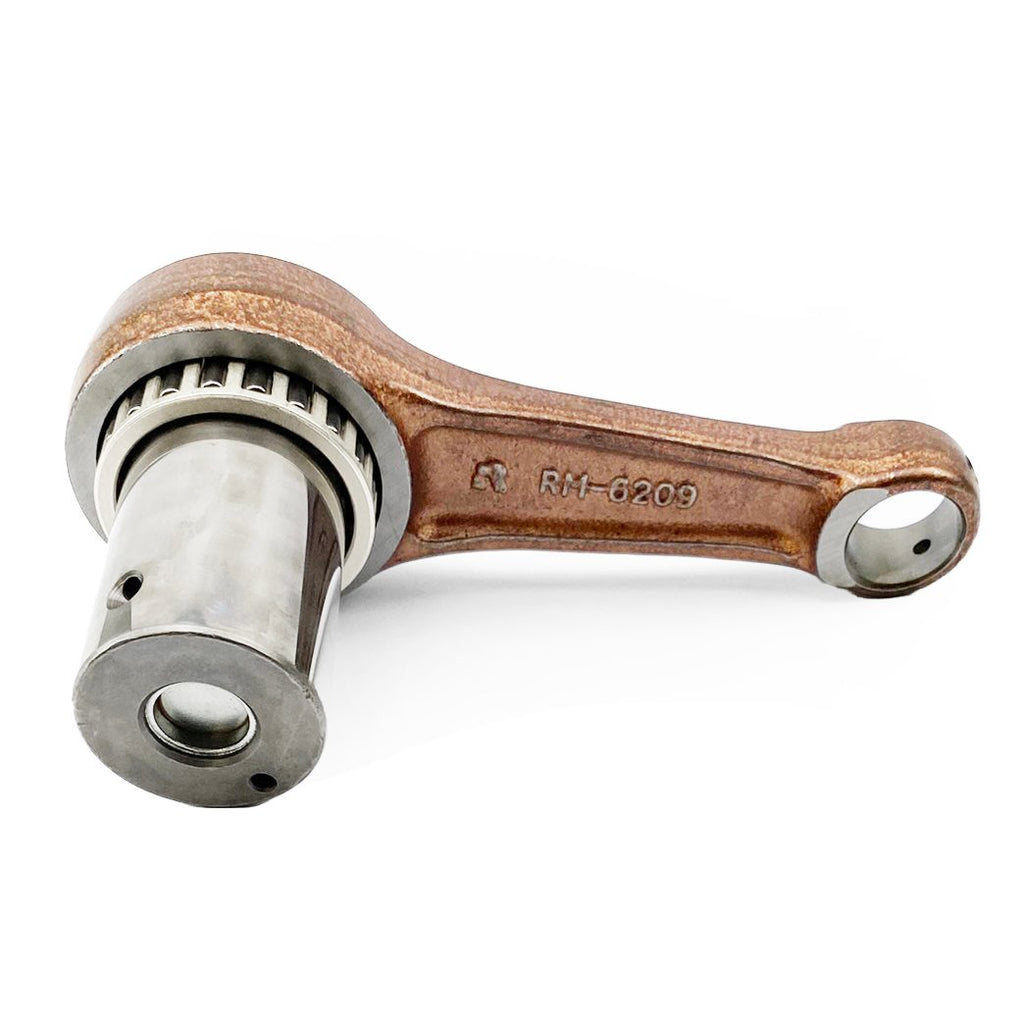

CONNECTING ROD SX-F350 KTM, NAMURA RX-70001 MX-09018, 77230015044

CONNECTING ROD SX-F350 KTM, NAMURA RX-70001 MX-09018, 77230015044

£93.04 GBP
Taxes included. Shipping calculated at checkout.

KTM
2011-12 350 SX-F
2010-12 350 EXC-F
2012-13 350 XCF-W
2011-12 350 XC-F
EXC-F 350 2010-2012 Pro Series

HUSABERG
2013-14 FE350

NAMURA CONNECTING ROD KIT – MX-09018

  • Heavy-duty OE replacement connecting rod designed for durability and performance.
  • Manufactured from certified chrome alloy steel for superior strength.
  • Crankpins made from hot-rolled ASTM steel and case-hardened for enhanced longevity.
  • Precision-engineered caged needle roller bearings ensure high RPM stability.
  • Thrust washers crafted from phosphor bronze with a silver coating for improved wear resistance.
  • Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as required.
  • Fully compatible with both aftermarket and OE crankshafts.
  • Material: SNCM220

Specifications (MM)

Center to Center: 102
Small End Bore Ø: 18
Small End Width: 17
Big End Bearing: 32x40x19.8
Big End Bore Ø: 40
Big End Width: 20
Big End Pin Ø: 32
Big End Pin Length: 60.00
Washer Thickness: None

Part No. 56-2984.NAM

Cross Reference Numbers:
77230015044, WOSSNER P4040, PROX 03.6351, HOTRODS 8693
