CONNECTING ROD RZR 1000, HOTRODS 8708 UTV POLARIS 1204907
£157.81 GBP
Taxes included.

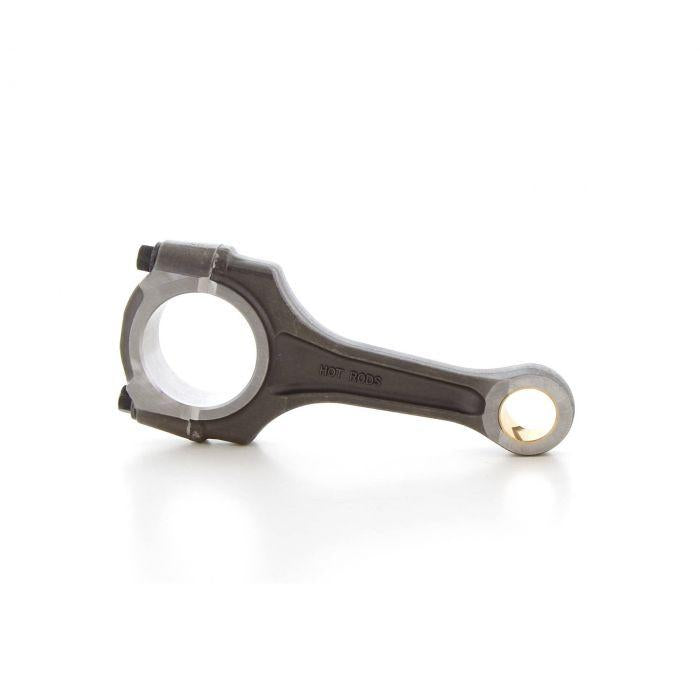

Hot Rods Connecting Rod Kit - 8708
This high-performance connecting rod kit is designed for demanding applications, delivering strength and durability under high-RPM conditions. Manufactured from hot-rolled ASTM 4115 steel and case-hardened for maximum durability, it includes all components required for installation and is compatible with both Hot Rods and OEM crankshafts.
Features:
- Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
- Caged needle roller bearing design for high-RPM reliability.
- Big-end features strategically placed scalloping and vent slots to minimize bearing race distortion.
- Shot-peened to remove surface stress risers and enhance strength.
- Double-honed for an ultra-round bearing surface, ensuring long-lasting performance.
- Small ends are double-drilled to improve wrist pin bearing lubrication and cooling.

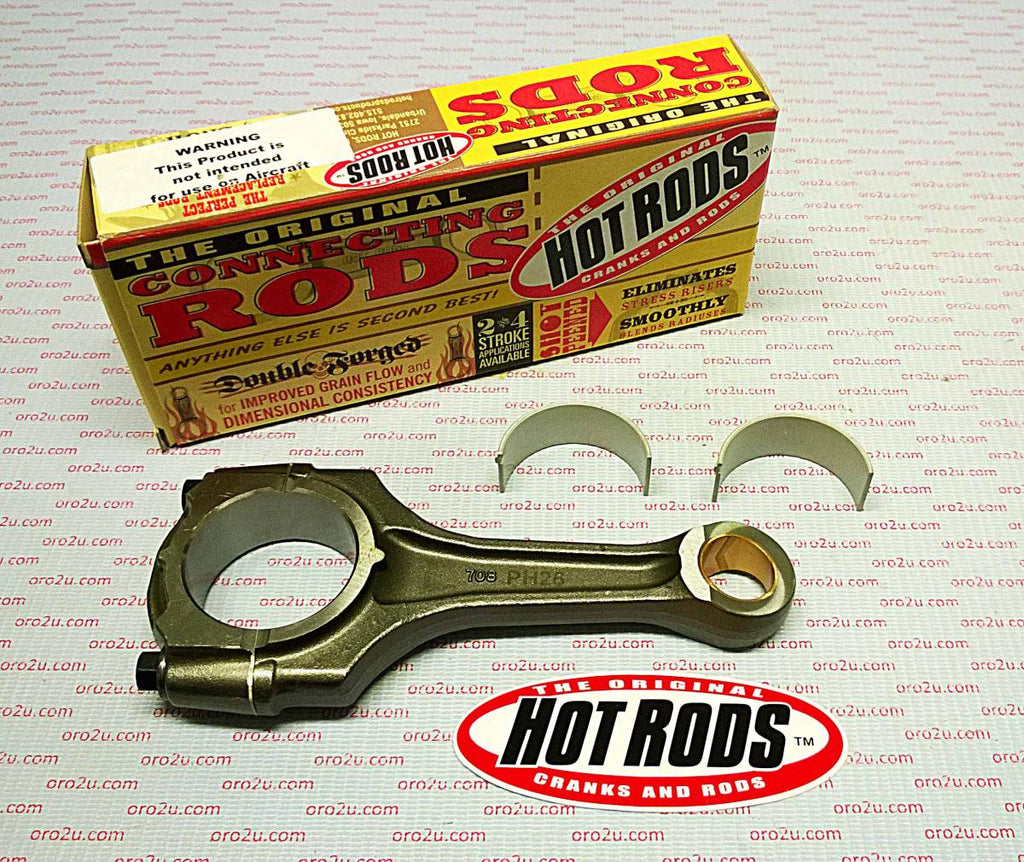

- Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
Specifications:
- Big End Bore Ø: 40.95 mm
- Center to Center: 124.85 mm
- Small End Bore Ø: 20.00 mm
Included Items:
- (1) Connecting rod
- (1) Crankpin
- (1) Roller bearing
- (2) Thrust washers
Cross-Reference OEM Part Numbers:
- POLARIS: 1204907
Vehicle Fitments:
Polaris UTV:
- RZR XP 1000: 2014–2016
- RZR 4 1000: 2014–2016
Part Number:
56-9015.HR
