CONNECTING ROD LTZ400 KFX400, HOT RODS 8630 SUZUKI KAWASAKI
£184.76 GBP
Taxes included.

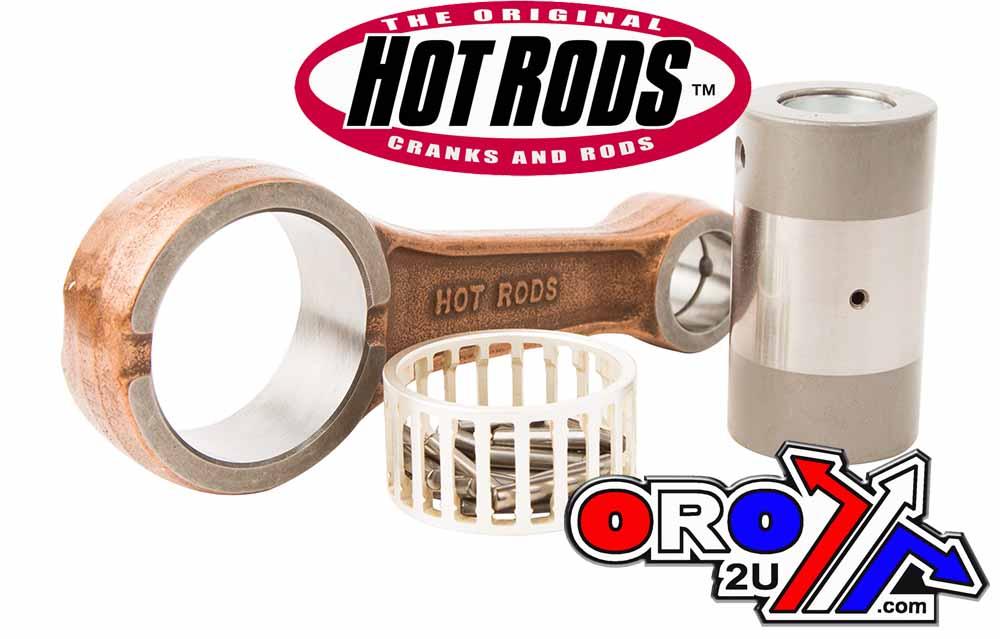

High-quality connecting rod kit designed for Arctic Cat, Kawasaki, and Suzuki models. Manufactured to meet or exceed OEM standards, ensuring durability, precision, and reliable performance.
Features:
- Includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a complete rebuild solution.
- Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for enhanced durability.
- Advanced design with strategically placed side scalloping and vent slots to reduce high RPM bearing race distortion.
- Double-forged rods provide improved grain flow and maintain dimensional consistency.
- Shot-peened and double-honed for superior strength under heavy loads.
- Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.
- Silver-coated thrust washers and crank pin bearings reduce friction and improve lubricity.
Cross-Reference OEM Part Numbers:
- Suzuki: 12160-29F01-0B0, 12160-29F02-0B0, 12160-29F10-0B0
- Kawasaki: 13032-S007, 13032-S010
- Arctic Cat: 3502-012
Vehicle Fitment:
Arctic Cat:
- DVX 400 (2004–2008, including Tony Stewart Edition models)
Kawasaki:
- KFX 400 (2003–2006)
Suzuki:
- DR-Z400 (2000–2018)
- DR-Z400SM (2000–2009)
- LT-Z400 QuadSport (2003–2018, including Limited and Special Editions)
Part Number: 56-137.HR
