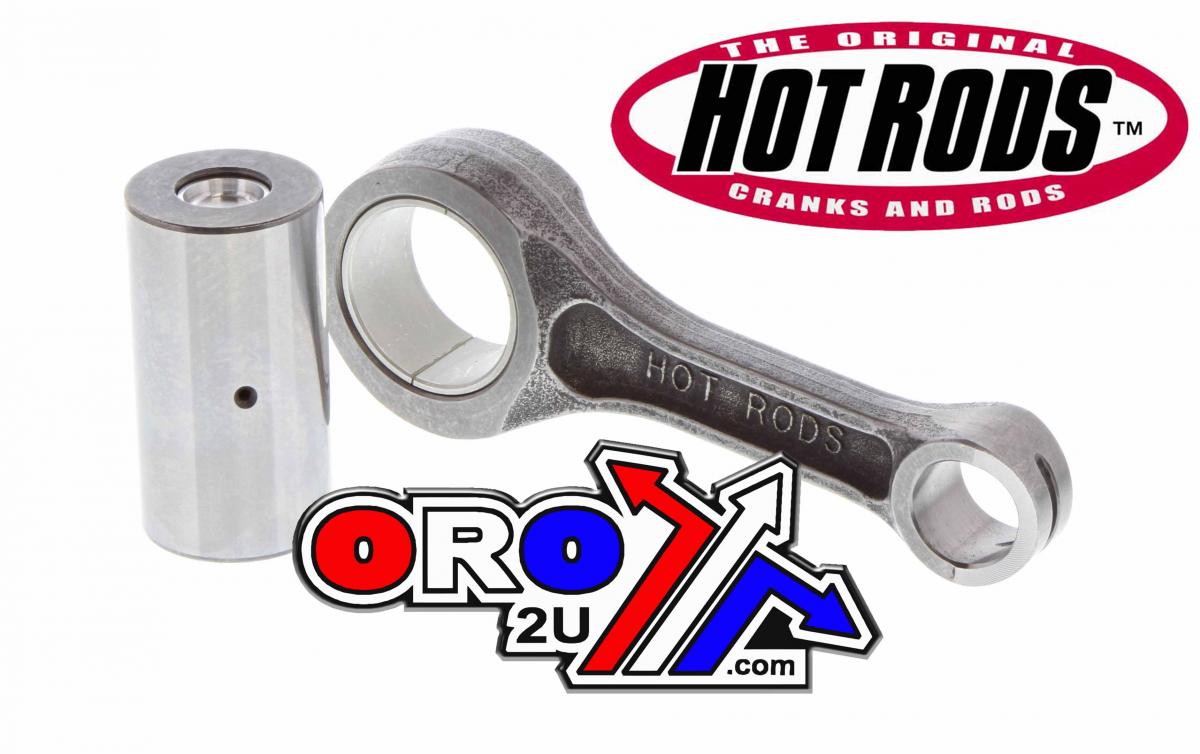

CONNECTING ROD KTM EXC-F350, HOTRODS 8710 77730015144
£308.16 GBP
Taxes included.
Heavy-duty connecting rod kit designed for KTM 350 EXC-F (2014-2016) and KTM 350 XCF-W (2014-2016) models. This high-performance OE replacement kit ensures reliability, strength, and durability for demanding applications, including all necessary components for a complete rebuild.
Features:
- Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength and durability.
- Double-forged rods improve grain flow and maintain dimensional consistency.
- Advanced caged needle roller bearing design ensures high-RPM performance.
- Big end design with side scalloping and vent slots minimizes bearing race distortion at high RPM.
- Shot-peened to eliminate surface stress risers and smoothly blend rod forging radiuses.
- Double-honed for ultra-round bearing surfaces, enhancing reliability at high RPM.
- Small ends are double drilled for additional lubrication and cooling of the wrist pin bearing.
- Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
Technical Specifications:
- Centre to Centre: 102.00 mm
- Big End Bore: 36.00 mm
- Pin Diameter: 32.00 mm
- Pin Length: 60.00 mm
- Small End Bore: 18.00 mm
Cross-Reference OEM Part Numbers:
KTM: 77830015044
Vehicle Fitment:
- KTM 350 EXC-F: 2014, 2015, 2016.
- KTM 350 XCF-W: 2014, 2015, 2016.
Part Number: 56-957.HR
