Connecting Rod KTM 250 300, Hot Rods 8669 Kit, 54830015244

The Hot Rods Connecting Rod Kit - 8669 is a high-quality rebuild kit designed for KTM and Husqvarna off-road models. Engineered for durability and performance, this kit ensures precise functionality and extended lifespan for your engine, even under demanding conditions.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional durability.
• Advanced side scalloping and vent slots reduce high-RPM bearing race distortion.
• Double-forged rods for improved grain flow and dimensional accuracy.
• Shot-peened and double-honed for enhanced strength under heavy loads.
• Double-drilled small ends for superior lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for added lubricity.
• Sold as a complete kit including rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

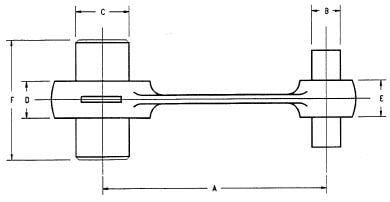

Technical Specifications:

• Big End Bore Diameter: 31.00 mm
• Center to Center Length: 124.90 mm
• Pin Diameter: 24.00 mm
• Pin Length: 59.80 mm
• Small End Bore Diameter: 22.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

• KTM: 54830015144, 54830015244, 54830015044
• Athena: P40321046
• Psychic: MX-09047
• Hot Rods: 8669
• ProX: 03.6323
• Wossner: P2023

Compatibility:

KTM Models:

• 250 EXC (2004-2013)
• 250 SX (2003-2020)
• 250 SXS (2003-2007)
• 250 XC (2004-2020)
• 250 XC-W (2004-2020)
• 300 EXC (2004-2011)
• 300 MXC (2004-2011)
• 300 XC (2004-2020)
• 300 XC-W (2004-2020)

Husqvarna Models:

• TC 250 (2014-2017)
• TE 250 (2014-2017)
• TE 300 (2014-2017)

Part Number:

56-127.HR
