CONNECTING ROD KIT YFM660R 02-, BRONCO AT-09174-2
£94.51 GBP
Taxes included.
YAMAHA ATV
YFM660R RAPTOR 2002-2005,
YFM660 GRIZZLY 2002-2008,
YAMAHA UTV
YXR660 RHINO 2004-2007,

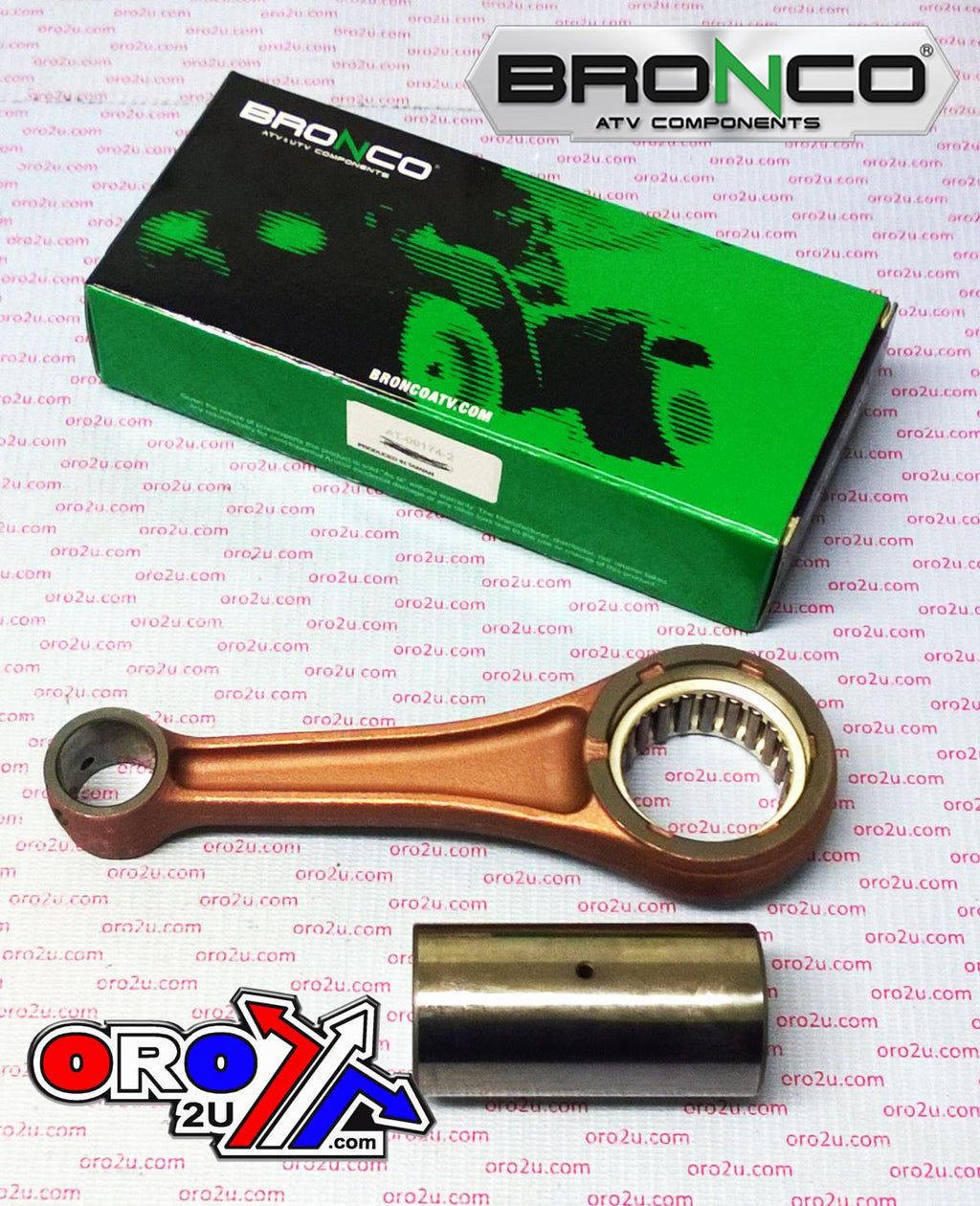

Connecting Rod Rebuild kit BRONCO AT-09174-2
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

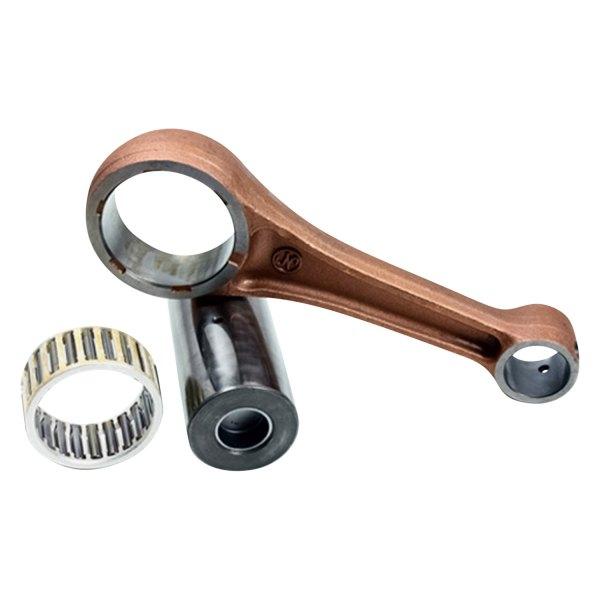

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
|
SIZE | MM |
| Centre 2 Centre | 136.50 |
| Small End Bearing | None |
| Small End Bore Ø | 22 |
| Small End Width | 22 |
| Big End Bearing | 37x45x21.80 |
| Big End Bore Ø | 45 |
| Big End Width | 22 |
| Big End Pin Ø | 37 |
| Big End Pin Length | 73.90 |
| Washer Thickness |
None |
CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 136.5, B = 22, C = 37, D = 22, E = 22, F = 73.90mm
Big End Crank pin Lenght 73.90mm
Part No. 56-207.DR (oro2u.com)
Cross reference numbers ONLY.
5LP-11651-00-00,
