CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm - Length 73.80mm
  • CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm - Length 73.80mm
  • CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm - Length 73.80mm
  • CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm - Length 73.80mm
  • CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm - Length 73.80mm
  • CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm - Length 73.80mm
  • CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm - Length 73.80mm
CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm - Length 73.80mm

CONNECTING ROD KIT YFM660R 01, BRONCO AT-09174 PIN 73.80mm, PIN DIA 37mm - Length 73.80mm

£85.60 GBP
Taxes included. Shipping calculated at checkout.

YAMAHA ATV
2001 YFM660R Raptor,

Connecting Rod Rebuild kit BRONCO AT-09174

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

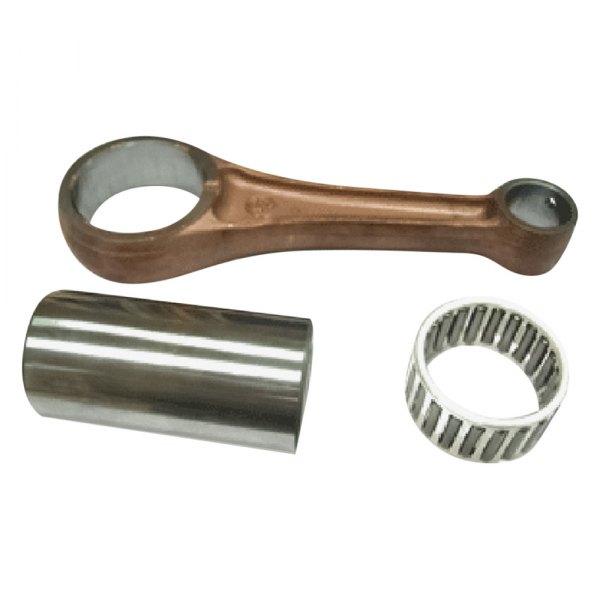

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
SIZE



MM

Centre 2 Centre

136.50

Small End Bearing

None

Small End Bore Ø

22

Small End Width

22

Big End Bearing

37x45x21.80

Big End Bore Ø

45

Big End Width

22

Big End Pin Ø

37

Big End Pin Length

73.80

Washer Thickness

 None

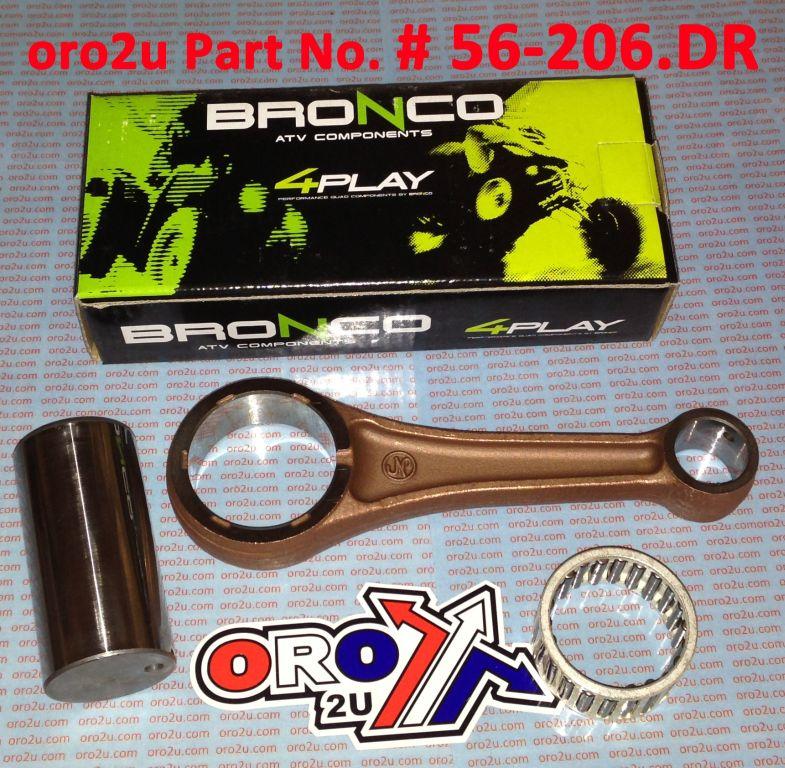

Part No.   56-206.DR   (Distributed oro2u.com)

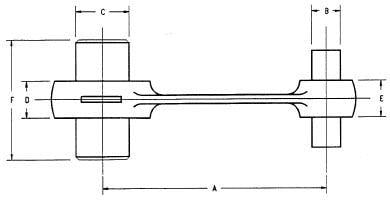

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 136.5, B = 22, C = 37, D = 22, E = 22, F = 73.80mm

Cross reference numbers ONLY.
VA2018 [73.8], 5LP-11651-00-00, HOTROD 8614, 5KM-11400-00-00
