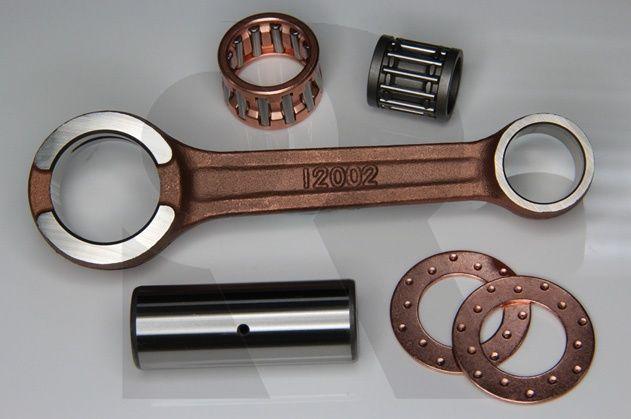

CONNECTING ROD KIT TS125ERZ, RS-3010 12161-12002 SUZUKI, 74-80 RM125, TM

Part No. 56-2949 (oro2u.com)
TS-100/TS125ERZ,
Suzuki Connecting Rod 75-78 RM125 TS125 12161-12002
RM100 1976-78
PART NO. 12161-12002

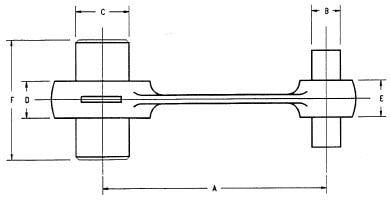

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 100, B = 14, C = 18, D = 16, E = 18, F = 56
PIN: DIA. 19 ? L 56
SMALL END BEARING:14*18*19.8
BIG END BEARING:19*25*15.8

WASHER: 32 ? 19.2 ? 1
