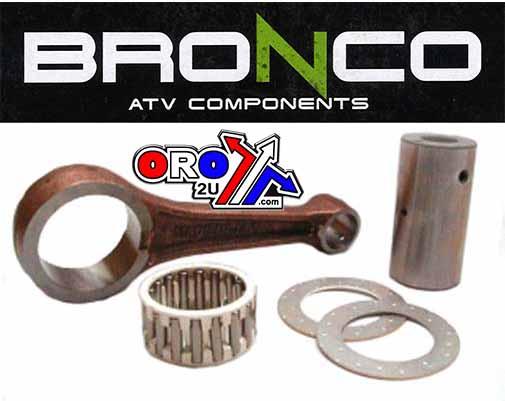

CONNECTING ROD KIT TRX400 450, BRONCO AT-09212
£52.88 GBP
Taxes included.
HONDA
TRX400FW 1995 - 2003,
TRX450S / ES 1998 - 2004,
CONNECTING CONROD ROD Rebuild kit. BRONCO AT-09212
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

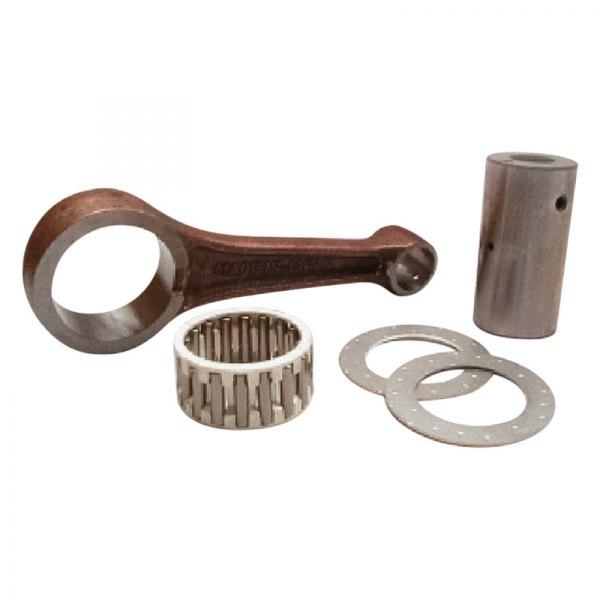

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
|
SIZE | MM |
| Centre 2 Centre | 122.40 |
| Small End Bearing | None |
| Small End Bore Ø | 19 |
| Small End Width | 20 |
| Big End Bearing | 33x41x19.50 |
| Big End Bore Ø | 41 |
| Big End Width | 20 |
| Big End Pin Ø | 33 |
| Big End Pin Length | 62.9 |
| Washer Thickness |
33x51x1.0 |
Part No. 56-214.DR (oro2u.com)
Cross reference numbers ONLY.
[Fits into 13000-HM7-000 / 13000-HN0-670]
TRX 400FW Foreman 4x41995 Honda TRX 400FW Foreman 4x4 1996 Honda TRX 400FW Foreman 4x4 1997 Honda TRX 400FW Foreman 4x4 1998 Honda TRX 400FW Foreman 4x4 1999 Honda TRX 400FW Foreman 4x4 2000 Honda TRX 400FW Foreman 4x4 2001 Honda TRX 400FW Foreman 4x4 TRX 450ES Foreman ES1998 Honda TRX 450ES Foreman ES 1999 Honda TRX 450ES Foreman ES 2000 Honda TRX 450ES Foreman ES 2001 Honda TRX 450ES Foreman ES
