Connecting Rod Kit Suzuki 87-06 LT80 02-07 Kawasaki Ksf 80 90 KFX Hot Rods 8603 12161-07901

This high-quality connecting rod kit delivers exceptional durability and performance, ideal for demanding applications. Engineered for strength and reliability, it incorporates advanced materials and design features to ensure optimal functionality in high-performance environments.

Features:

• Premium Material: Crafted from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced durability.
• Advanced Design: Side scalloping and vent slots reduce bearing race distortion at high RPMs.
• Double-Forged Construction: Enhances grain flow and dimensional consistency for superior reliability.
• Shot-Peened and Double-Honed: Ensures excellent strength under heavy loads.
• Improved Lubrication: Double-drilled small ends provide extra lubrication and cooling to the wrist pin bearing, ideal for pistons with crowns close to the bearing.
• Silver-Coated Components: Thrust washers and crank pin bearings are coated for increased lubricity.

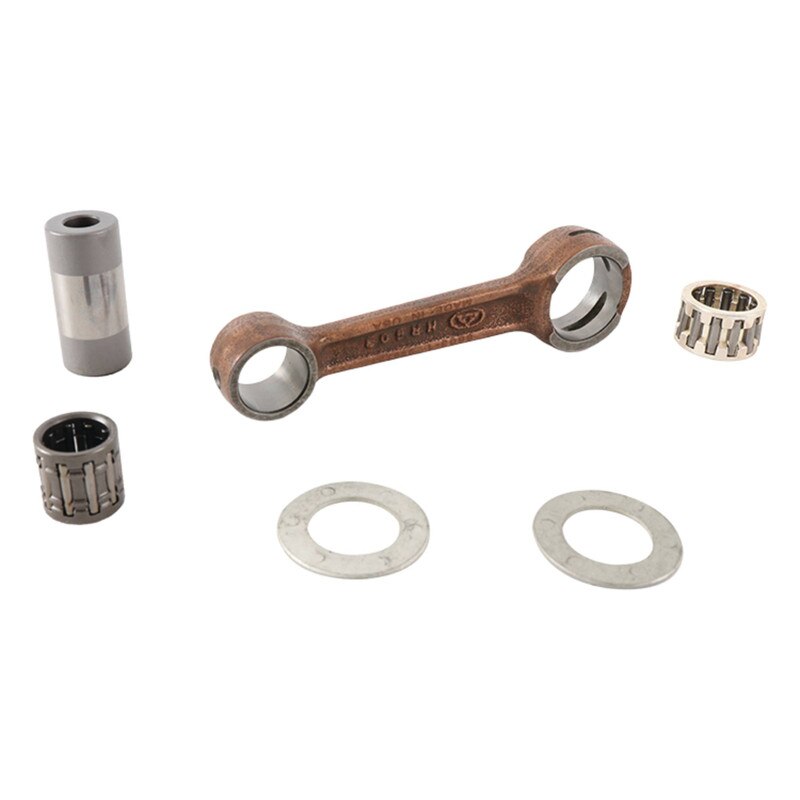

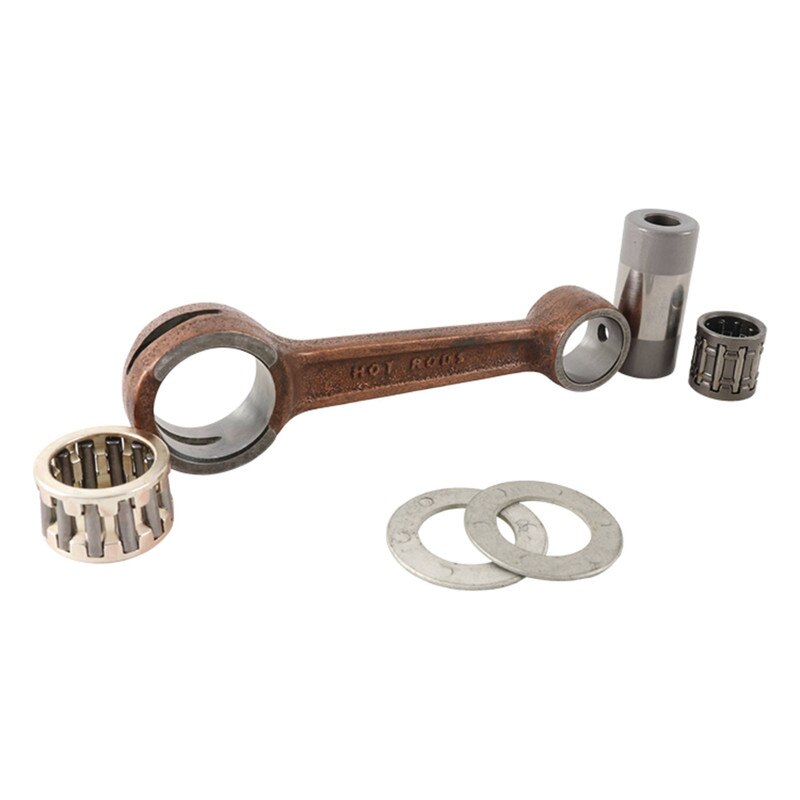

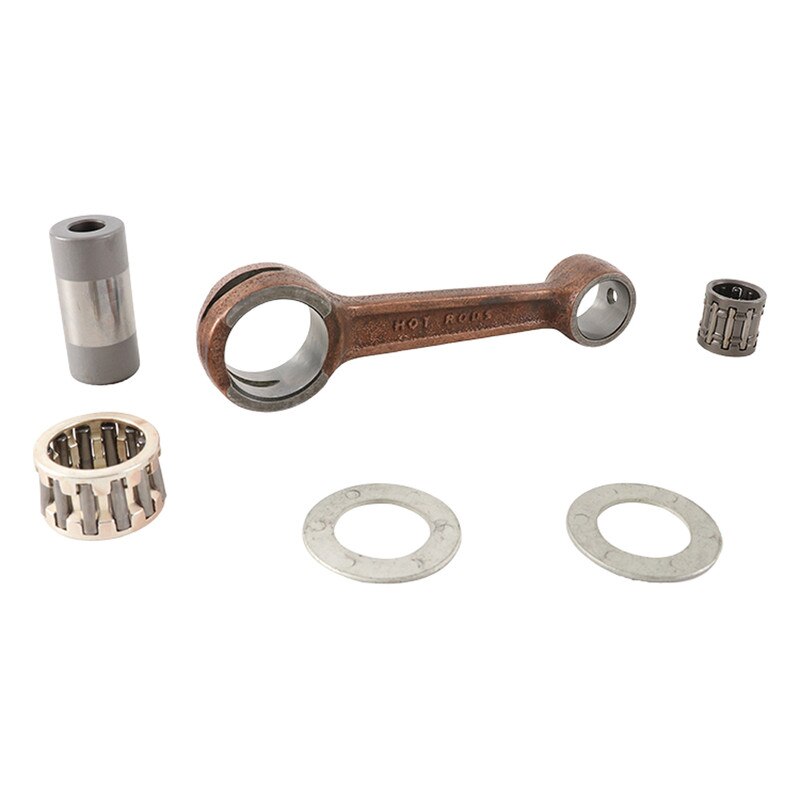

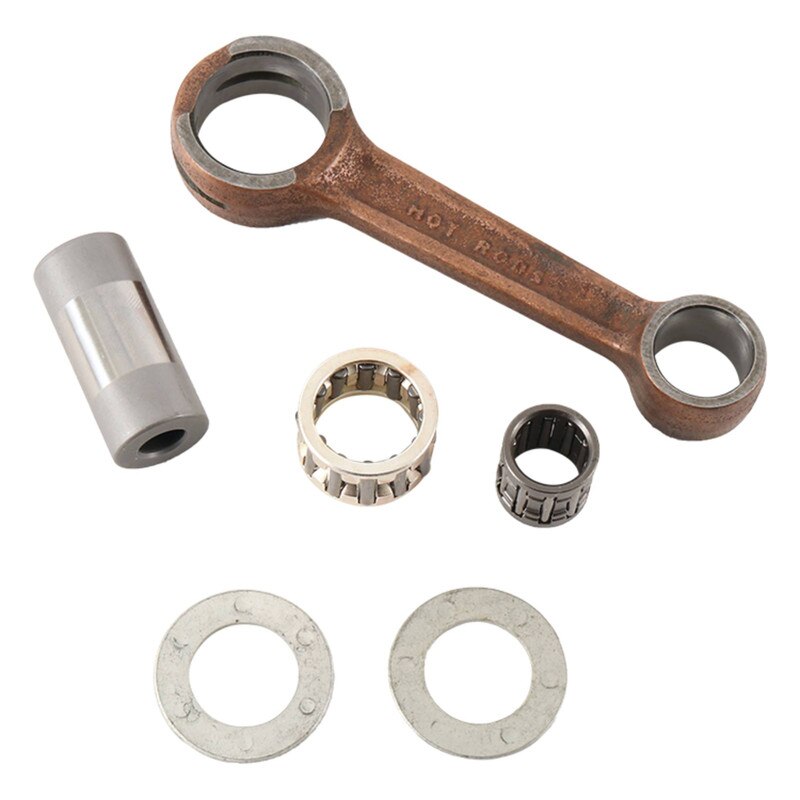

• Comprehensive Kit: Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Big End Bearing (mm):

• Big End Bore: 23.00 mm
• Center to Center: 85.00 mm
• Pin Diameter: 17.00 mm
• Pin Length: 36.70 mm

Small End Bearing (mm):

• Small End Bore: 16.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

• Suzuki: 12161-07901
• Kawasaki: 13032-S006
• Additional: VA-3008, 12161-07901

Vehicle Fitments:

Suzuki:

• 1987–2000 LT80 Quadrunner
• 2001–2006 LT80 Quad Sport

Kawasaki:

• 2002–2006 KSF80 KFX
• 2007 KSF90 KFX

Specific Years:

• Kawasaki KSF80 KFX: 2006, 2005, 2004, 2003
• Suzuki LT80 Quad Sport: 2006–1987

Part Number: 8603
