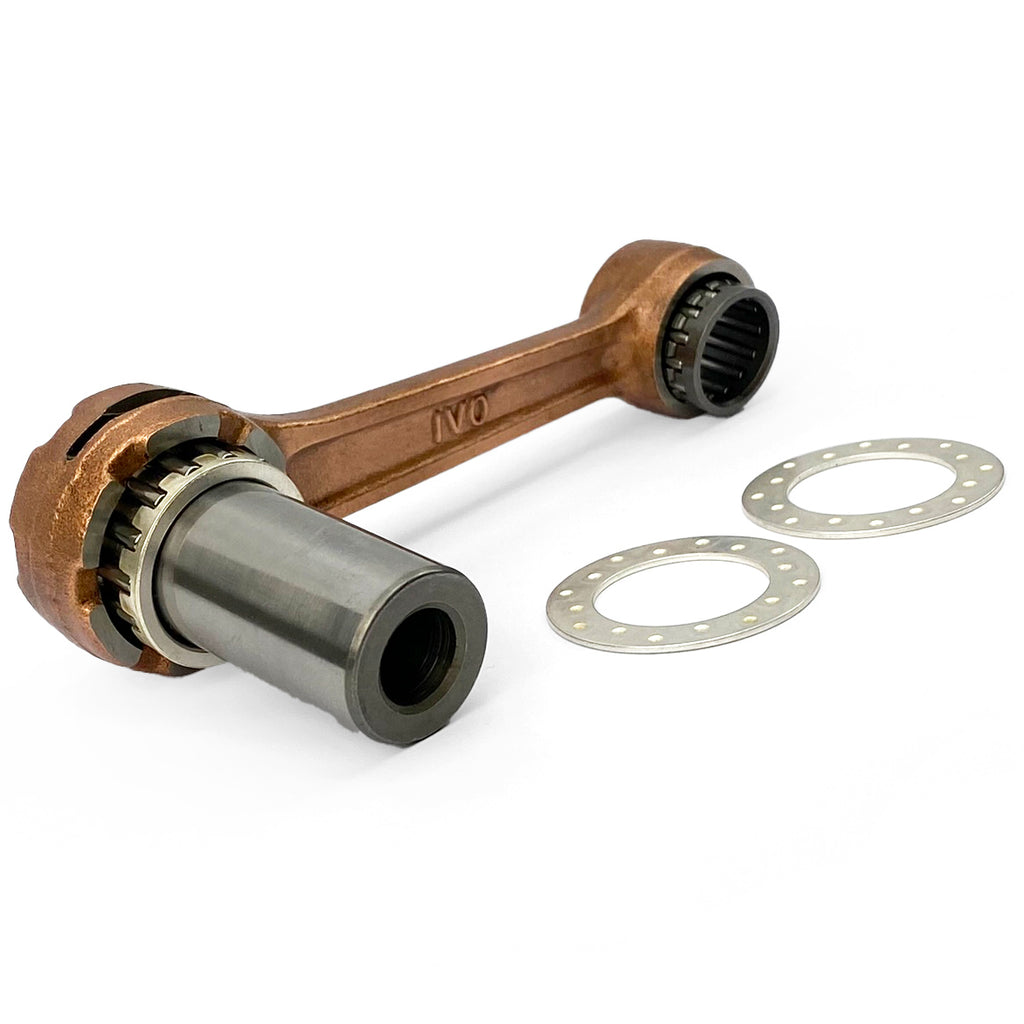

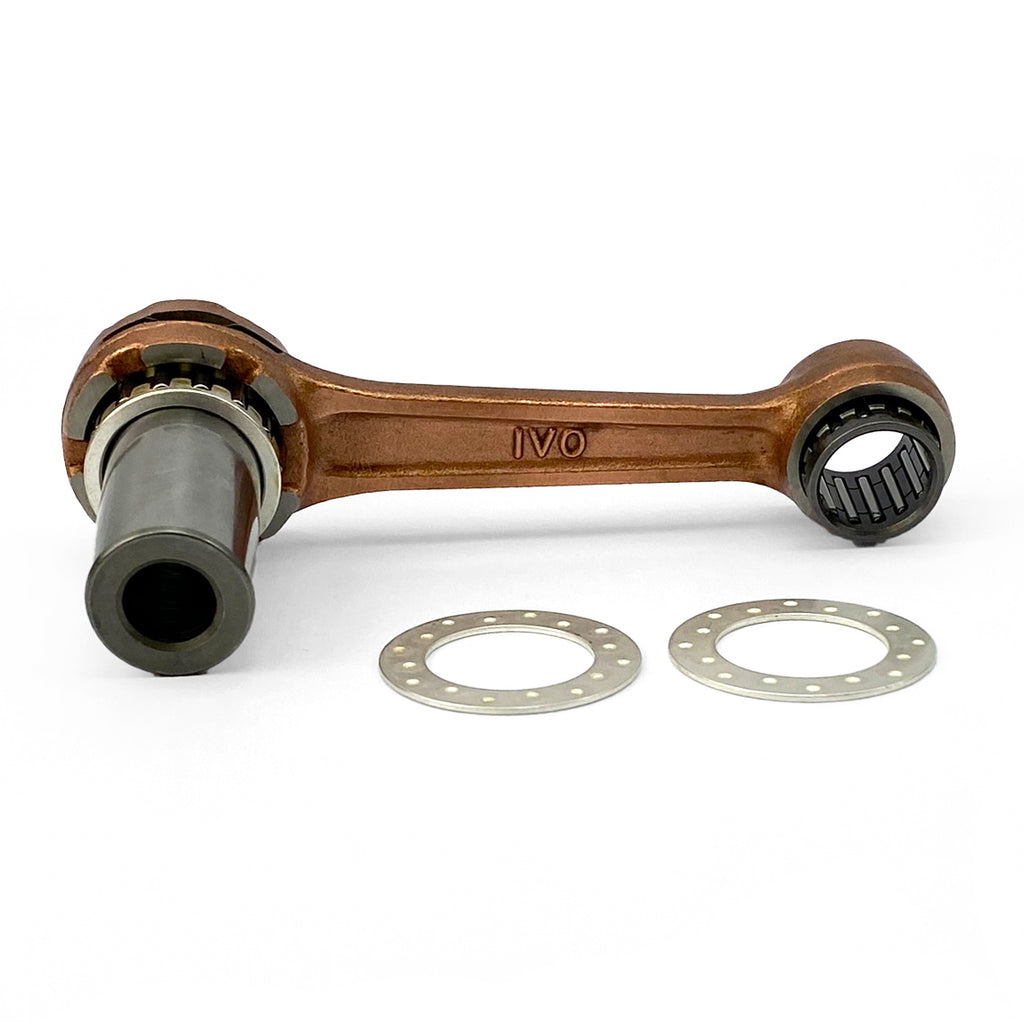

CONNECTING ROD KIT NAMURA RX-40021 DT/RS125, IVO-11651-00-00, 2N4
£60.02 GBP
Taxes included.
CONNECTING CONROD ROD REBUILD KIT
YAMAHA
- RS-125 1975-80
- RX-125 1979-80
- DT125 ALL
- DT125K ALL
- RD135 ALL
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
|
SIZE |
MM |
|
Centre 2 Centre |
100 |
|
Small End Bearing |
16x20x19.5 |
|
Small End Bore Ø |
16 |
|
Small End Width |
20 |
|
Big End Bearing |
22x28x15.8 |
|
Big End Bore Ø |
28 |
|
Big End Width |
16 |
|
Big End Pin Ø |
22 |
|
Big End Pin Length |
54.50 |
|
Washer Thickness |
22x34x1 |
SIZE mm. A = 100, B = 16, C = 22, D = 16, E = 16, F = 54.5
Cross reference numbers ONLY.
RY-2018 IVO-11651-00-00, MX-09094, 1V0-11650-00, 1V0-11651-00, 3M5-11650-20, 4Y2-11650-00,
