CONNECTING ROD KIT KTM SX 85 13-25, ATHENA P40321041 HUSQVARNA TC 85 14-25
  • CONNECTING ROD KIT KTM SX 85 13-25, ATHENA P40321041 HUSQVARNA TC 85 14-25
  • CONNECTING ROD KIT KTM SX 85 13-25, ATHENA P40321041 HUSQVARNA TC 85 14-25
  • CONNECTING ROD KIT KTM SX 85 13-25, ATHENA P40321041 HUSQVARNA TC 85 14-25
  • CONNECTING ROD KIT KTM SX 85 13-25, ATHENA P40321041 HUSQVARNA TC 85 14-25
CONNECTING ROD KIT KTM SX 85 13-25, ATHENA P40321041 HUSQVARNA TC 85 14-25

CONNECTING ROD KIT KTM SX 85 13-25, ATHENA P40321041 HUSQVARNA TC 85 14-25

£112.54 GBP
Taxes included. Shipping calculated at checkout.

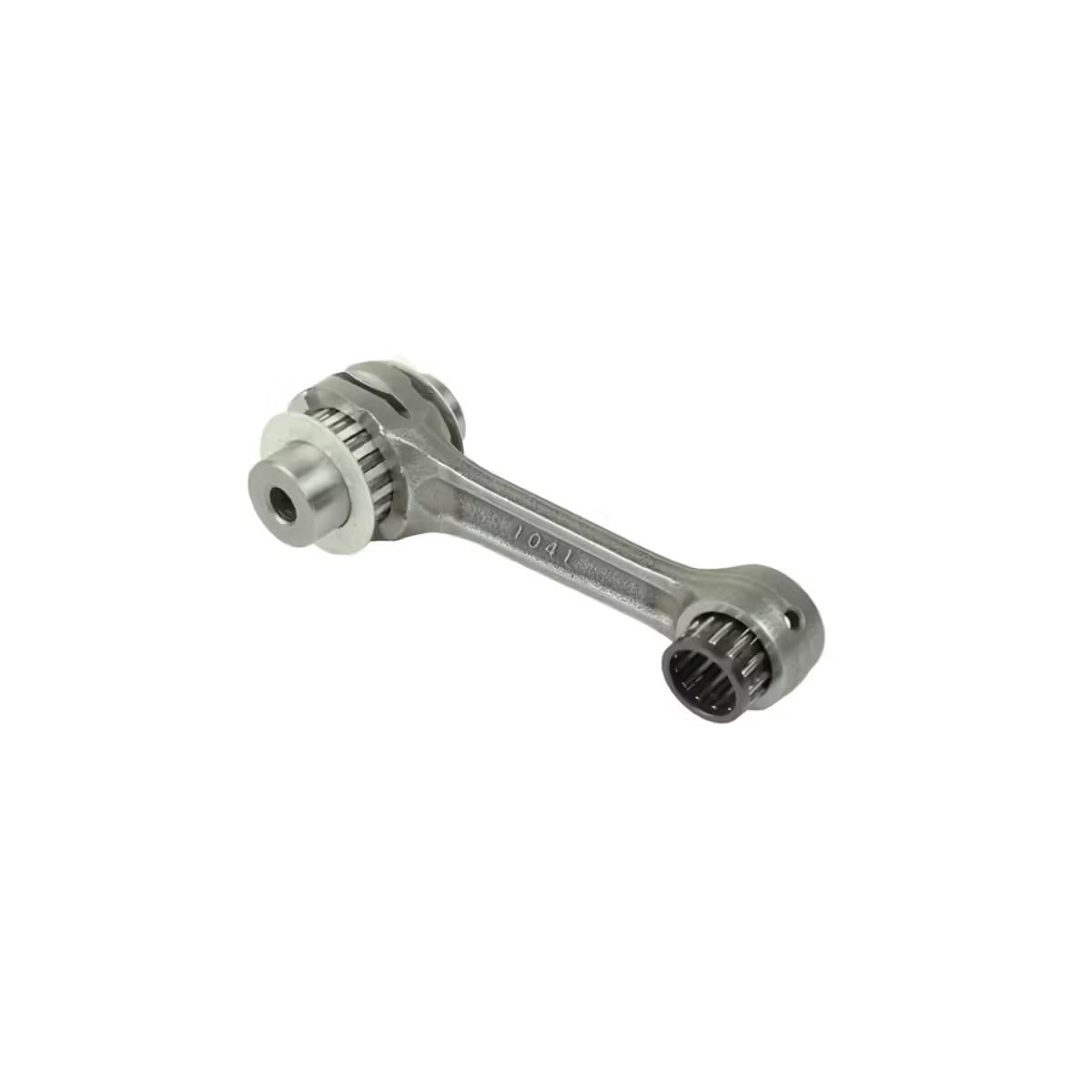

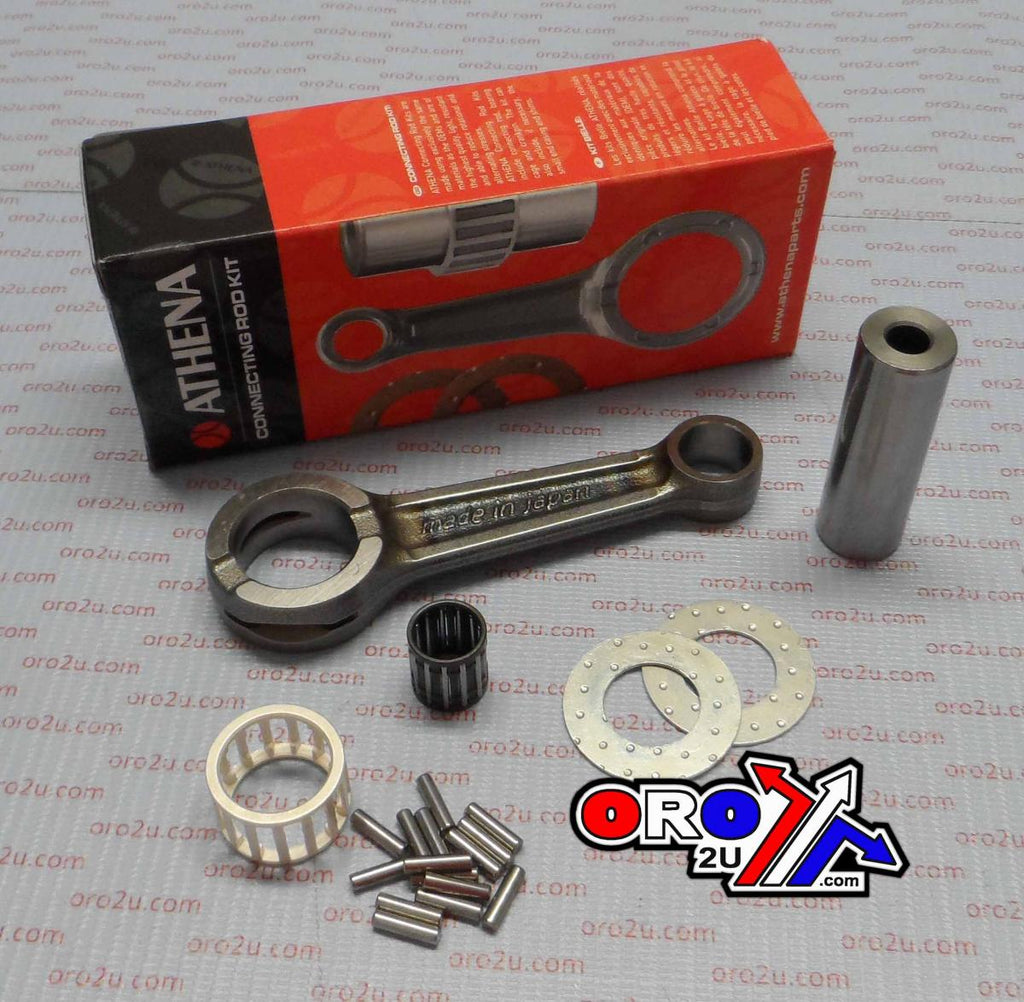

ATHENA Connecting Rod Offroad Kit - P40321041

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

  • Big End Bore (mm) 26.00
  • Big End Pin Diameter (mm) 20.00
  • Big End Width (mm) 15.00
  • Center To Center (mm) 96.00
  • Net Weight (Kg) 0.28
  • Piston Pin Diameter (mm) 18.00
  • Small End Width (mm) 14.00
  • Washer Thickness (mm) 1.00

Vehicle compatibility

GAS GAS MC 85 cc 2021/2025
HUSQVARNA TC Ktm engine 85 cc 2014/2025
KTM SX 85 cc 2013/2025

Partner Cross Reference code

  • PSYCHIC MX-09105
  • HOTRODS 8157
  • PROX 03.6113
  • WOSSNER P2065

Part No. 56-963.ATH (oro2u.com)
