CONNECTING ROD KIT KTM SMR/SX/SX-F 450 07-12, ATHENA P40321044
£191.31 GBP
Taxes included.

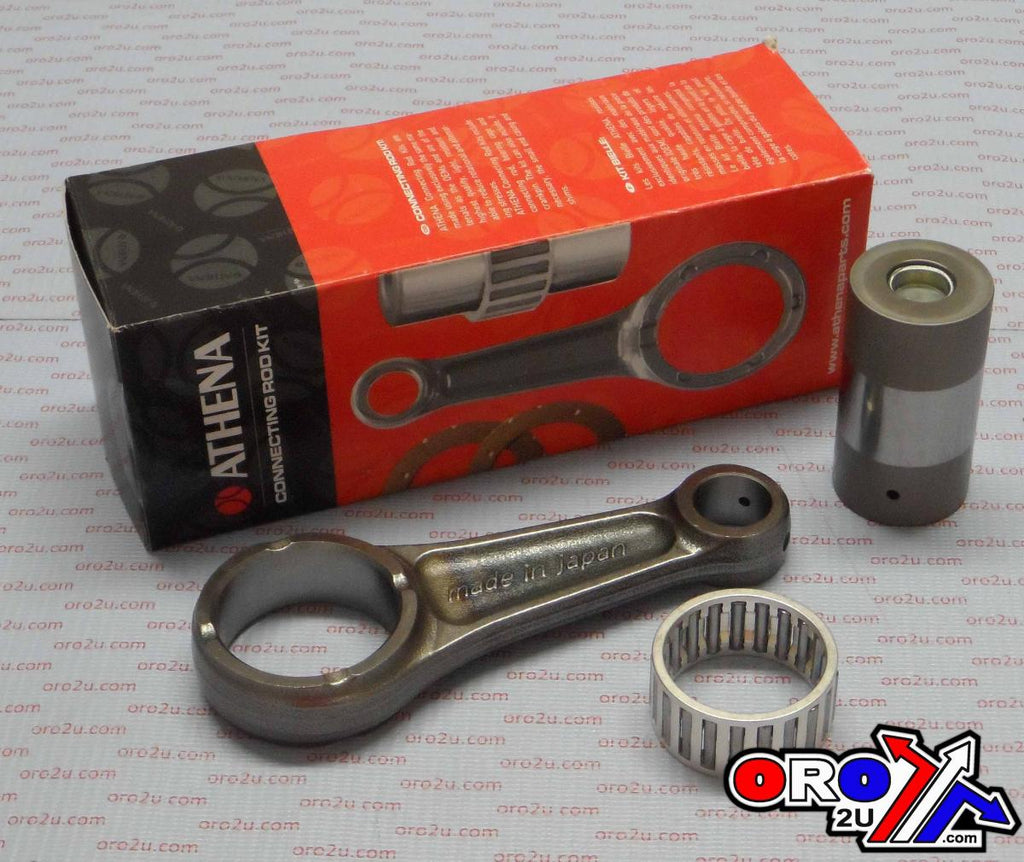

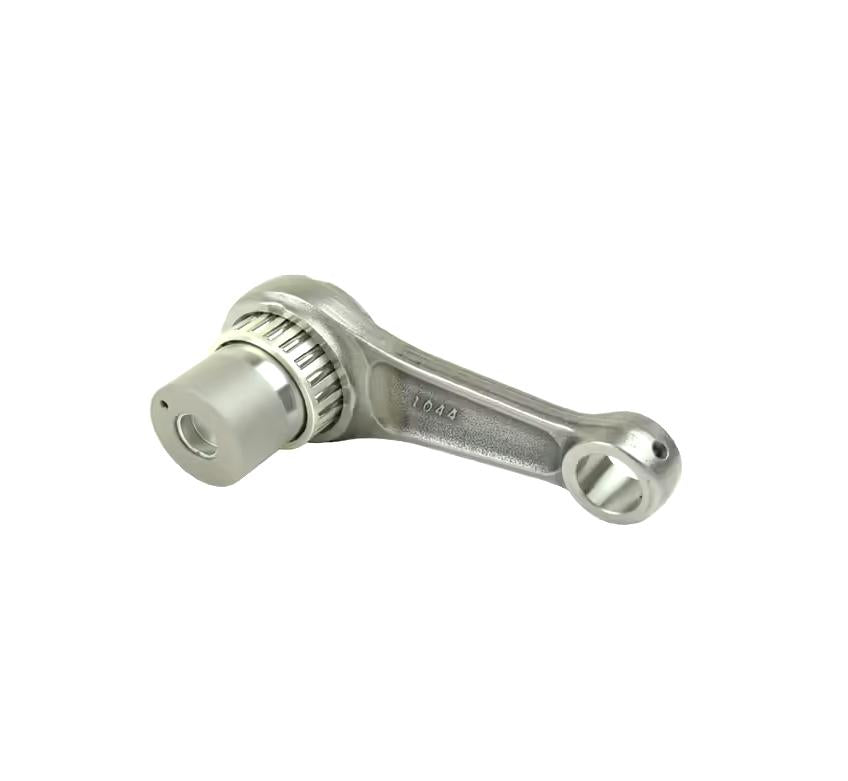

ATHENA Connecting Rod Offroad Kit - P40321044
Description
Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
Technical features
- Big End Bore (mm) 42.00
- Big End Pin Diameter (mm) 35.00
- Big End Width (mm) 20.00
- Center To Center (mm) 107.40
- Net Weight (Kg) 0.78
- Piston Pin Diameter (mm) 19.00
- Small End Width (mm) 17.00
Partner Cross Reference code
- 77330015144
- PROX 03.6427
- WOSSNER P4017
- HOTRODS 8664
- 77330015244
Vehicle compatibility
- KTM SMR 450 cc 2008/2012
- KTM SX 450 cc 2009/2010
- KTM SX-F 450 cc 2007/2012
Part No. 56-861.ATH (oro2u.com)
