CONNECTING ROD KIT CR125 85-87, WOSSNER P2041, 12161-01B00
£132.95 GBP
Taxes included.
HONDA
CR125 1985-1987,
WOSSNER P2041
Wossners forged high performance connecting rods provide the highest quality for maximum performance and reliability.
The connecting rods are made of the best material which is CNC machined to remove all surface imperfections. The rods are then machined to final size and has then been shot- peened to achieve the ultimate in strength and durability. Made in Germany.

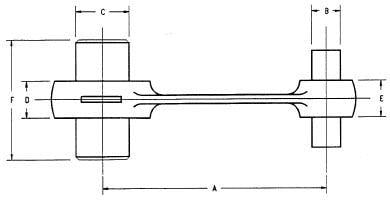

SIZE: Centers 104mm, Big end dia 28.00mm, Big end width 16.00mm, Small end dia 18mm, Small end Width 16mm,
|
SIZE | MM |
| Centre 2 Centre | 104 |
| Small End Bearing | 14x18x19.8 |
| Small End Bore Ø | 18 |
| Small End Width | 16 |
| Big End Bearing | 20x28x14 |
| Big End Bore Ø | 28 |
| Big End Width | 16 |
| Big End Pin Ø | |
| Big End Pin Length | |
| Washer Thickness |
Needle bearing. N1008. SMALL END 14x18x19.8mm
- Manufactured to exacting standards for total confidence.
- Meets or exceeds OEM quality.
- Direct oem replacement.

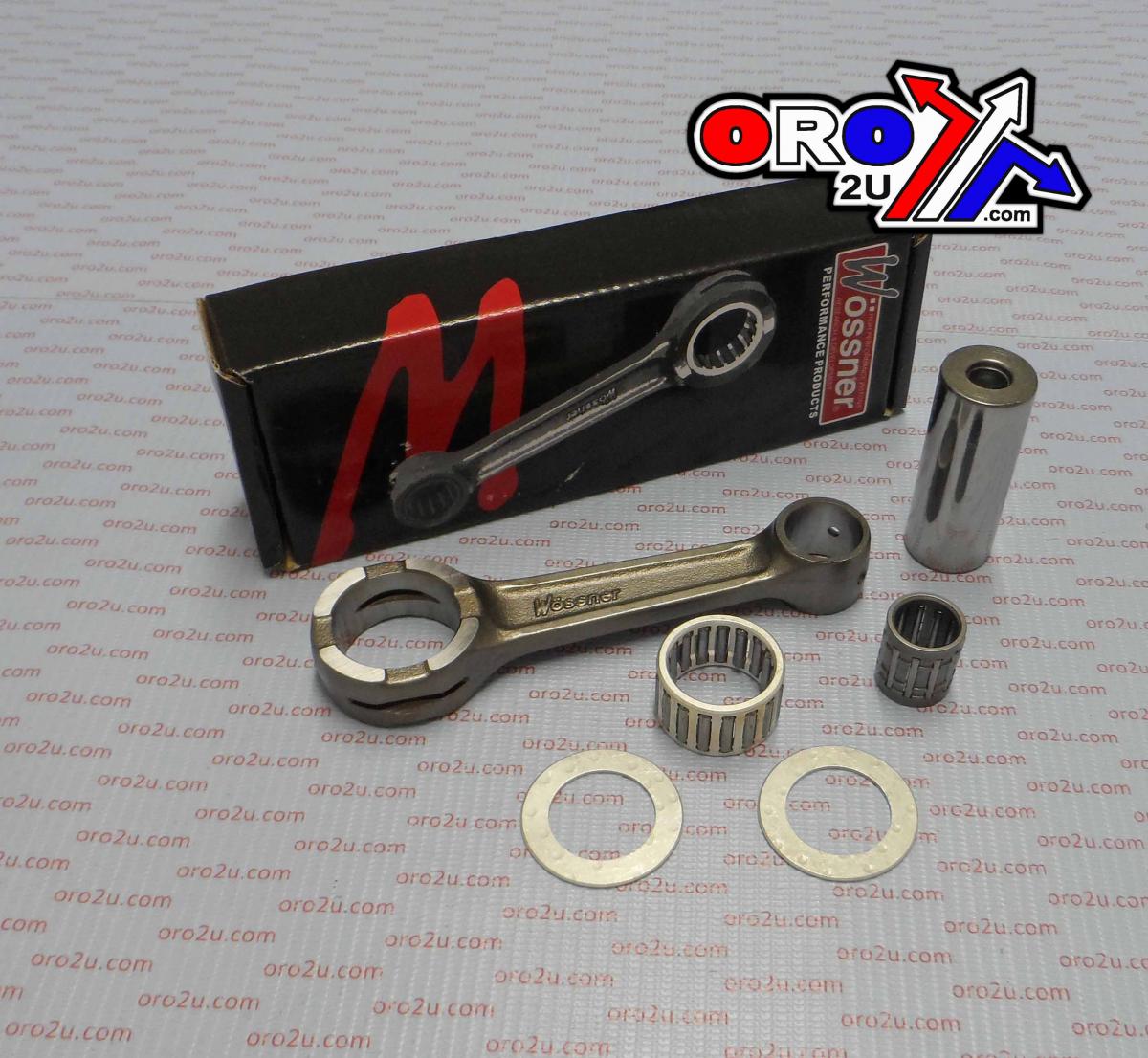

- Please see image before ordering to avoid mistakes.
- Best value for money.
- WOSSNER products are a high quality replacement part and carries our guarantee of your satisfaction.
Part No. 56-2110.WO (oro2u.com)
Cross reference numbers.
BEARING, PISTON PIN 09263-14012 09263-14024
CRANKSHAFT ASSY Includes 12200-01B01
ROD, CONNECTING 12161-01B00
WASHER 09160-22010
PIN, CRANK 12211-14501 12211-27C00
BEARING 09263-22034-0C0 09263-22060
