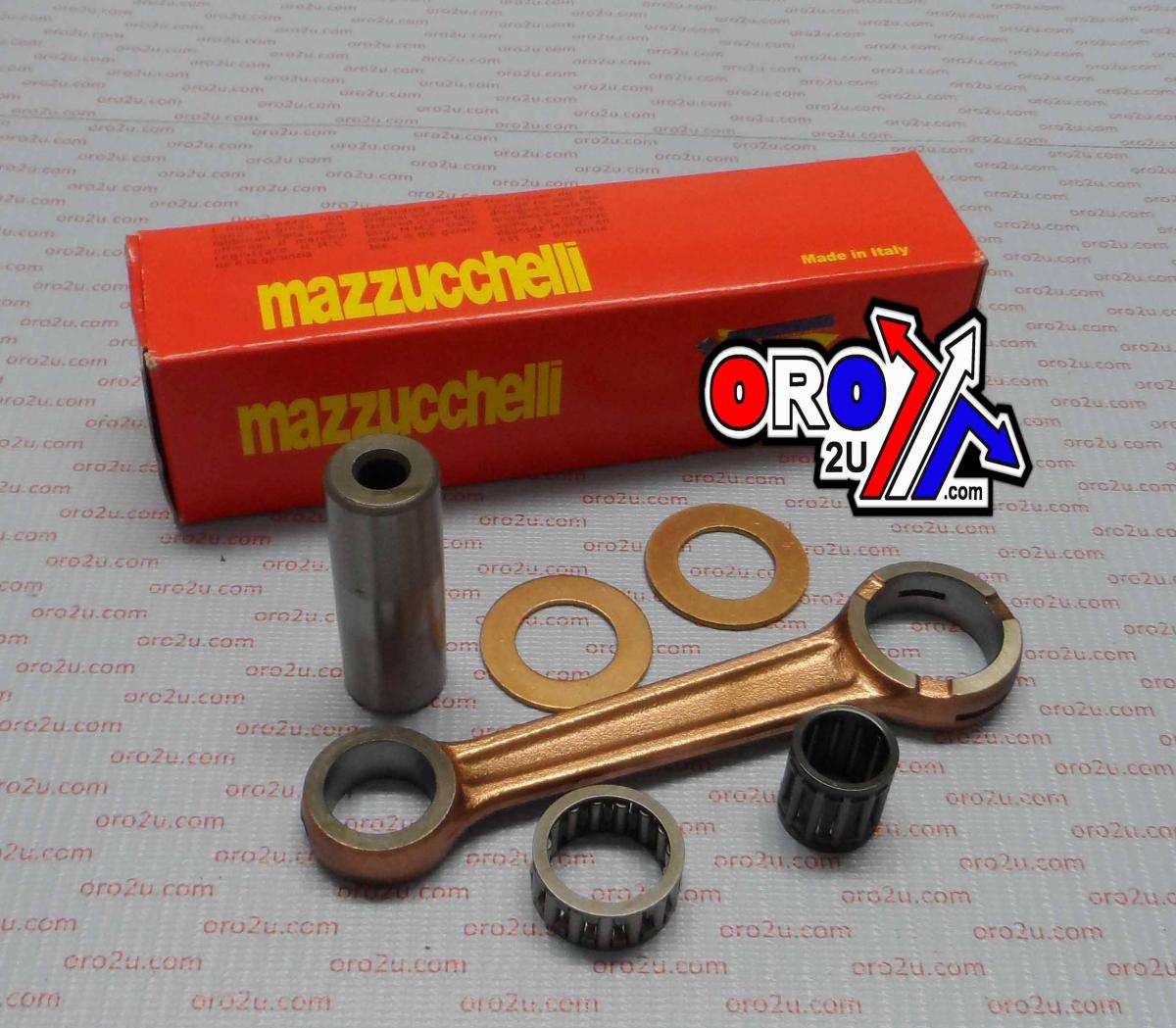

CONNECTING ROD KIT CAGIVA, 125/190 1983-1984 MX / ENDURO, BCO0608A
£113.91 GBP
Taxes included.
Cagiva
125/190 1983-1984 MX / ENDURO C9
CONNECTING ROD MAZZUCHELLI BCO0608A

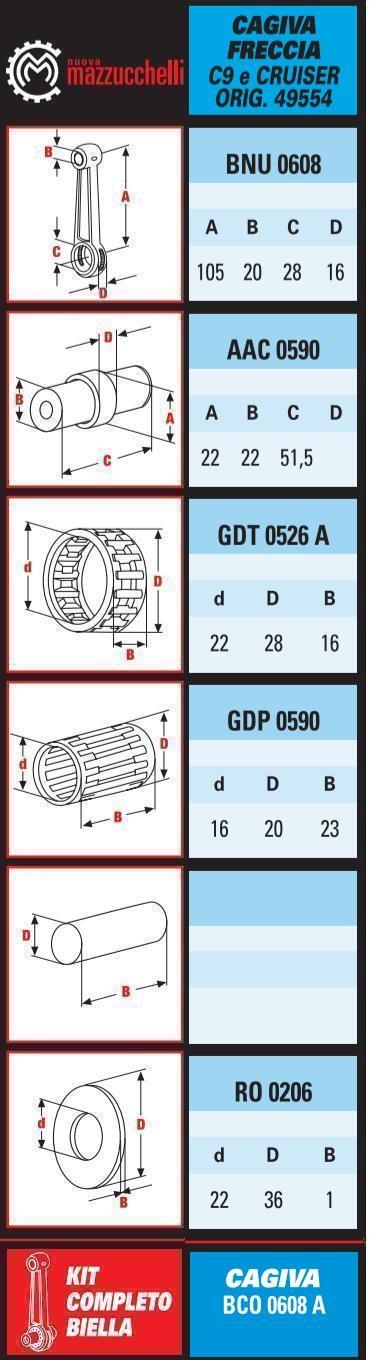

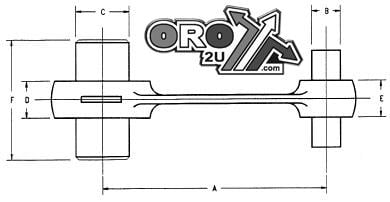

SEE IMAGE FOR KEY SIZE. A 105mm, B 16mm, C 22mm, D 16mm, E ***mm, F 51.5mm
.
|
SIZE | MM |
| Centre 2 Centre | 105 |
| Small End Bearing | 16x20x23 |
| Small End Bore Ø | 20 |
| Small End Width | 16 |
| Big End Bearing | 22x28x16 |
| Big End Bore Ø | 28 |
| Big End Width | 16 |
| Big End Pin Ø | 22 |
| Big End Pin Length | 51.5 |
| Washer Thickness | 22x36x1 |
.
Part No. 56-909 (oro2u.com)
