CONNECTING ROD KIT 87-95 RM250, HOTROD 8105 SUZUKI RMX250
£122.76 GBP
Taxes included.
Connecting rod kit for Suzuki RM 250 (1986–1995) and Suzuki RMX 250 (1989–1998) models. This premium kit is engineered for high-performance applications and ensures durability under demanding conditions.
Features:
- Manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc for exceptional strength.
- Strategically designed with side scalloping and vent slots to minimize bearing race distortion at high RPMs.
- Double-forged rods ensure improved grain flow and dimensional consistency.
- Shot-peened and double-honed for maximum durability under heavy loads.
- Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
- Thrust washers and crank pin bearings are silver-coated for improved lubricity and wear resistance.

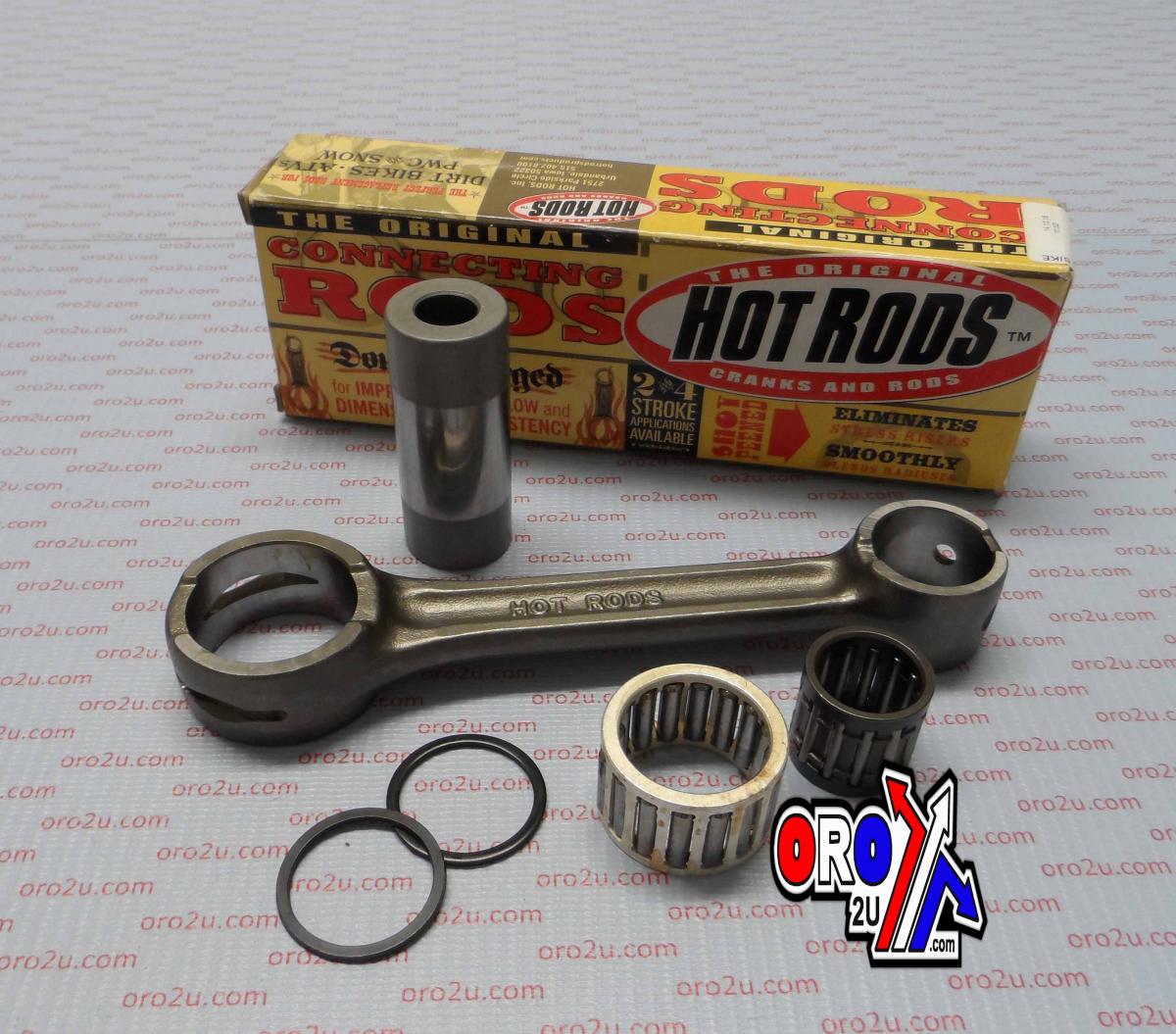

- Complete kit includes connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
Specifications:
- Centre to Centre: 128.00 mm
- Big End Bore Ø: 32.00 mm
- Big End Width: Not specified
- Pin Diameter: 24.00 mm
- Pin Length: 57.70 mm
- Small End Bore Ø: 23.00 mm
- Small End Width: Not specified
- Washer Thickness: Not specified
Cross-Reference OEM Part Numbers:
HOTRODS 8105, SUZUKI: 12161-00B00, 12161-05D00, 12161-28C30
Vehicle Fitment:
- Suzuki RM 250 (1986–1995)
- Suzuki RMX 250 (1989–1998)
Part Number: 56-988.HR
