CONNECTING ROD KIT 05-21 YAMAHA YZ 125 ATHENA P40321017
£110.28 GBP
Taxes included.

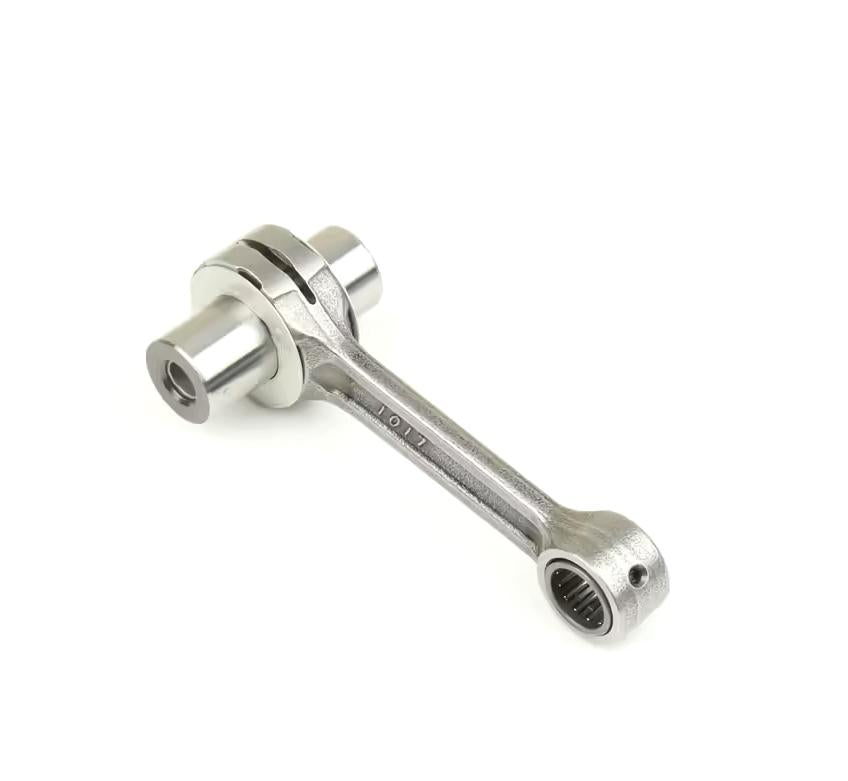

ATHENA Connecting Rod Offroad Kit - P40321017
Athena’s connecting rods are crafted utilizing state-of-the-art materials and treatments to provide optimal performance for one of the most heavily stressed engine components. The manufacturing processes they undergo enable them to achieve an exceptional rigidity-weight ratio and enhanced stress resistance, all while maintaining a highly competitive price point.
Technical Features:
- Big End Bore (mm): 29.00
- Big End Pin Diameter (mm): 22.00
- Big End Width (mm): 17.00
- Centre To Centre (mm): 102.00
- Net Weight (Kg): 0.32
- Piston Pin Diameter (mm): 19.00
- Small End Width (mm): 16.00
- Washer Thickness (mm): 1.00
Compatibility:
- YAMAHA YZ125 cc 2005/2021
Part No.: 56-159.ATH
