Connecting Rod KFX700, Hot Rods 8675 Brute F, Teryx

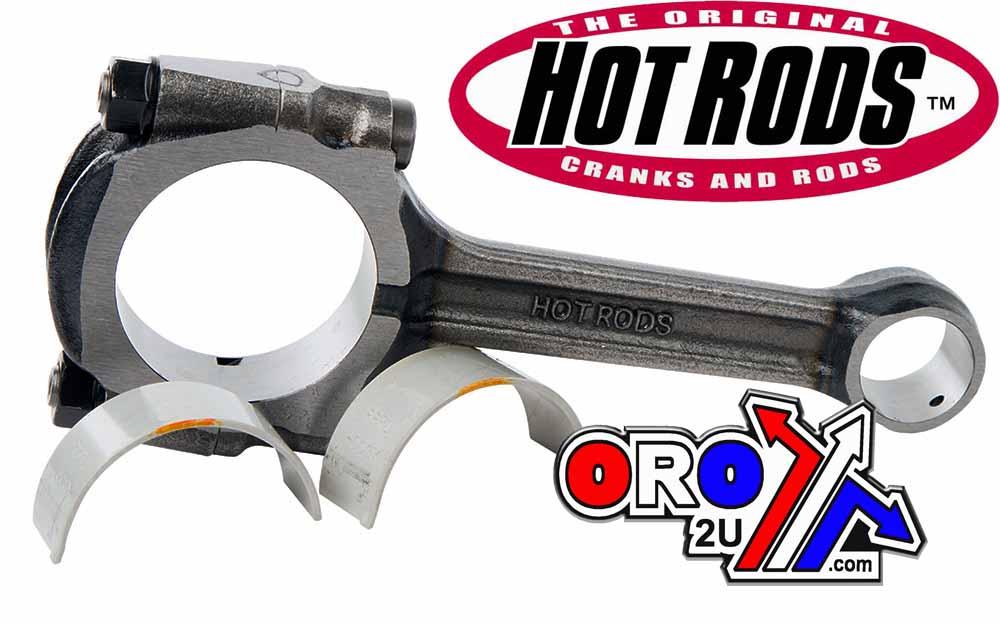

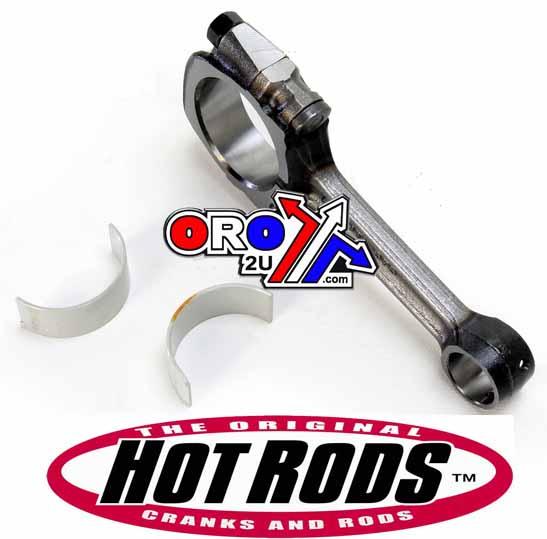

Hot Rods Connecting Rod Kit - 8675

This connecting rod kit is a high-performance, OE replacement designed to handle the demands of high-rpm operation. Manufactured from durable ASTM 4115 steel and case-hardened for longevity, the kit features advanced engineering for reliability and efficiency. It is sold as a complete assembly, including all necessary components for installation and performance enhancement.

Features:

• Made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 RC.
• Incorporates caged needle roller bearings for longevity at high RPMs.
• Big-end design features side scalloping and vent slots to reduce bearing race distortion at high speeds.
• Shot-peened for stress elimination and durability.
• Double honing ensures an ultra-round bearing surface for improved reliability.
• Small ends are double-drilled for enhanced lubrication and cooling.
• Complete assembly includes rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.

Included Items:

• (1) Connecting rod assembly.
• (2) Half bushings.

Cross-Reference OEM Part Numbers:

• KAWASAKI: 13251-1143

Vehicle Fitments:

Kawasaki ATV:

• KVF750 Brute Force: 2005–2016
• KFX700: 2004–2009
• KVF700 Prairie: 2004–2006

Kawasaki UTV:

• KRF750 Teryx 750: 2008–2013
• KRT800 Teryx 800: 2014–2015

Suzuki ATV:

• LT-V700F Twin Peaks: 2004–2005

Part Number:

56-9013.HR
