CONNECTING ROD KFX700, BRONCO AT-09252 BRUTE F, TERYX

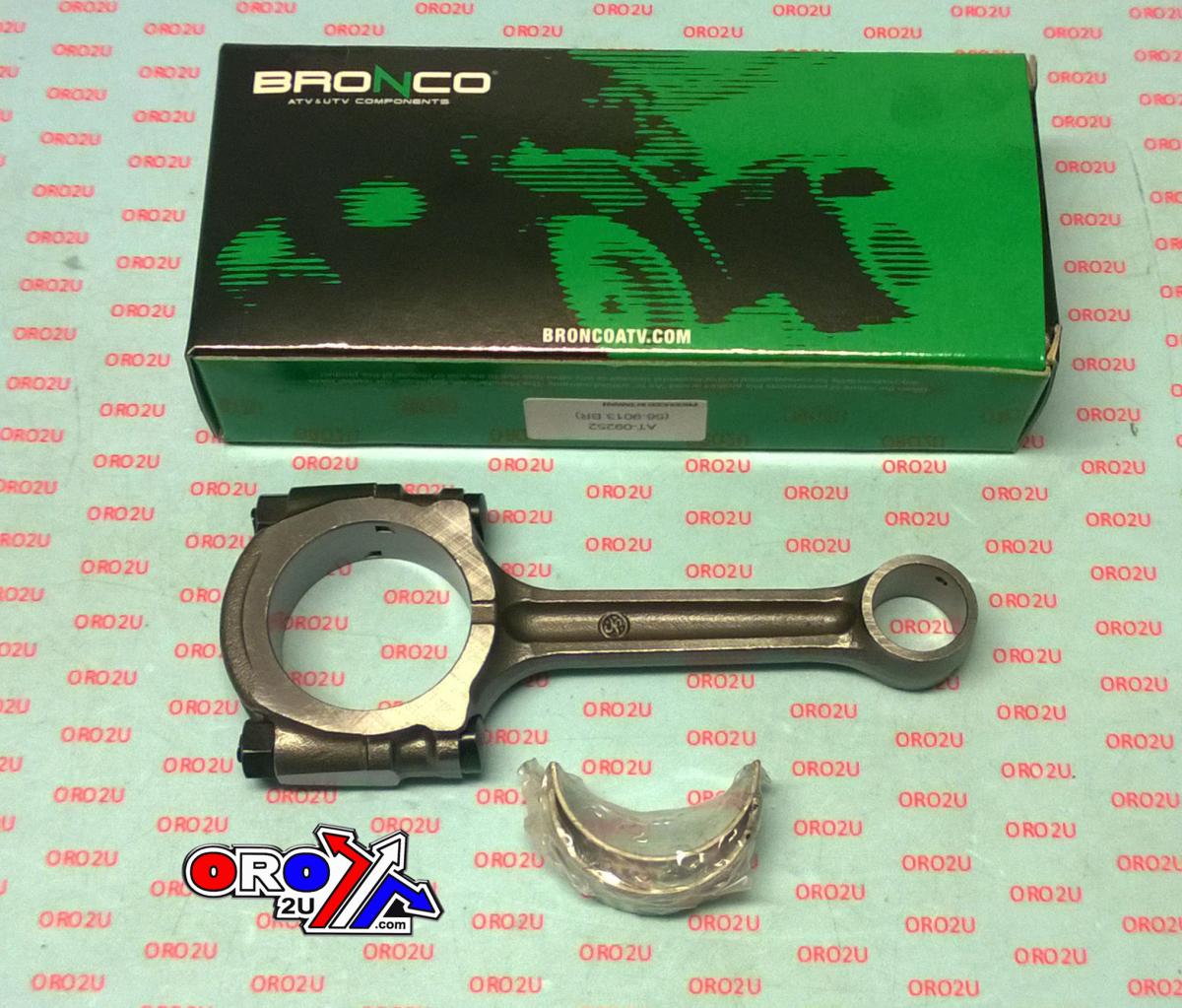

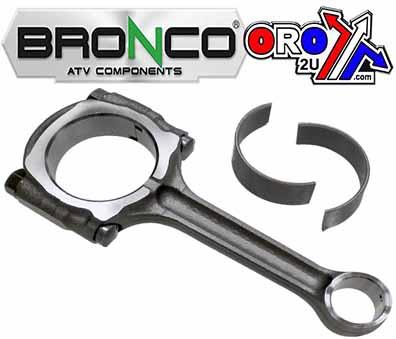

Bronco Heavy-Duty Connecting Rod Rebuild Kit - AT-09252

This heavy-duty connecting rod rebuild kit is designed as an OE replacement, providing superior strength and longevity. Manufactured using certified chrome alloy steel (SNCM220) for durability, the kit includes all components necessary for a complete rod rebuild. Compatible with both aftermarket and OE crankshafts, it ensures high performance and reliability.

Features:

• Heavy-duty OE replacement connecting rod.
• Made from certified chrome alloy steel for superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case-hardened.
• Caged needle roller bearings designed for high RPM longevity.
• Thrust washers made from bronze phosphor and silver coated.
• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if needed).
• Compatible with aftermarket and OE crankshafts.

Specifications:

• Material: SNCM220 (Certified Chrome Alloy Steel).

Dimensions:

• Centre to Centre: 117.70 mm
• Small End Bore Ø: 20 mm
• Small End Width: 18.00 mm
• Big End Bore Ø: 43 mm
• Big End Width: 20.00 mm
• Washer Thickness: 35x55x1

Note: Small end bearing and big end pin are not included.

Cross-Reference OEM Part Numbers:

• Hot Rods 8675
• AT-09252
• KAWASAKI: 13251-1143, 13251-0709, 92139-0765, 92139-0764, 92139-0766

Vehicle Fitments:

Kawasaki ATV:

• KVF700 Prairie: 2004–2006
• KFX700: 2004–2009
• KVF750 Brute Force: 2005–2018

Kawasaki UTV:

• KVF750 Teryx: 2008–2013
• KVF800 Teryx: 2014–2018
• KVF800 Teryx 4: 2014–2018

Suzuki:

• LT-V700F Twin Peaks: 2004–2005

Part Number:

56-9013.BR
