CONNECTING ROD EXC 530R KTM, HOTROD 8692, 78630015144
£190.39 GBP
Taxes included.
High-quality connecting rod kit designed to meet or exceed OEM standards for durability and performance. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, this kit ensures exceptional strength and reliability under demanding conditions. Advanced design features minimize high-rpm bearing race distortion, while precise manufacturing enhances overall performance and longevity.
Features:
- Manufactured from hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc.
- Strategically located side scalloping and vent slots reduce high-rpm bearing race distortion.
- Double-forged construction improves grain flow and maintains dimensional consistency.
- Shot-peened and double-honed rods provide superior strength under heavy loads.
- Double-drilled small ends for enhanced lubrication and cooling of the wrist pin bearing.
- Silver-coated thrust washers and crank pin bearings for improved lubricity.

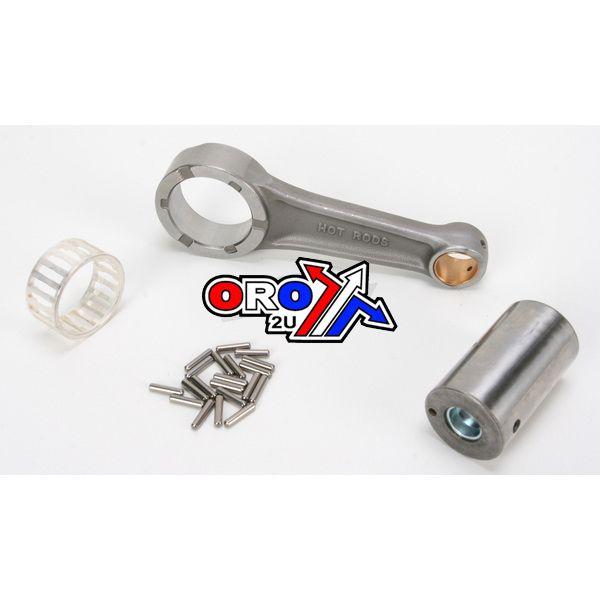

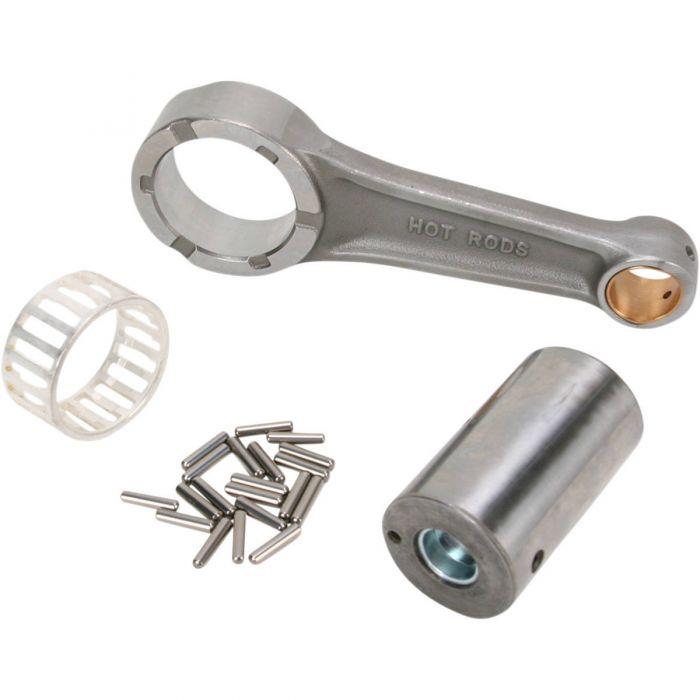

- Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Technical Specifications:
- Big End Bearing (mm): KU 35x42x19.8
- Big End Bore (mm): 42.00
- Big End Width (mm): 19.90
- Center to Center (mm): 120.00
- Pin Diameter (mm): 35.00
- Pin Length (mm): 62.80
- Small End Bearing (mm): Bushing
- Small End Bore (mm): 19.00
Cross-Reference OEM Part Numbers:
78630015144, WOSSNER P4047, HOTROD 8692
Vehicle Compatibility:
- 2011 KTM 530 EXC
- 2010 KTM 530 EXC
- 2009 KTM 530 EXC
- 2011 KTM 530 XC-W Six Days
Part Number: 56-868.HR
