Connecting Rod 98-06 KTM125, Hotrod 8627 KTM125 SX/EXC

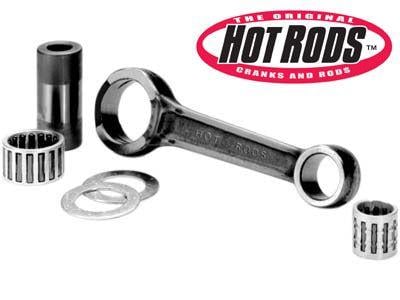

The Hot Rods connecting rod kit (Part No. 8627) is a high-quality replacement for KTM 125 SX and 125 EXC models. Designed for durability and performance, this kit meets the demands of high-RPM applications, providing reliability under heavy loads.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum strength and durability.
• Advanced design with side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for added strength and reliability.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for increased lubricity.

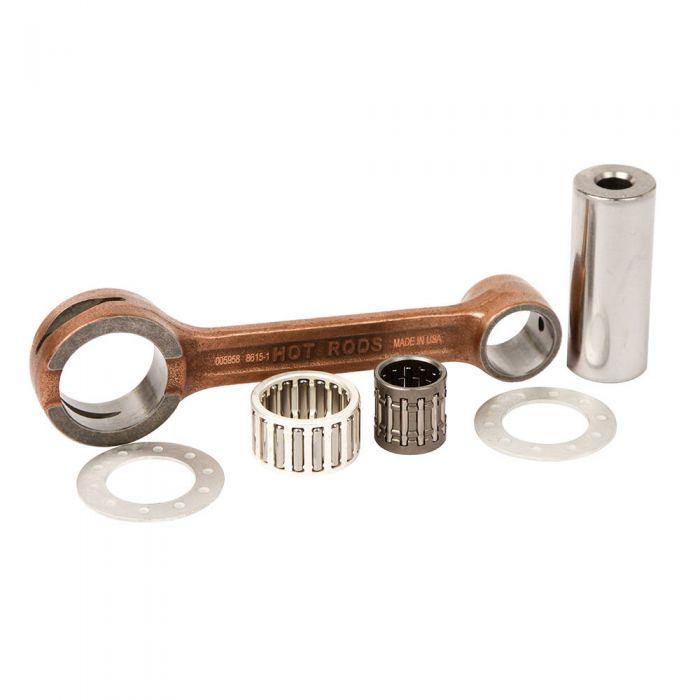

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

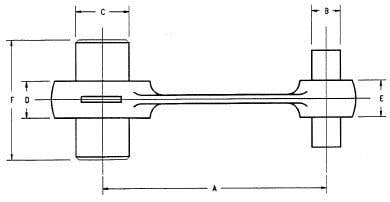

Specifications (Dimensions in mm):

• A (Center-to-Center Length): 110.00
• B (Big End Bore Diameter): 28.00
• C (Big End Width): N/A
• D (Small End Bore Diameter): 19.00
• E (Small End Width): N/A
• F (Pin Length): 54.80
• Washer Thickness: 1.00

Vehicle Compatibility:

KTM 125 SX:

• 1998–2006

KTM 125 EXC:

• 1998–2006

Cross-reference OEM Part Numbers:

• Hot Rods: 8627
• KTM: 50330015000, 50330015100
• Wossner: P2011

Part Number:
56-112.HR
