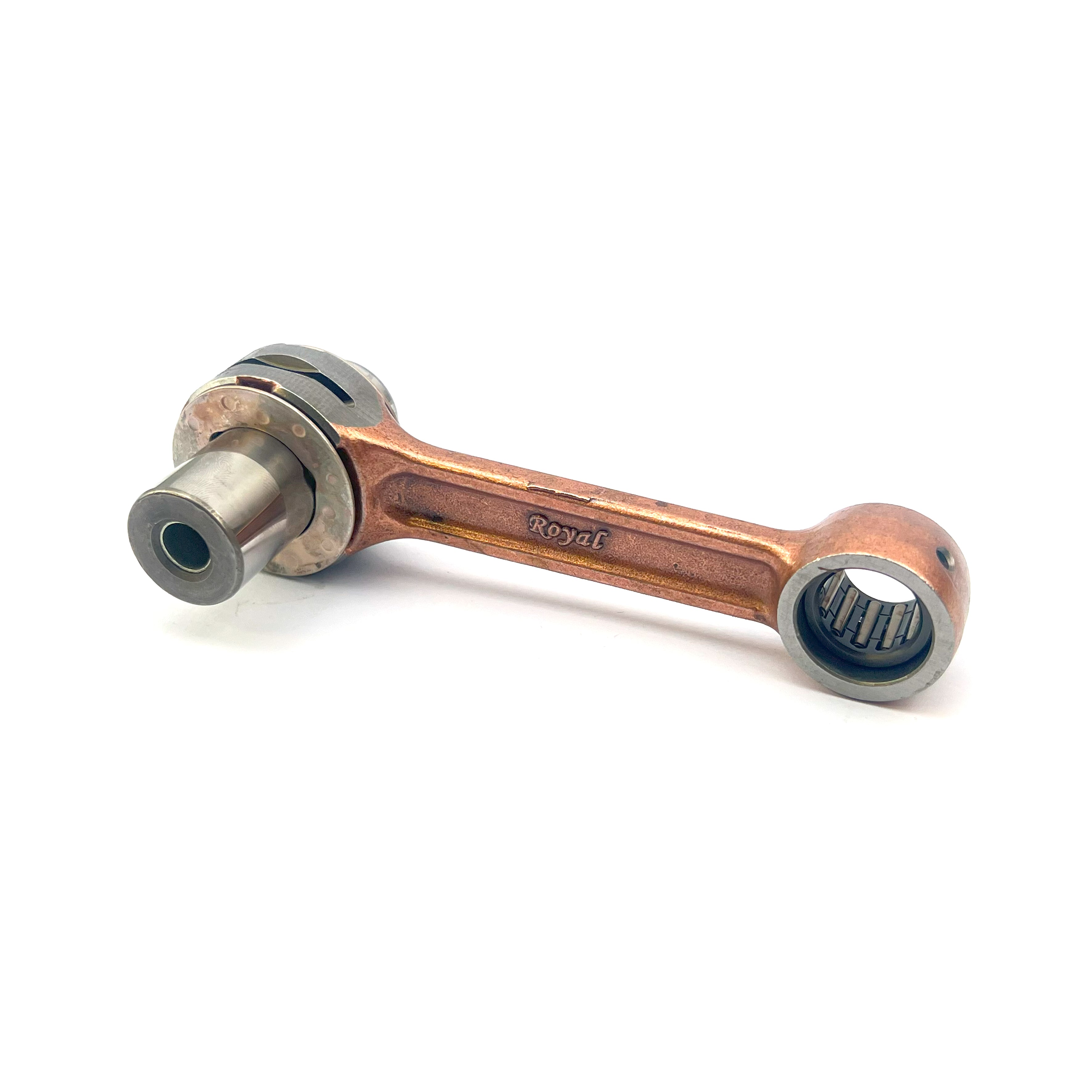

CONNECTING ROD 97-00 YZ125, PSYCHIC MX-09078 4PE-11651-02-00
£58.25 GBP
Taxes included.
YAMAHA
YZ125 1997-2000,
CONNECTING CONROD ROD REBUILD KIT PYSCHIC MX-09078
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Big End Bearing (mm): 22x29x16.8
Big End Bore (mm): 29.00
Big End Width (mm): 16.95
Center To Center (mm): 105.00
Pin Diameter (mm): 22.00
Pin Length (mm): 54.30
Small End Bearing (mm): 15x20x17.8
Small End Bore (mm): 20.00
Small End Width (mm): 16.95
Part No. 56-153.DR (oro2u.com)
Cross reference numbers ONLY.
HOT RODS CR174 8143, 4PE-11651-02-00, WOSSNER P2019, WISECO WPR174, PSYCHIC MX-09078, ATHENA P40321015,
