Connecting Rod 94-97 KX125, Psychic, MX-09030, 56-886.Wi

High-performance connecting rod rebuild kit by Psychic, designed as a durable OE replacement for Kawasaki KX125 models. Manufactured using certified chrome alloy steel for exceptional strength and reliability, this kit provides everything needed for a complete rod rebuild.

Features:

• Heavy-duty connecting rods designed for superior durability.
• Constructed from certified chrome alloy steel for enhanced strength.
• Crankpins made from hot-rolled ASTM steel and case-hardened for durability.
• Equipped with advanced caged needle roller bearings for high RPM longevity.
• Thrust washers crafted from bronze phosphor with a silver coating.

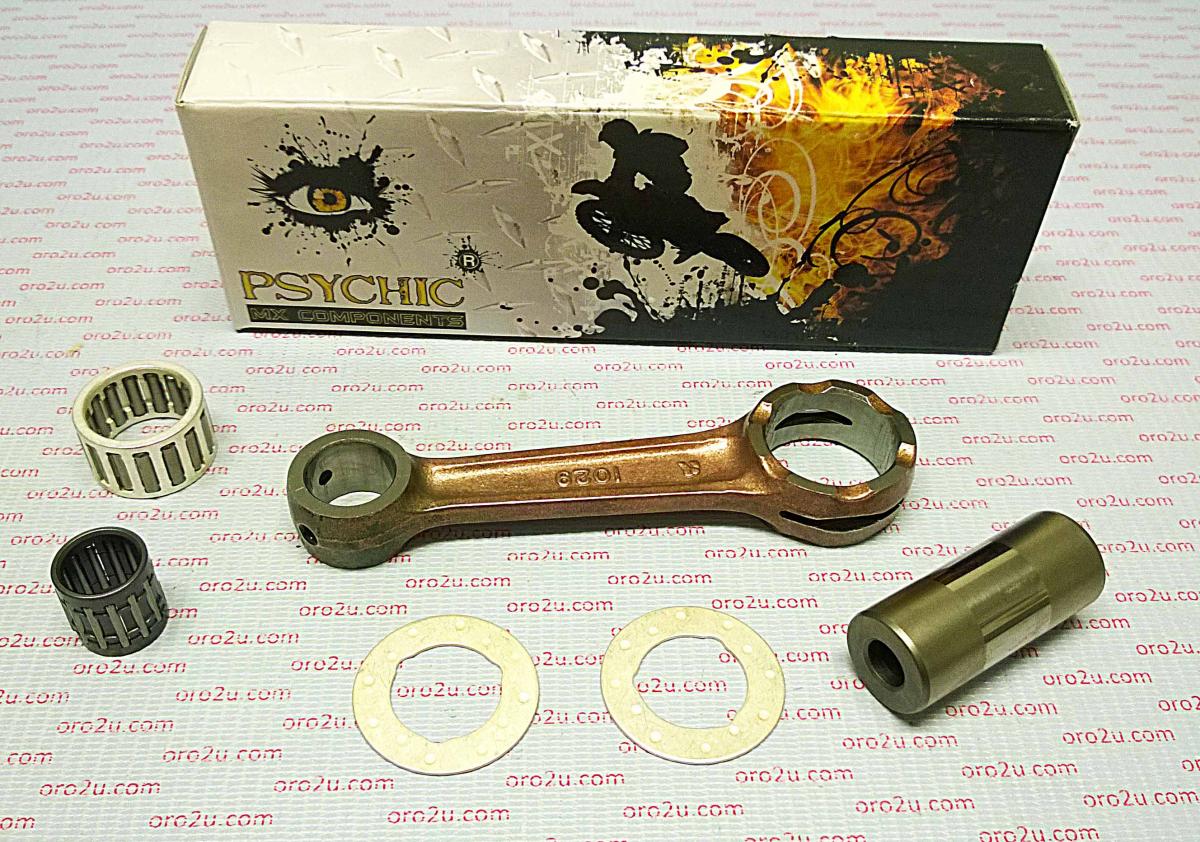

• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Fully compatible with aftermarket and OE crankshafts.
• Manufactured using high-quality SNCM220 material.

Specifications:

• Centre to Centre: 106 mm
• Small End Bearing: 15x19x19.9 mm
• Small End Bore Ø: 19 mm
• Small End Width: 17 mm
• Big End Bearing: 22x29x16.8 mm
• Big End Bore Ø: 29 mm
• Big End Width: 17 mm
• Big End Pin Ø: 22 mm
• Big End Pin Length: 51.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
13032-1196, 13032-1219, MX-09030, WISECO WPR132, HOT RODS 8163

Compatibility:

• 1997 Kawasaki KX125
• 1996 Kawasaki KX125
• 1995 Kawasaki KX125
• 1994 Kawasaki KX125

Part Number:
MX-09030
