CONNECTING ROD 87-06 YFS200, HOTROD 8144 YAMAHA ATV
£117.75 GBP
Taxes included.
This high-quality connecting rod kit is designed for Yamaha Blaster 200 models, offering reliable performance and exceptional durability. Engineered with precision and crafted from premium materials, it is ideal for demanding applications.
Features:
- Premium Material: Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength and durability.
- Advanced Design: Features side scalloping and vent slots to reduce high RPM bearing race distortion.
- Double-Forged Rods: Improves grain flow and dimensional consistency for superior reliability.
- Shot-Peened and Double-Honed: Enhances strength under heavy loads.
- Improved Lubrication: Double-drilled small ends provide additional lubrication and cooling for the wrist pin bearing, especially for pistons with crowns close to the bearing.
- Silver-Coated Components: Thrust washers and crank pin bearings are coated for increased lubricity.

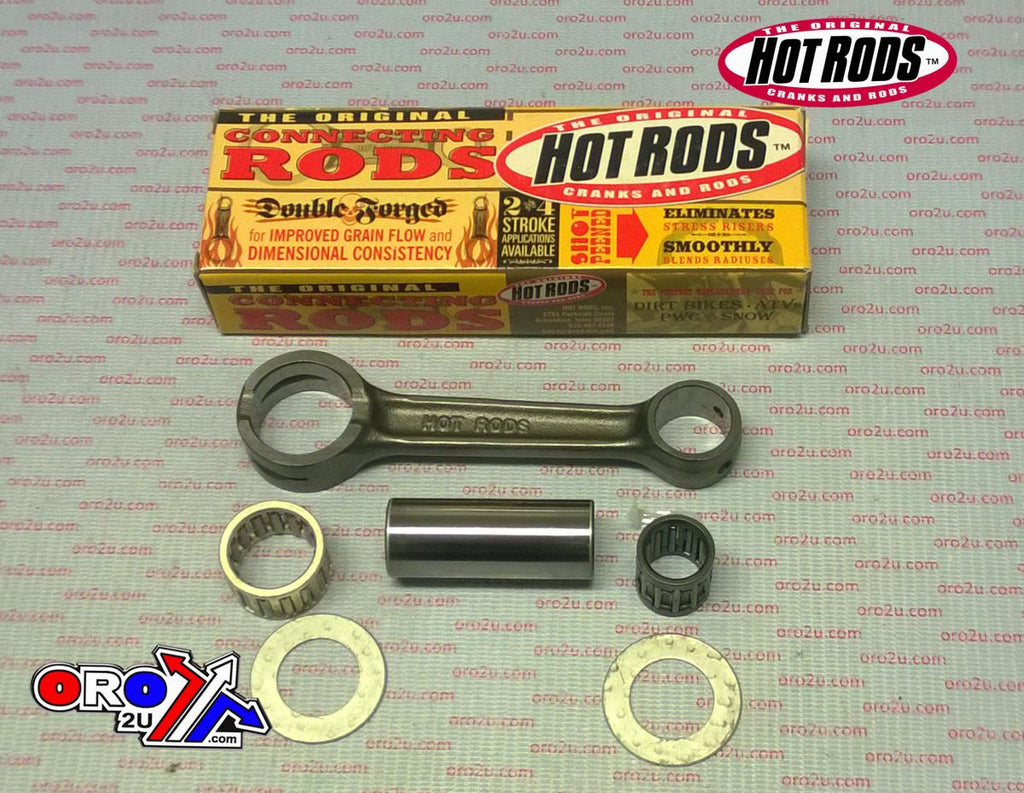

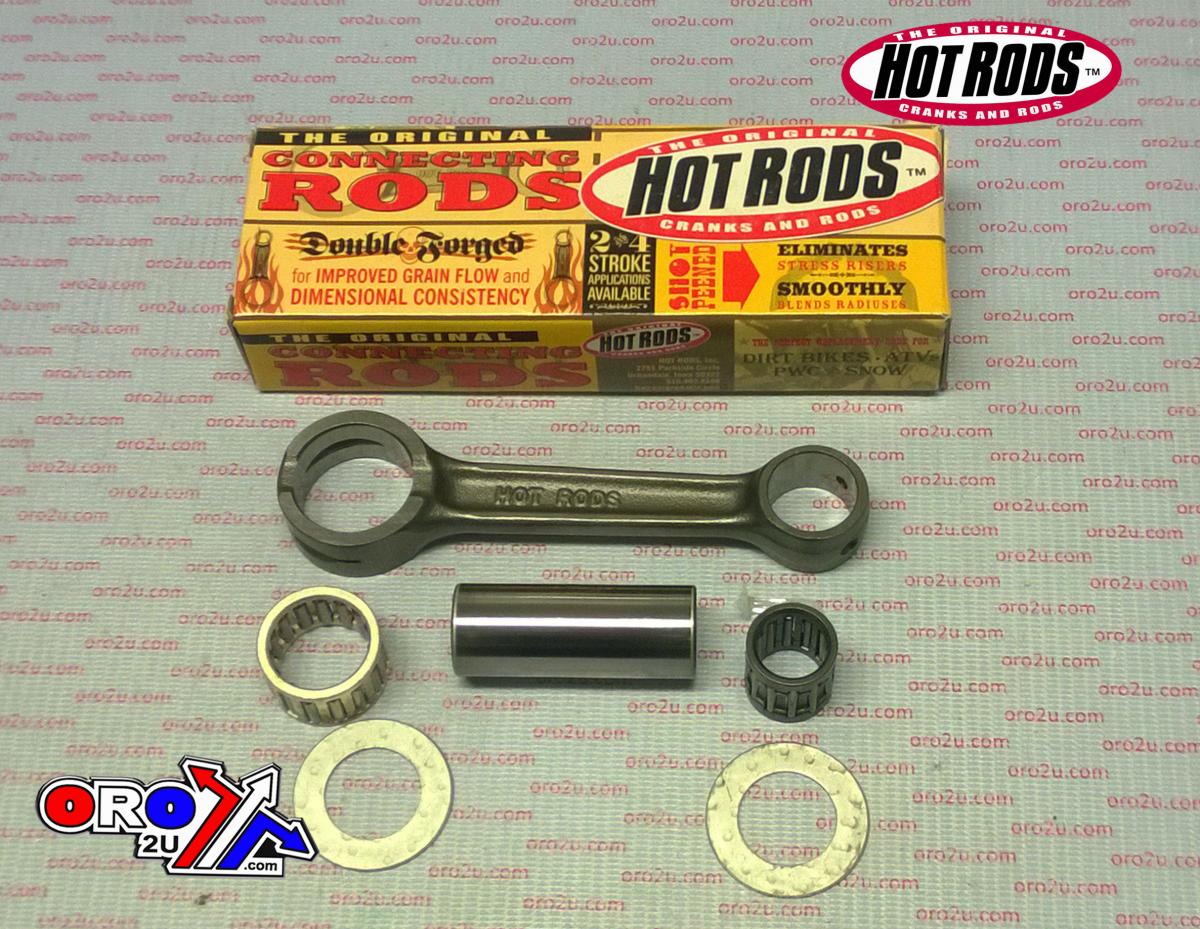

- Complete Kit: Includes connecting rod, crank pin, crank pin bearing, top-end bearing, needle cage bearing, and thrust washers.
Technical Specifications:
Big End Bearing (mm):
- Dimensions: 22x29x17
- Big End Bore: 29.00 mm
- Big End Width: 17.00 mm
- Center to Center: 110.00 mm
Cross-Reference OEM Part Numbers:
- Yamaha: 43G-11651-00-00
- Others: Vesrah VA-2009, Wossner P203, Wiseco WPR170, Psychic AT-97307
Vehicle Fitments:
Yamaha:
- Blaster 200 (YFS200): 1988–2006 Special Edition Models:2006 YFS200SE Blaster Special Edition
Part Number: 8144
